Chapter 8 Option CardsMH300
8-23

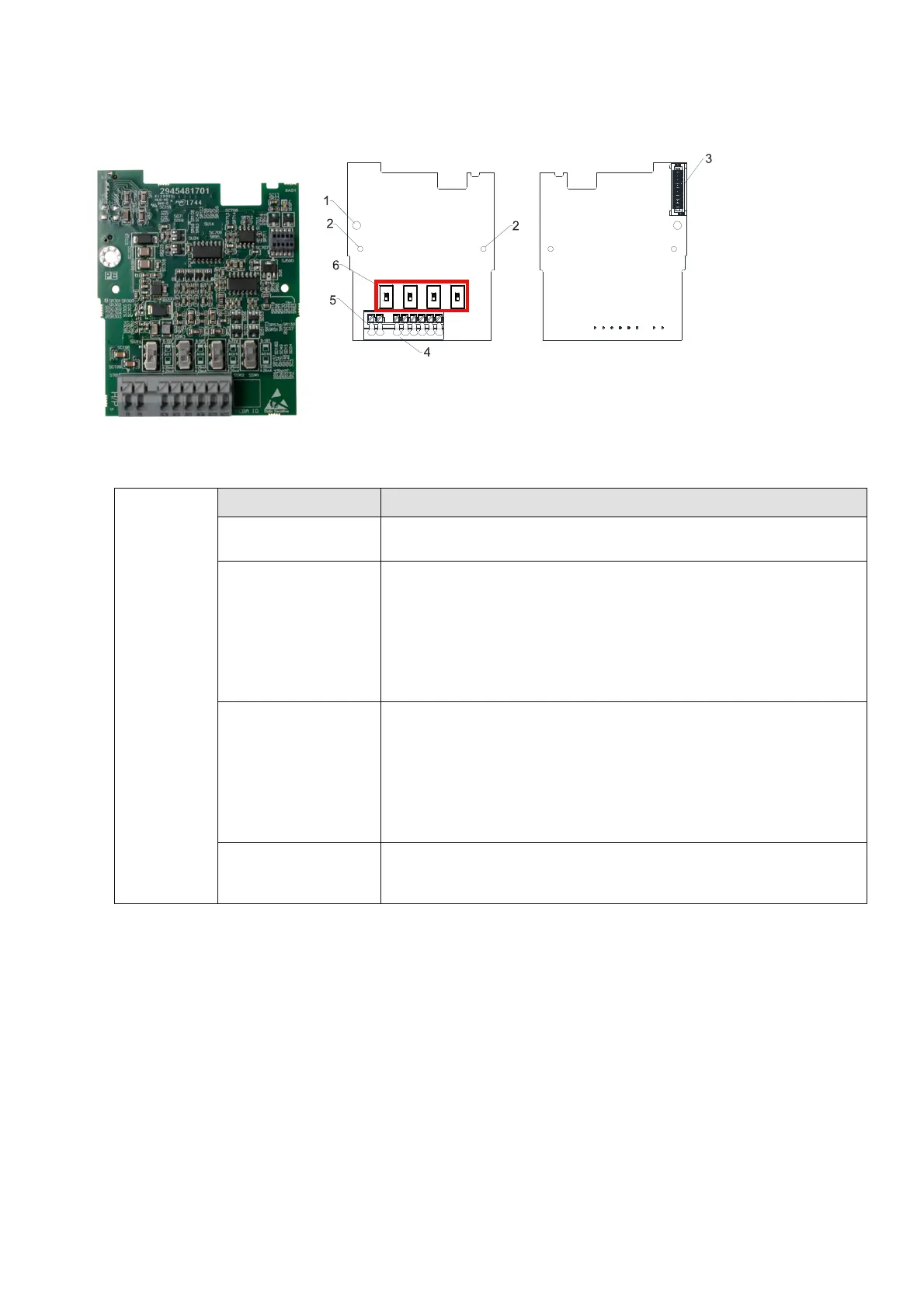

8-6 EMM-A22A -- Extension for 2 Sets of Analog Input / 2 Sets of Analog Output
8-6-1 Product Profile
Figure 8-63
Figure 8-64
Wire: 0.25–0.75 mm
2
/ (24–18 AWG)
Stripping length: 9 mm
1. Screw fixing hole
2. Positioning hole
3. AC motor drive
connection port
4. T
e
rminal bloc
k
5.
Switch (SSW1–
SSW4)
Analog I/O
Extension
Card
Terminals Descriptions
ACM
Common output signal and input signal terminals.
AI10, AI11
Refer to Pr.14-00–Pr.14-01 to program the multi-function.
Two sets of AI ports: SSW3, SSW4 switch for AVI or ACI.
(Default is AVI)
AVI: input 0–10 V
ACI: input 0–20 mA
AO10–AO11
Refer to Pr.14-12–Pr.14-13 to program the multi-function.
Two sets of AO ports: SSW1, SSW2 switch for AVO or ACO.
(Default is AVO)
AVO: output 0–10 V
ACO: output 0–20 mA
PE
Grounding terminal. To decrease noise, properly ground this
terminal.
Table 8-11
