Chapter 2 DimensionsMH300

2-11

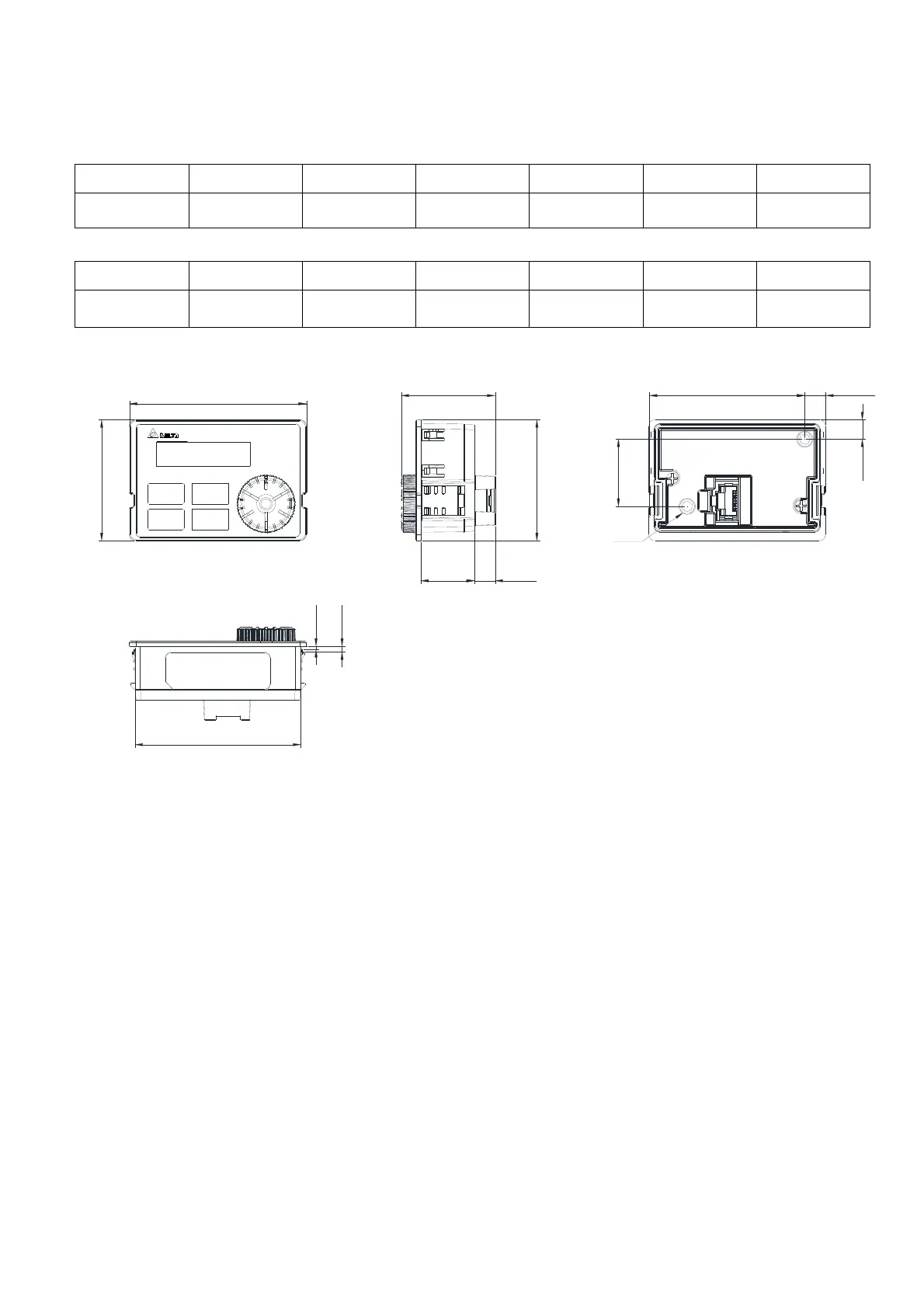

2-10 Digital Keypad

KPMH-LC01

Unit: mm (inch)

W W1 W2 W3 H H1 H2

68.0 (2.67) 63.8 (2.51) 45.2 (1.78) 8.0 (0.31) 46.8 (1.84) 42.0 (1.65) 26.0 (1.02)

H3 D D1 D2 D3 D4 S1

7.5 (0.30) 36.1 (1.41) 22.7 (0.89) 7.9 (0.30) 2.2 (0.09) 1.3 (0.05) M3*0.5(2X)

LABEL
