15-2 Wiring for CANopen

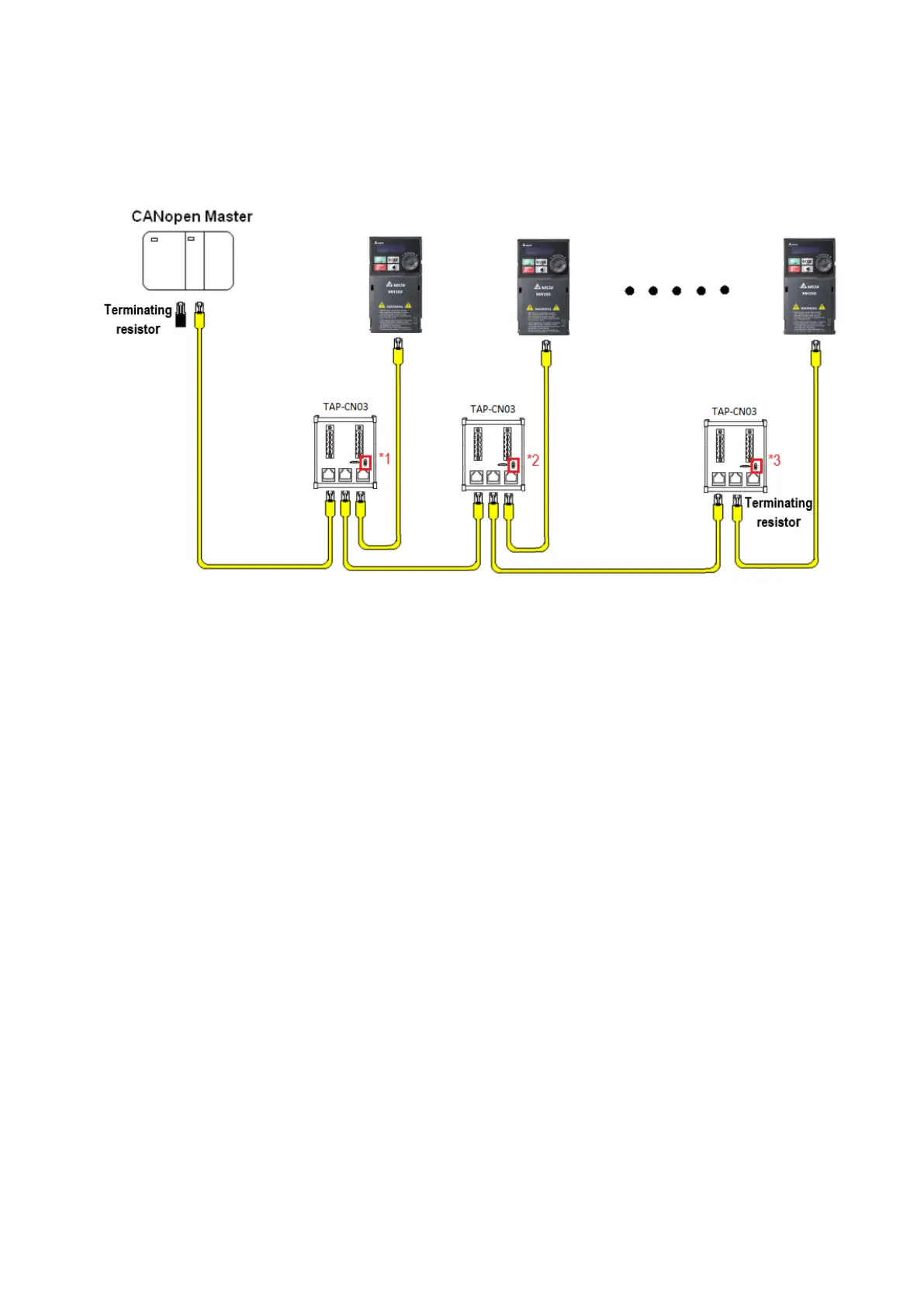

Use
an external CANopen communication splitter box (TAP-CN03) for built-in CANopen wiring to
connect CANopen to an MH300. The link uses an RJ45 cable. You must terminate the two farthest ends
with 120 Ω terminating resistors as shown in the picture below.
*1. Turn the terminal resistor setting switch SW to OFF.
*2. Turn the terminal resistor setting switch SW to
OFF.
*3. Turn the terminal resistor setting switch SW to
ON.
