Chapter 2 DimensionsMH300

2-7

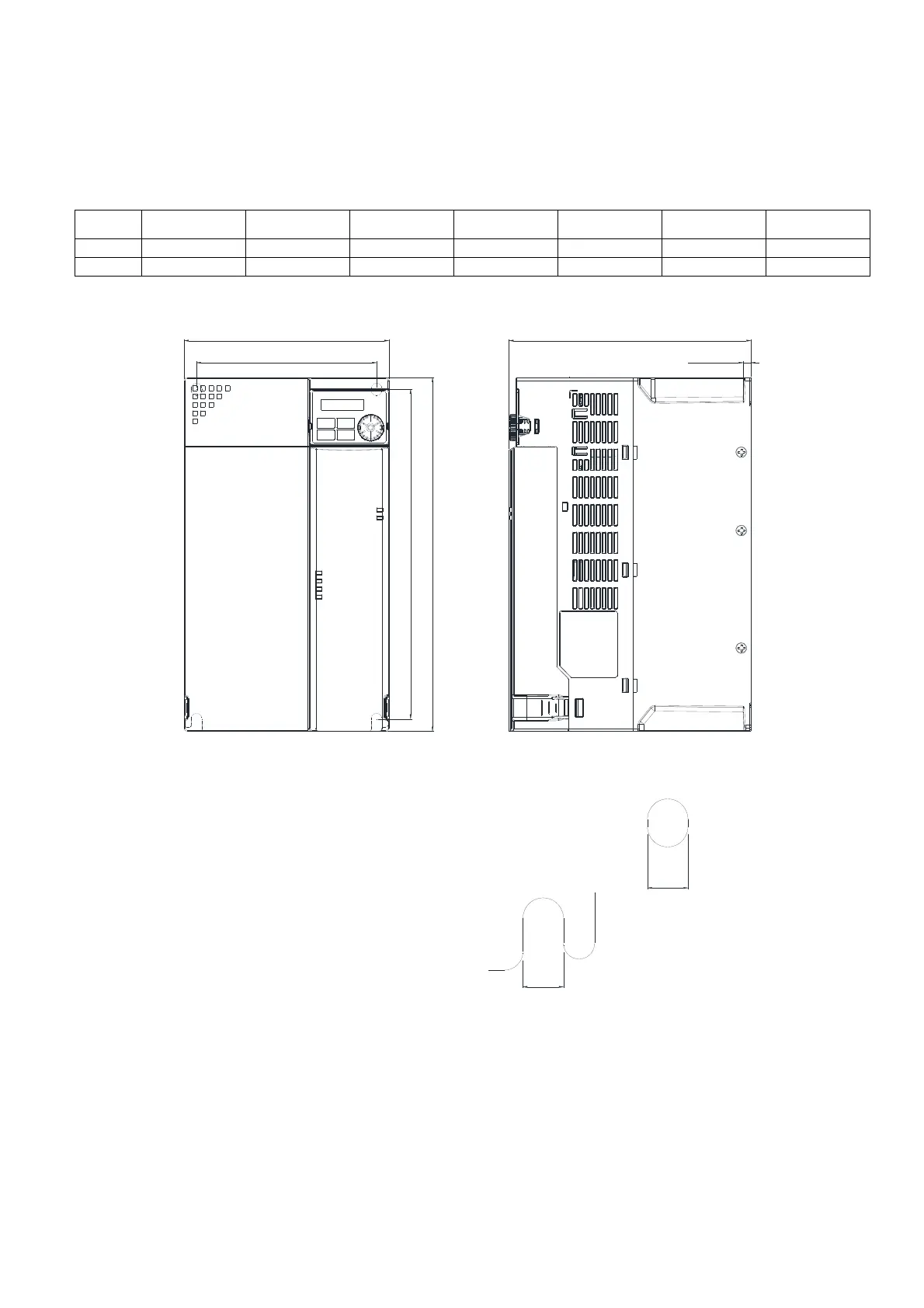

2-6 Frame F

F1: VFD65AMH23ANSAA; VFD65AMH23ENSAA; VFD38AMH43ANSAA; VFD38AMH43ENSAA;

VFD45AMH43ANSAA; VFD45AMH43ENSAA

F2: VFD38AMH43AFSAA; VFD45AMH43AFSAA

Unit: mm (inch)

Frame W H D W1 H1 D1 S1

F1 175.0 (6.89) 300.0 (11.81) 207.0 (8.15) 154.0 (6.06) 279.5 (11.00) 6.5 (0.26) 8.4 (0.33)

F2 175.0 (6.89) 300.0 (11.81) 259.0 (10.20) 154.0 (6.06) 279.5 (11.00) 6.5 (0.26) 8.4 (0.33)

Mounting Hole
