Delta MH300 Series User Manual

Chapter 7 Optional AccessoriesMH300
7-79
7-12 DIN-Rail Mounting
MKM
-DRB
Applicable for Frame A and B
Screw Torque
M4 x 2 pcs
8–10 kg-cm
(6.9–8.7 lb-in.)
(0.7–98 Nm)
Table 7-66
Un
it: mm [inch]

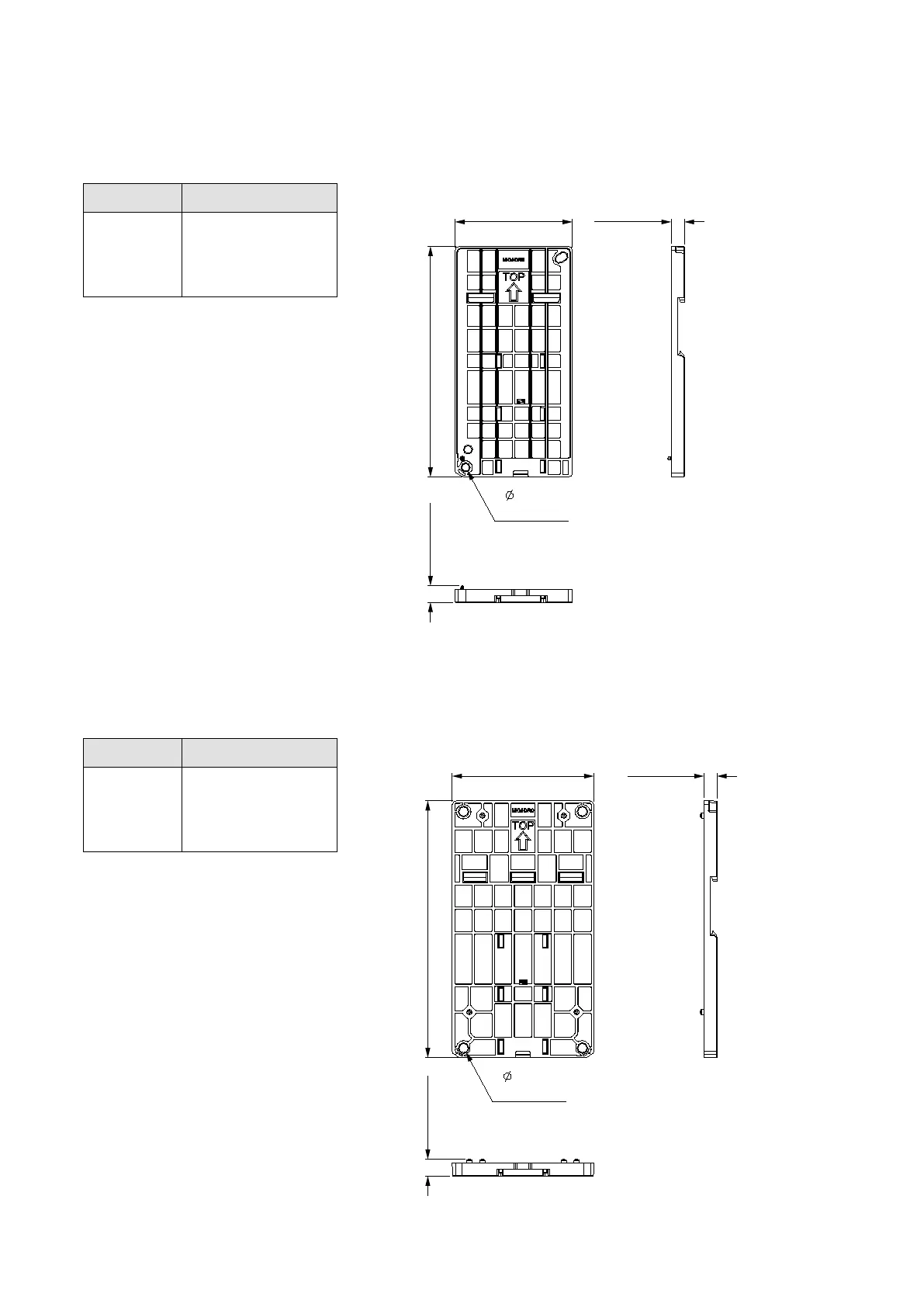

Fig. 7-102
MKM-DRC
Applicable for Frame C
Unit: mm [inch]
Screw Torque
M5 x 4 pcs
10–12 kg-cm
(8.7–10.4 lb-in.)
(0.98–1.18 Nm]
Table 7-67
Fig. 7-103
72.0[2.83]
142.0[5.59]
8.0[0.31]
10.2[0.40]
unit: mm[inch]
4.6[0.18]
(M4 NUT)
87.0[3.43] 8.0[0.31]
157.0[6.18]10.2[0.40]
unit: mm[inch]
5.7[0.22]
(M5 NUT)
