7-14 Digital Keypad – KPC-CC01
7-14-1 Digital Keypad KPC-CC01
The default communication protocol for MH300 is ASCII 9600, 7, N, 2, but the communication protocol
for KPC-CC01 is RTU 19200, 8, N, 2. Therefore, you must set MH300 communication parameters so as
to connect with the digital keypad KPC-CC01. The setting steps are as follows:
1. Set Pr.09-00 communication address = 1
2. Set Pr.09-01 COM1 transmission speed (Baud rate) = 19.2 Kbps
3. Set Pr.09-04 COM1 communication protocol = 13: 8N2 (RTU)

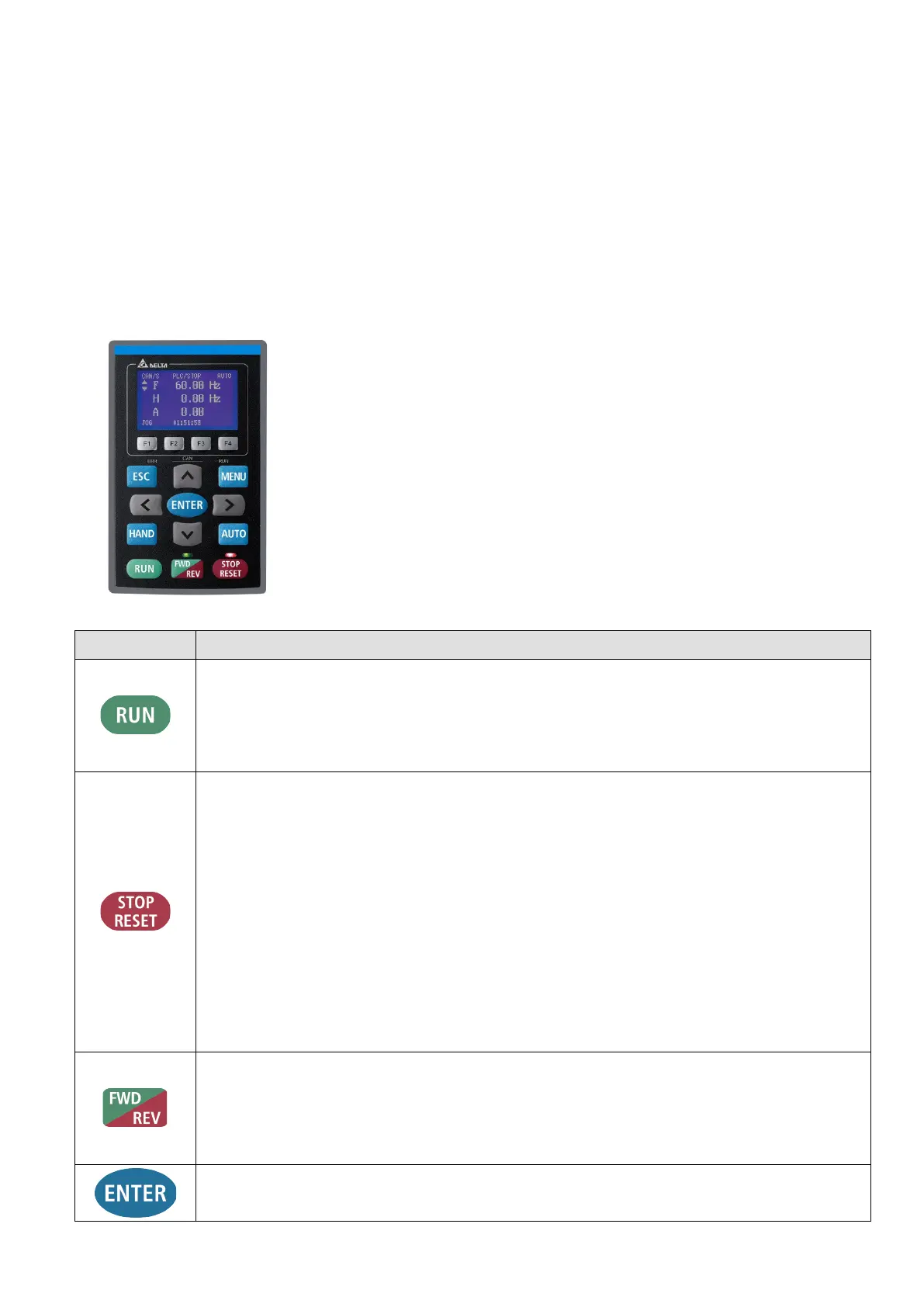

KPC-CC01
Communication Interface
RJ45 (socket), RS-485 interface
Communication protocol:
RTU19200, 8, N, 2
Installation Method
1. The embedded type can be installed flat on the surface of the control
box. The front cover is waterproof.
2. Buy a MKC-KPPK model for wall mounting or embedded mounting. Its
protection level is IP66.
3. The maximum RJ45 extension lead is 5 m (16ft).
4. This keypad can only be used on Delta’s motor drive C2000, CH2000,
CP2000, MS300, MH300, ME300 series, and so on.
Keypad Function Description
Key
Descriptions
Start Operation Key
1. Only valid when the source of operation command is the keypad.
2. Operates the AC motor drive by the function setting. The RUN LED will be ON.
3. Can be pressed repeatedly at the stop process.
Stop Command Key.
1. This key has the highest priority when the command is from the keypad.
2.
When it receives the STOP command, regardless of whether the AC motor drive is in
operation or stop status, the AC motor drive executes the “STOP” command.
3. Use the RESET key to reset the drive after a fault occurs.
4. If you cannot reset after the error:
a. The condition which triggers the fault is not cleared. After you clear the condition,
you can then reset the fault.
b. The drive is in fault status when powered on. After you clear the condition, restart
and then you can reset the fault.
Operation Direction Key
1. Only controls the operation direction, NOT the drive activation.
FWD: forward, REV: reverse.
2. Refer to the LED descriptions for more details.
ENTER Key
Goes to the next menu level. If at the last level, press ENTER to execute the command.
