7-9 The Assembly of NEMA KIT
NEM
A KIT is in compliance with protection level NEMA 1 / UL Type 1

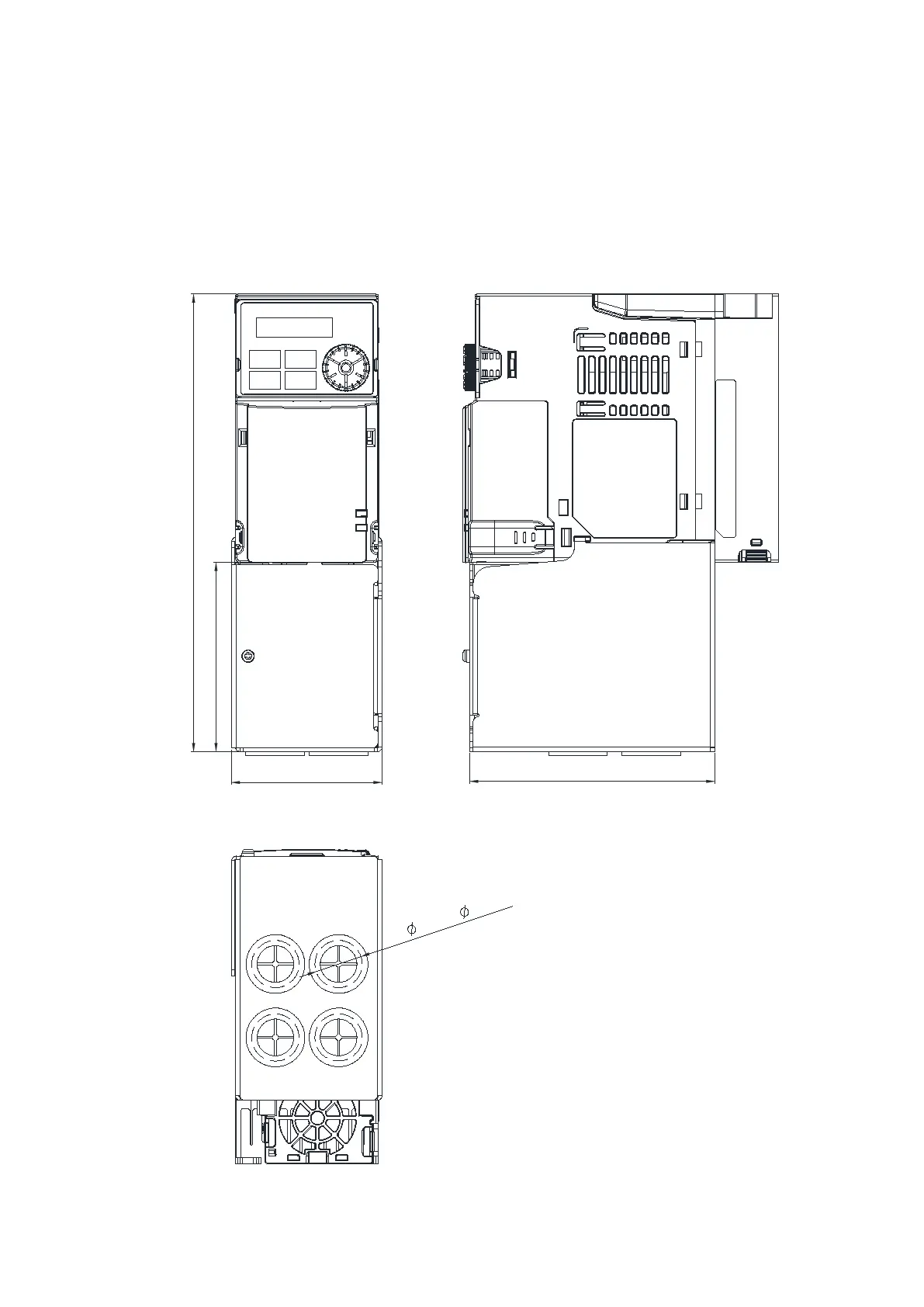

Frame A (A1, A2, A3, A4)
NEMA KIT model:
MKMH-CBA
Unit: mm [inch]
Fig. 7-63
218.0 [8.58]
116.4 [4.58]
71.5 [2.81]
22.5 [
0.89]
90.0 [3.54]
