Chapter 7 Optional AccessoriesMH300
7-73

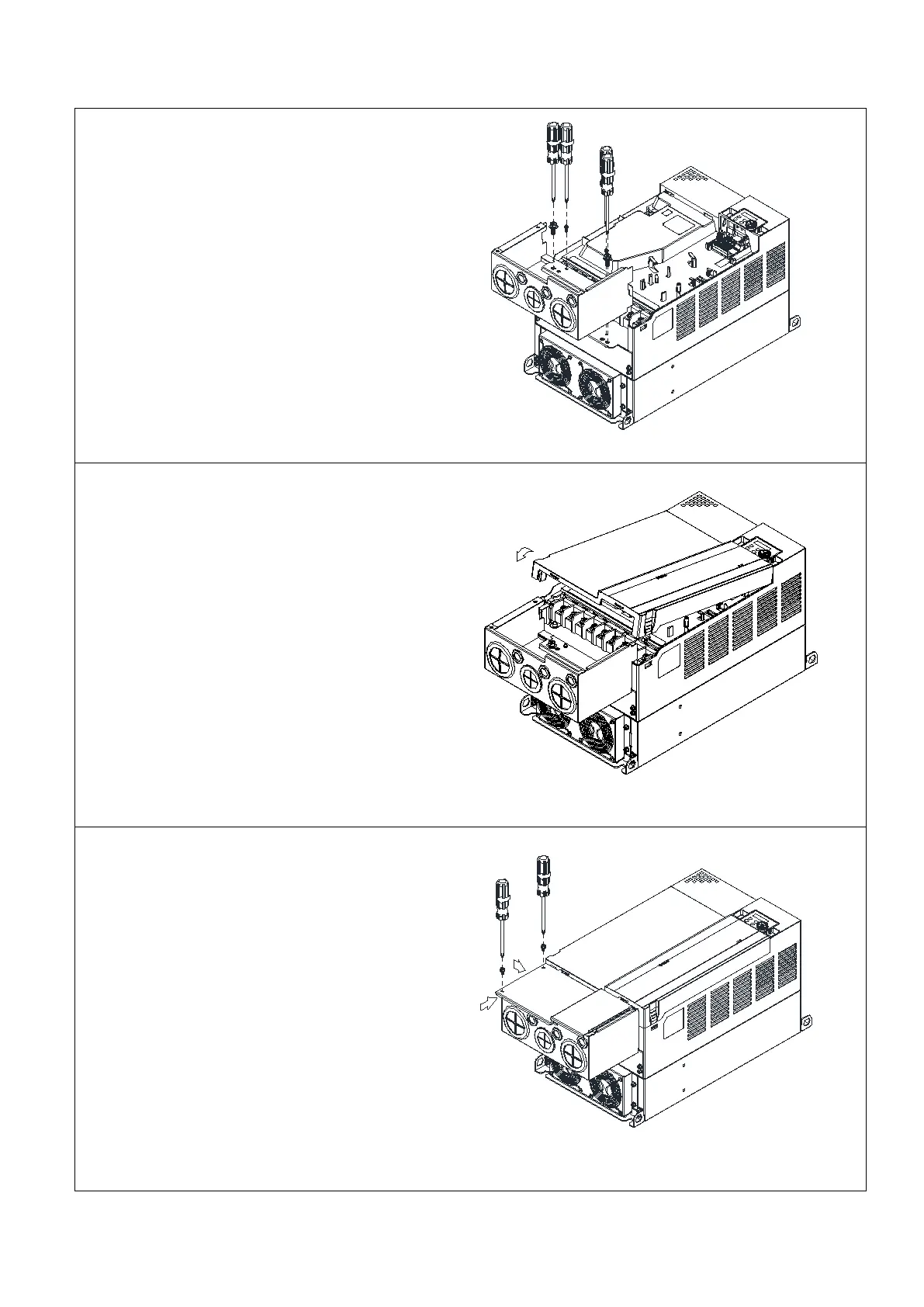

Frame H–I
1) Fix the NEMA KIT on the drive
Frame H
M4*2: 14–16 kg-cm / (12.1–13.9 lb-in.) /
(1.38–1.56 Nm)
M8*2: 75–85 kg-cm / (65.0–73.7 lb-in.) /
(7.35–8.33 Nm)
Frame I
M4*3: 14–16 kg-cm / (12.1–13.9 lb-in.) /
(1.38–1.56 Nm)
M8*2: 175–185 kg-cm / (151.9–160.6 lb-in.) /
(17.16–18.14 Nm)
Fig. 7-86
2) Put the front cover of the drive back.
Fig. 7-87
3) Fix the NEMA KIT cover.
M5*2: 24–26 kg-cm / (20.8–22.6 lb-in.) /
(2.35–2.55 Nm)
Fig. 7-88
