Chapter 8 Option CardsMH300
8-32
Environment
Noise immunity
ESD (IEC 61800-5-1, IEC 61000-4-2)
EFT (IEC 61800-5-1, IEC 61000-4-4)
Surge Test (IEC 61800-5-1, IEC 61000-4-5)
Conducted Susceptibility Test (IEC 61800-5-1, IEC 61000-4-6)
Operation / Storage
Operation: -10–50°C (temperature), 90% (humidity)
Storage: -25–70°C (temperature), 95% (humidity)
Shock / Vibration resistance
International standards:
IEC 61800-5-1, IEC 60068-2-6 / IEC 61800-5-1, IEC 60068-2-27
Table 8-24

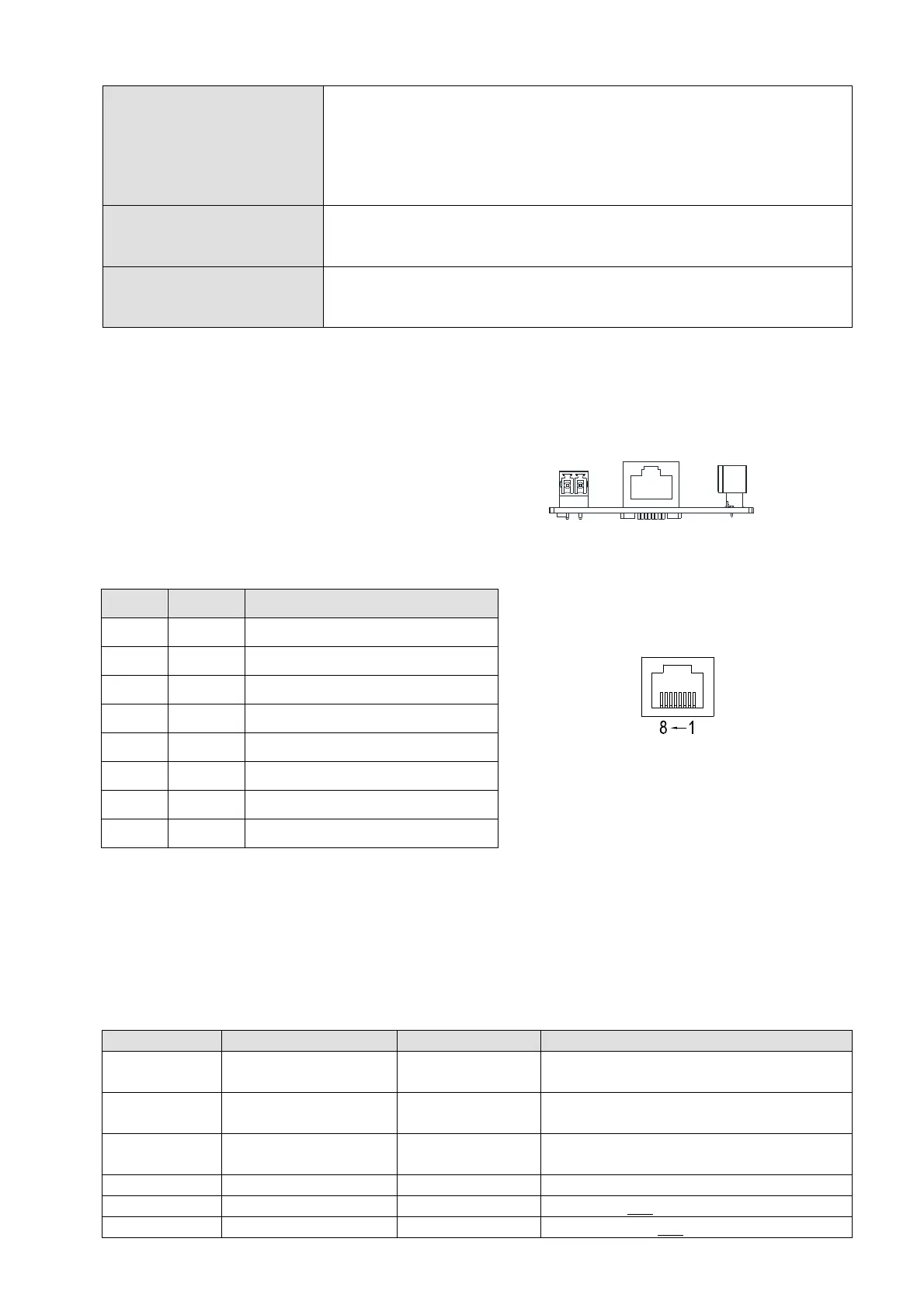

8-11-4 Installation
Connecting the CMM-EIP01 to the Network
1. Switch off the power supply.
2. Open the front cover of the drive.
3. Connect the CAT-5e network cable to the RJ45 port on
the CMM-EIP02 (as shown in the right figure).
Figure 8-79
RJ45 PIN Definition
PIN Signal Definition
Figure 8-80
1
Tx+ Data transmit positive
2
Tx- Data transmit negative
3
Rx+ Data receive positive
4
-- N/C
5
-- N/C
6
Rx- Data receive negative
7
-- N/C
8
-- N/C
Table 8-25
8-11-5 Communication Parameter Settings when MH300 Connects to EtherNet
When you connect the MH300 to EtherNet, set up the communication parameters based on the
table below. The EtherNet master reads and writes the frequency command words and operation
command words for the MH300 after you set the communication parameters.
Parameter Function Current Set Value Definition of Parameter Values
00-20
Frequency command
source
8
The frequency command is controlled by
the communication card.
00-21
Operation command
source
5
The operation command is controlled by
the communication card.
09-30
Decoding method for
communication
0
The decoding method for Delta AC motor
drive
09-75 IP setting 0 Static IP(0) / Dynamic distribution IP(1)
09-76 IP address 1 192 IP address 192.168.1.5
09-77 IP address 2 168 IP address 192.168.1.5
