Chapter 12 Description of Parameter Settings
MH300
dissipation, dynamic balance, and bearing lubrication of the motor.
If the voltage is too high when the motor is at low frequencies, it may cause motor damage,
overheating, and may trigger stalling or over-current protection. To prevent motor damage or
motor fault, be careful when you set the voltage.

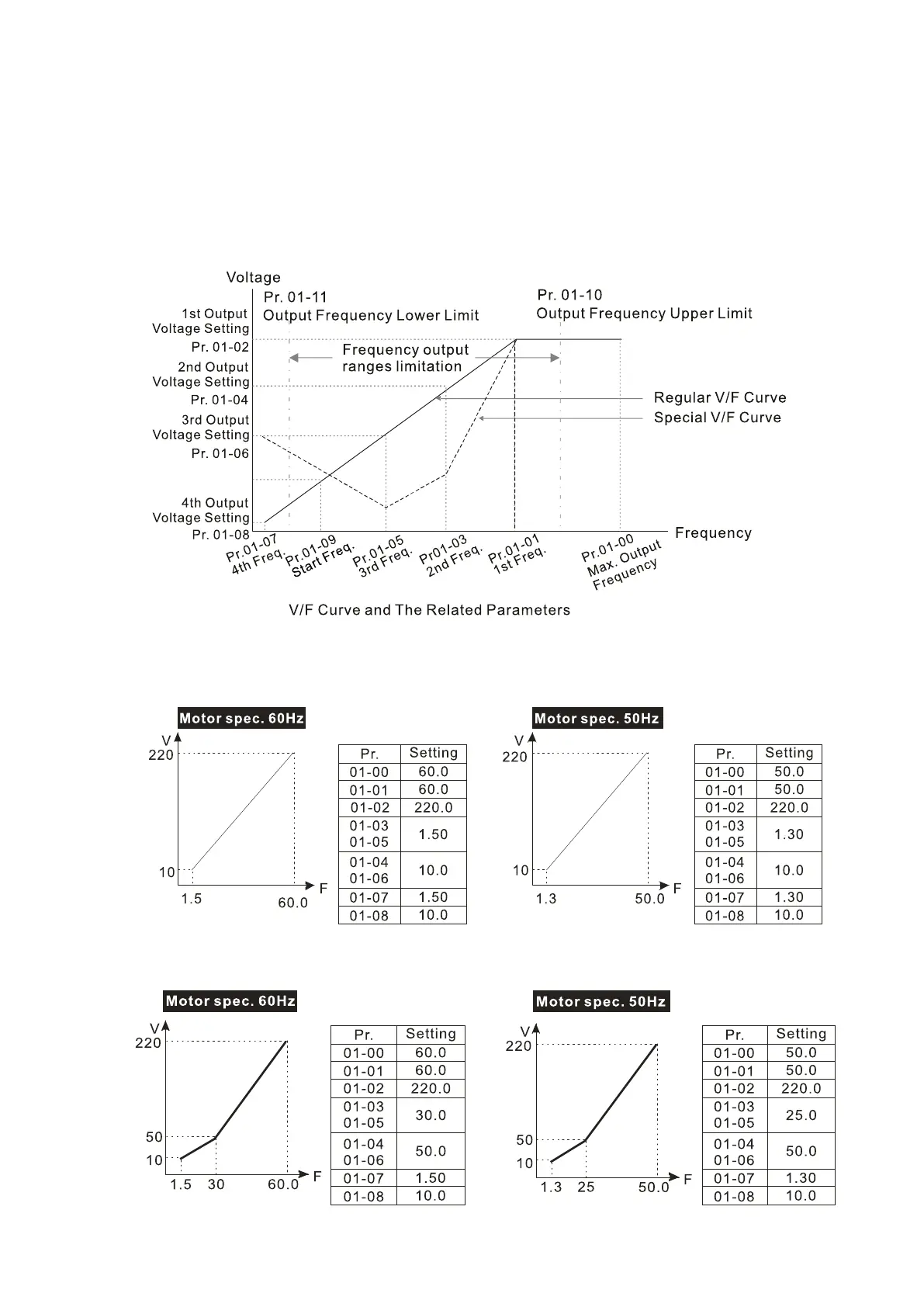

The diagram below shows the V/F curve for motor 1. You can also find the V/F curve for motor 2
from the same diagram. For multi-motors selection, refer to multi-function input terminal settings
83 and 84 for Pr.02-01–02-07.
Common settings for the V/F curve:
(1) General purpose
(2) For fan and hydraulic machinery
