Chapter 5 Main Circuit TerminalsMH300
5-15

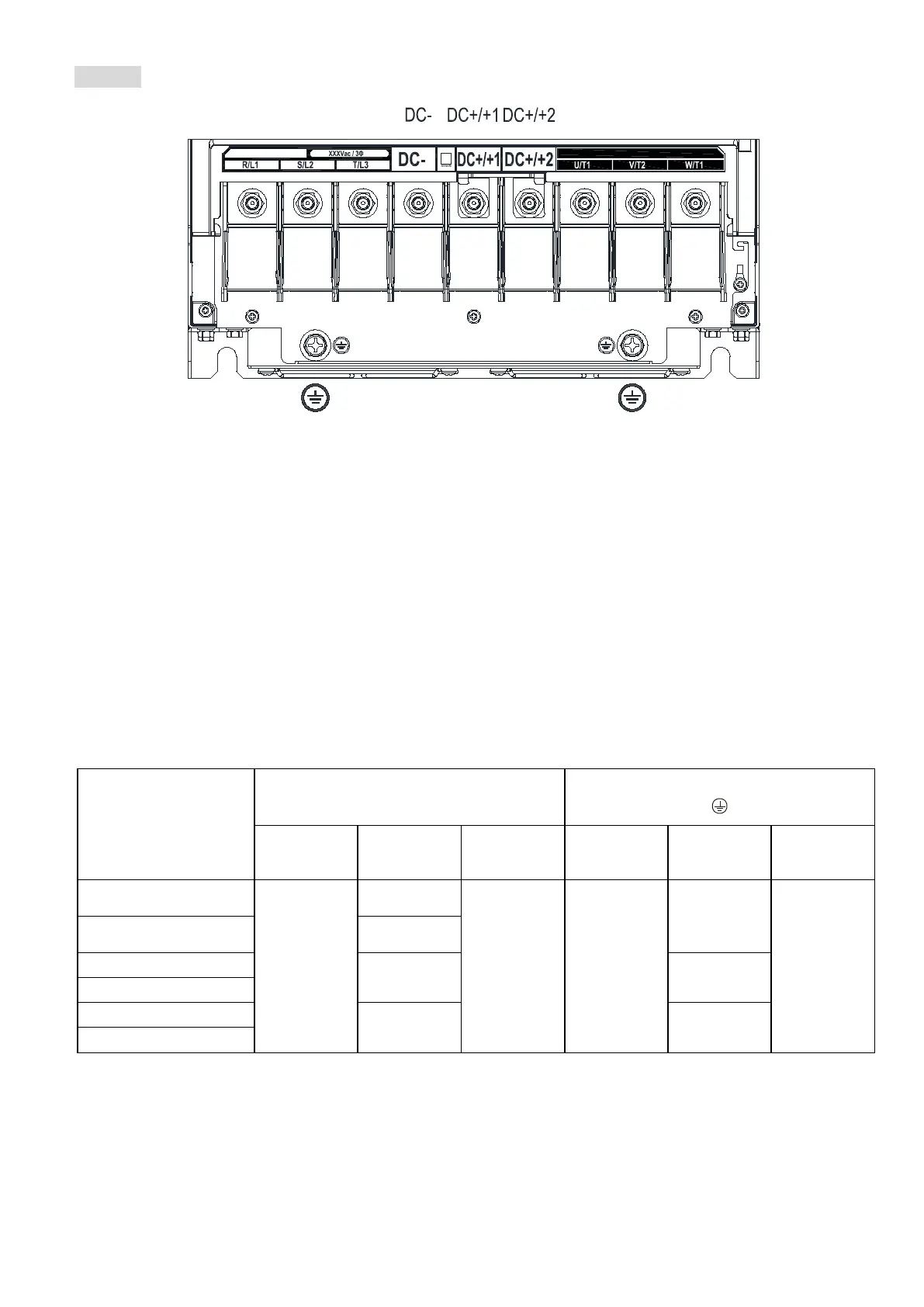

Frame I
 If you install at Ta 40°C (with conduit box) / 50°C (without conduit box) above environment, s
elect
copper wire with voltage rating of 600 V and temperature resistance of 90°C or above.
 If you install at Ta 40°C (with conduit box) / 50°C (without conduit box)
environment, select copper
wire with voltage rating of 600 V and temperature resistance of 75°C or 90°C.
 For VFD150MH43AFSAA, VFD150MH43ANSAA models
: If you install at Ta 30°C (with conduit box) /
40°C (without conduit box) above environment, select copper wire
with voltage rating of 600 V and
temperature resistance of 90°C or above.
 For UL installation compliance, use copper wires when installing.
The wire gauge is based on temperature resistance of 75°C, in accordance with UL requirements and
recommendations. Do not reduce the wire gauge when using high-temperature resistant wires.
Install the drive with conduit box
Models
Main Circuit Terminals
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3,
DC-, DC+/+1
Terminals
Max. Wire
Gauge
Min. Wire
Gauge
Screw &
Torque
(±10%)
Max. Wire
Gauge
Min. Wire
Gauge
Screw &
Torque
(±10%)
VFD120MH23ANSAA
120 mm
2
(4/0 AWG)
95 mm
2
(3/0 AWG)
M8
180 Kg-cm
(156.2 lb-in.)
(17.65 Nm)
150 mm
2
(300 MCM)
95 mm
2
(3/0 AWG)
M8
180 Kg-cm
(156.2 lb-in.)
(17.65 Nm)
VFD146MH23ANSAA
120 mm
2
(4/0 AWG)
VFD112MH43AFSAA
95 mm
2
(3/0 AWG)
70 mm
2
(2/0 AWG)
VFD112MH43ANSAA
VFD150MH43AFSAA
120 mm
2
(4/0 AWG)
95 mm
2
(3/0 AWG)
VFD150MH43ANSAA
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
POWER
MOTOR
