Chapter 7 Optional AccessoriesMH300
For example, a 460V, 15 kW MH300 has a braking current of 24 A (refer to the tables in this section), so it can
use the thermal overload relay with a rated current of 10 A (10 x 260% = 26A > 24A). The specification of each
thermal relay may vary among different manufacturers, carefully read the specification before using it.

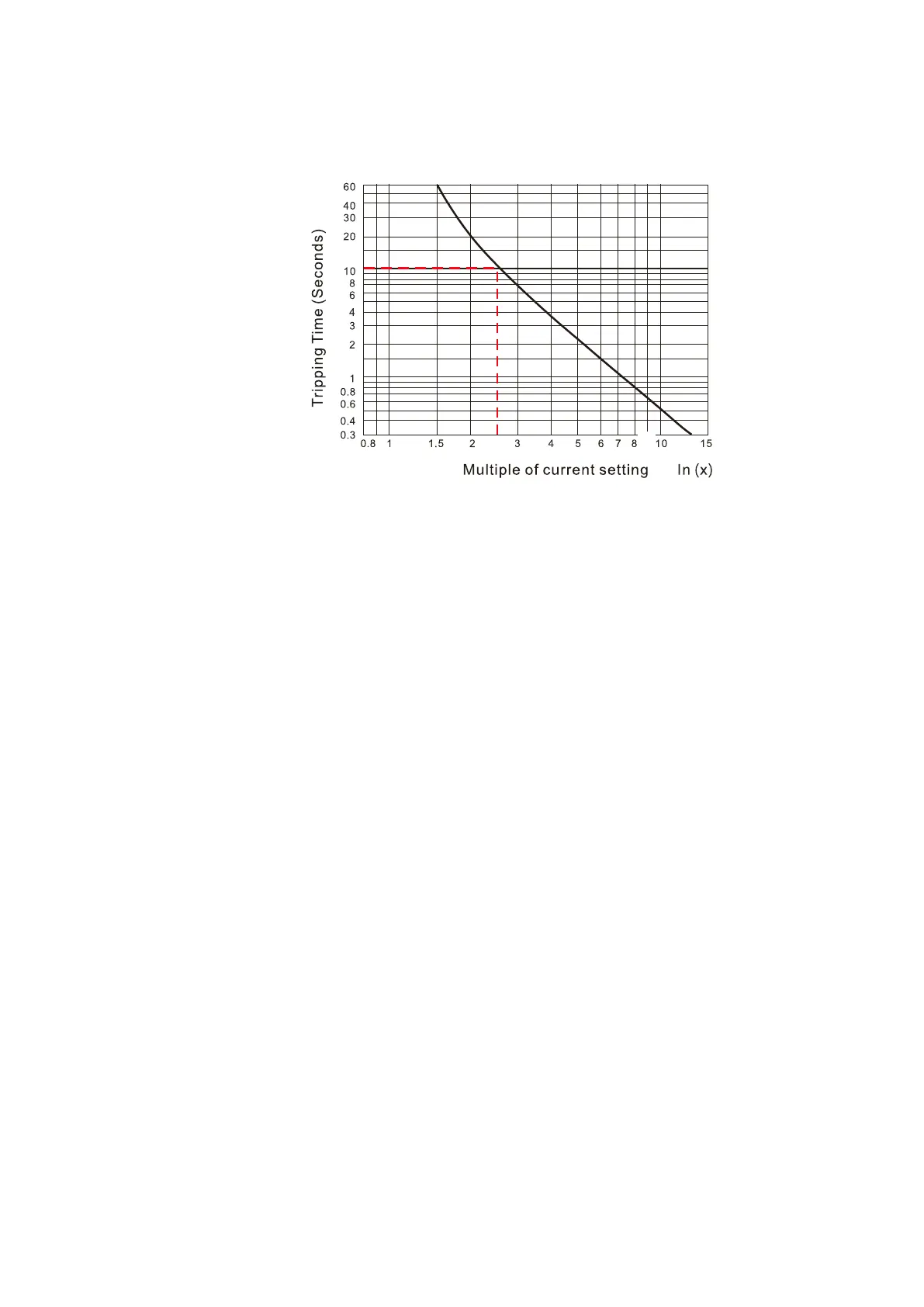

Fig. 7-3
