Chapter 15 CANopen Overview
MH300
15-3-3 Using the Delta Standard (Old Definition)
15-3-3-1 Various Mode Control Method (Delta Old Standard)
Follow the steps below:
1. Wire the hardware (refer to Section 15-2 Wiring for CANopen).
2. Set the operation source: set Pr.00-21 to 3 for CANopen communication card control. (RUN / STOP,
forward / reverse run, etc.)
3. Set the frequency source: set Pr.00-20 to 6. Choose the source for the Frequency command from
the CANopen setting.
4. Set Delta Standard (Old definition, only supports speed mode) as the control mode: Pr.09-40 = 0
and Pr.09-30 = 0.
5. Set the CANopen station: set Pr.09-36; the range is between 1–127. When Pr.09-36 = 0, the
CANopen slave function is disabled. Note: if an error appears (CAdE or CANopen memory error)
as you complete the station setting, set Pr.00-02 = 7 to reset.
6. Set the CANopen baud rate: set Pr.09-37 (CANBUS Baud Rate: 1 Mbps (0), 500 Kbps (1), 250
Kbps (2), 125 Kbps (3), 100 Kbps (4) and 50 Kbps (5)).

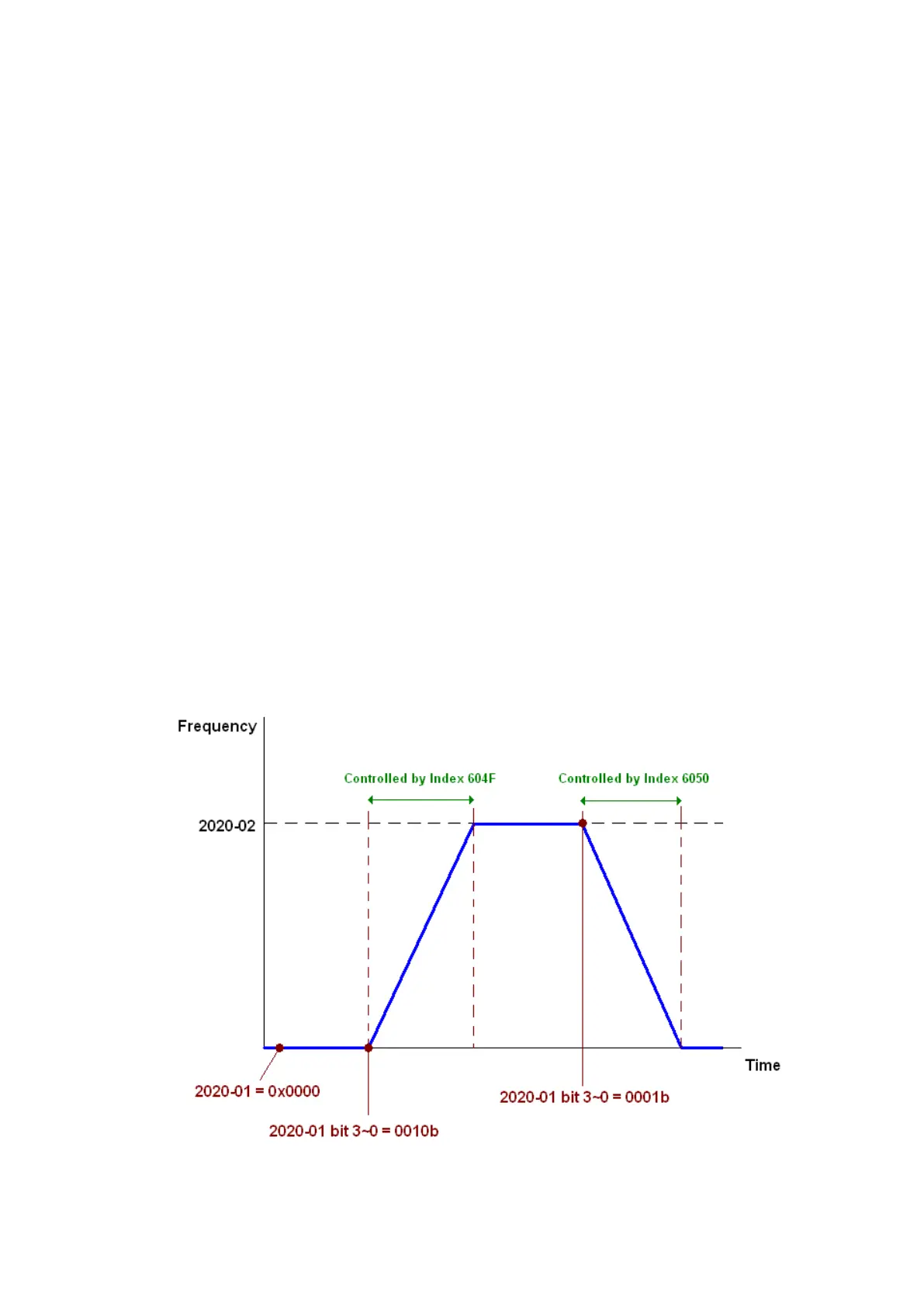

15-3-3-2 Controls Under the Speed Mode
1. Set the target frequency: set 2020-02, the unit is Hz, with 2 decimal places. For example: 1000 is
10.00 Hz.
2. Operation control: set 2020-01 = 0002H for running, and set 2020-01 = 0001H for stopping.
