Chapter 16 PLC Function ApplicationsMH300
16-19

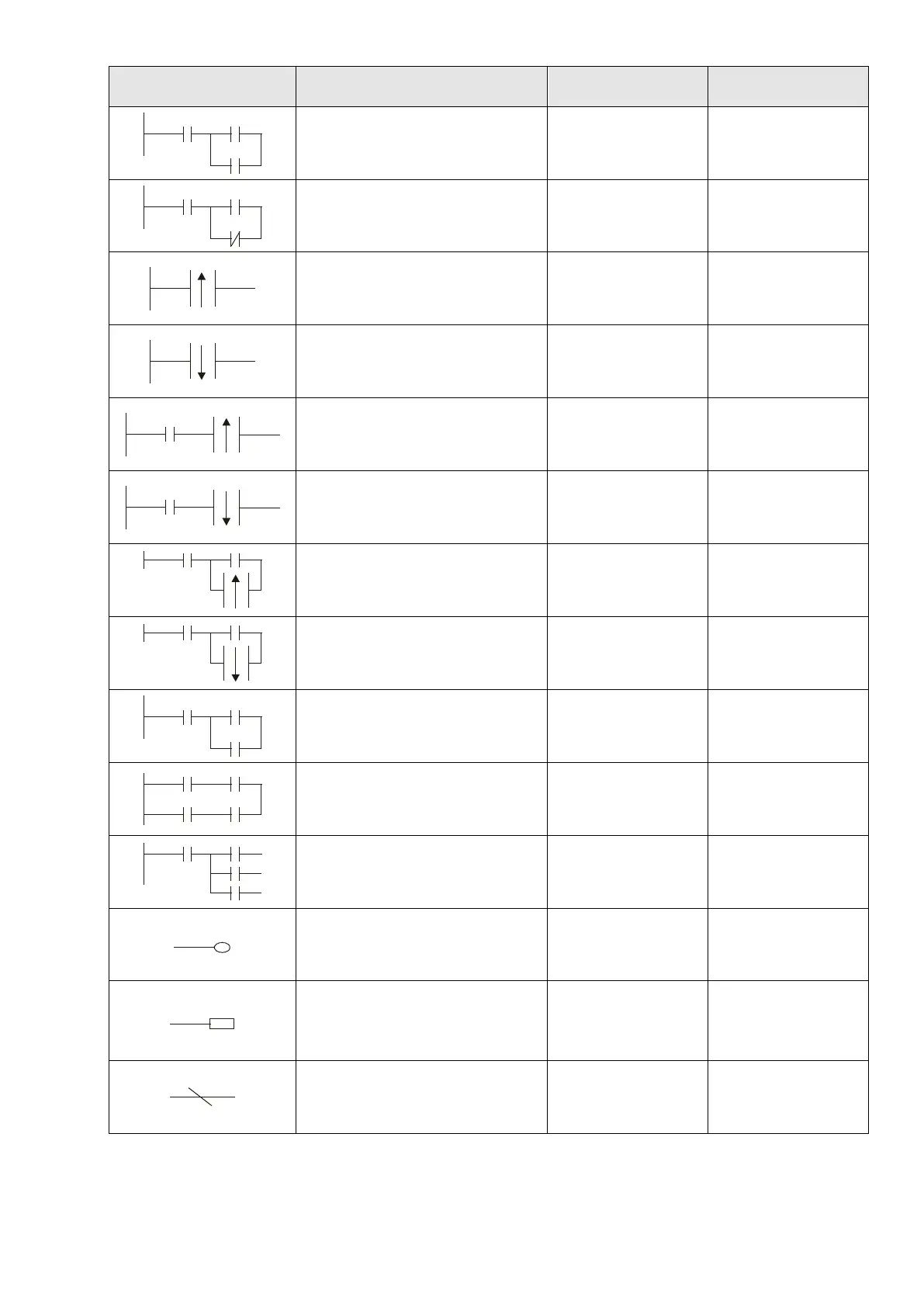

Ladder diagram
structures
Explanation of commands Command Using Device
Parallel N.O. OR X, Y, M, T, C
Parallel N.C. ORI X, Y, M, T, C
Rising edge-triggered switch LDP X, Y, M, T, C
Falling edge-triggered switch LDF X, Y, M, T, C
Rising edge-triggered series ANDP X, Y, M, T, C
Falling edge-triggered series ANDF X, Y, M, T, C
Rising edge-triggered parallel ORP X, Y, M, T, C
Falling edge-triggered parallel ORF X, Y, M, T, C
Block series ANB N/A
Block parallel ORB N/A
Multiple outputs
MPS
MRD
MPP
N/A
Coil driven output commands OUT Y, M
Some basic commands,
application commands.
Some basic
commands,
application
commands.
Inverted logic INV N/A
Table 16-6
