Delta MH300 Series - Page 906

Chapter 16 PLC Function ApplicationsMH300
16-43
Command
Function
ANI
Connect contact B in series
Operand
X0–X17
Y0–Y17
M0–M799
T0–159
C0–C79
D0–D399
    
－
Use the ANI command to create a series connection to contact B; its function is to first
read the current status of the designated series contact and the
logical operation
results before contact in order to perform “AND” operation; saves the results in
the
cumulative register.

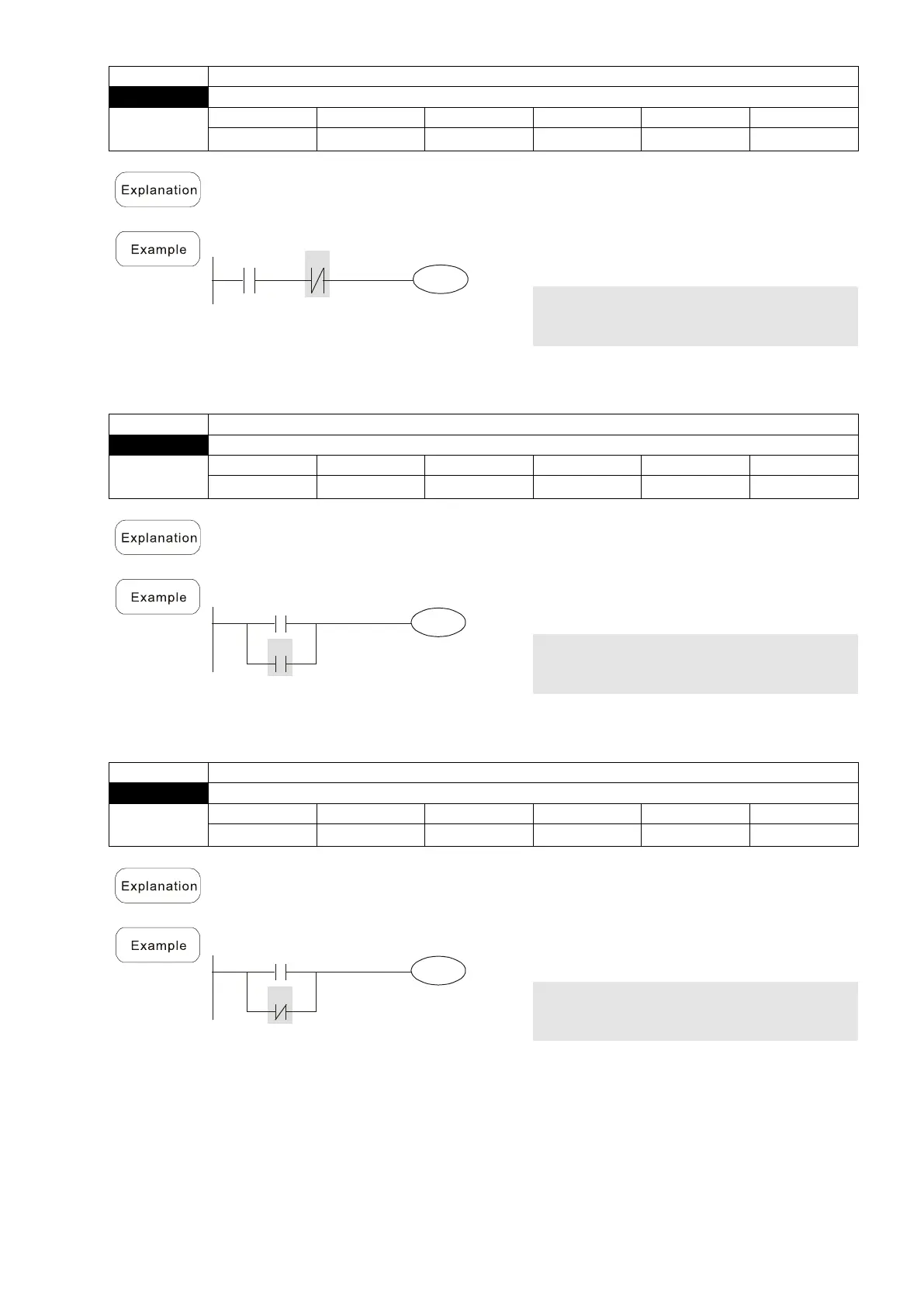

Ladder diagram:
X0
X1
Y1
Command code:
Description:
LD X1 Load Contact A of X1
ANI X0
Create a series
connection to contact B
of X0
OUT Y1 Drive Y1 coil
Command
Function
OR
Connect contact A in parallel
Operand
X0–X17
Y0–Y17
M0–M799
T0–159
C0–C79
D0–D399
    
－
Use the OR command to establish a parallel connection to contact A; its function is to
first read the current status of the designated series contact and the
logical operation
results before contact in order to perform “OR” operation; saves the
results in
cumulative register.
Ladder diagram:
X0
X1
Y1
Command code:
Description:
LD X0 Load Contact A of X0
OR X1
Create a series
connection to contact A
of X1
OUT Y1 Drive Y1 coil
Command
Function
ORI
Connect contact B in parallel
Operand
X0–X17
Y0–Y17
M0–M799
T0–159
C0–C79
D0–D399
    
－
Use the ORI command to establish a parallel connection to contact B; its function is to
first read the current status of the designated series contact and the
logical operation
results before contact in order to perform “OR” operation; saves the
results in
cumulative register.
Ladder diagram:
X0
X1
Y1
Command code:
Description:
LD X0 Load Contact A of X0
ORI X1
Create a series
connection to contact B
of X1
OUT Y1 Drive Y1 coil
