Install the collet with the attached end mill.

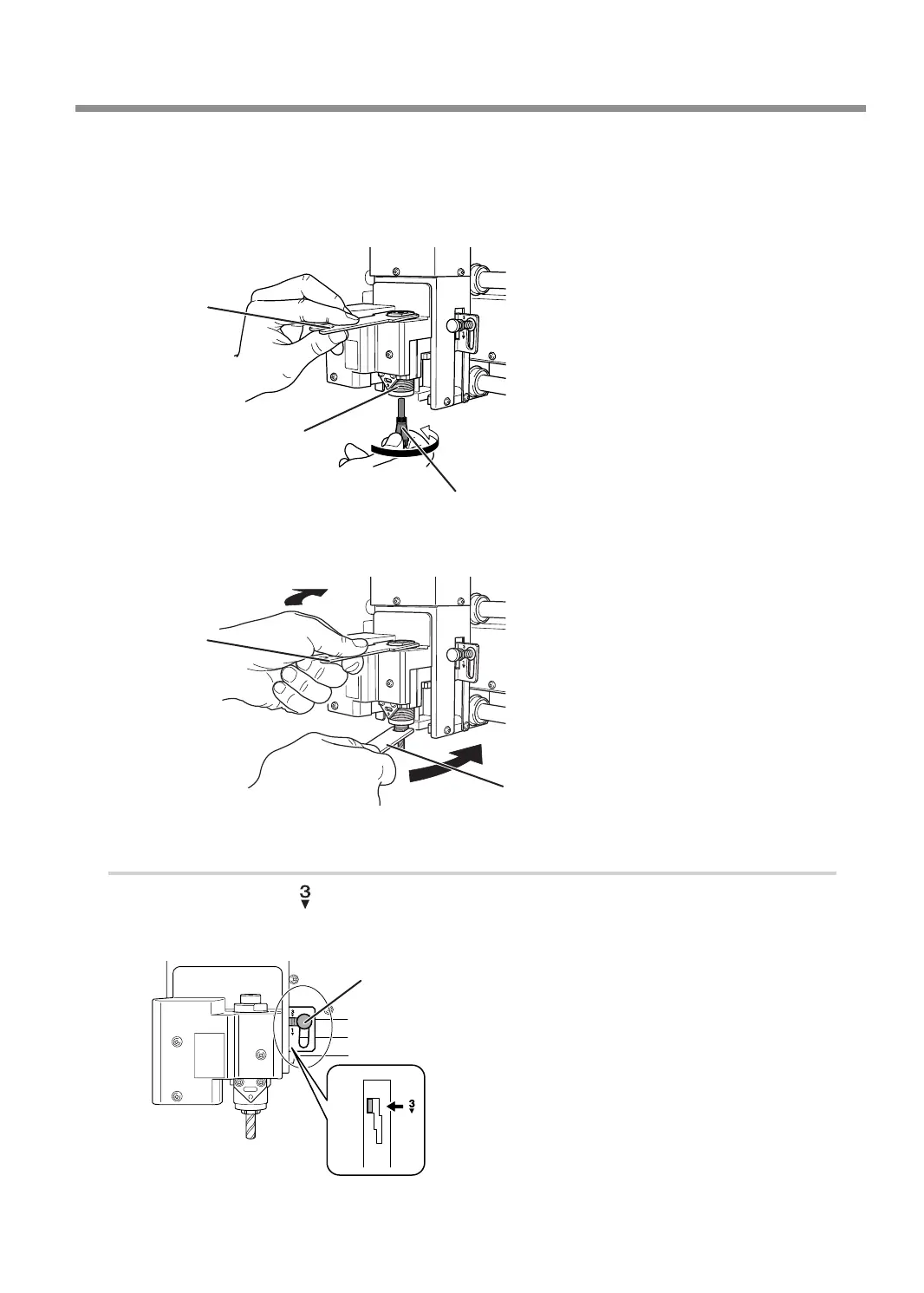

1 Temporarily tighten the collet with end mill.
Insert the collet with end mill into the spindle unit from below, then, while holding the spindle unit
immobile with a wrench, tighten temporarily.
Wrench
Spindle unit
Collet with an end mill
2 Fully tighten the collet with end mill.
Using two wrenches, fully tighten the collet with end mill.
Wrench
Wrench
3.
Set the lock lever.
Set the lock lever at position.
The spindle head is secured in place.
" P. 62 "Setting the Lock Lever"
Lock lever
Lift up.
