Attach a solid collet that ts the diameter of the cutter.

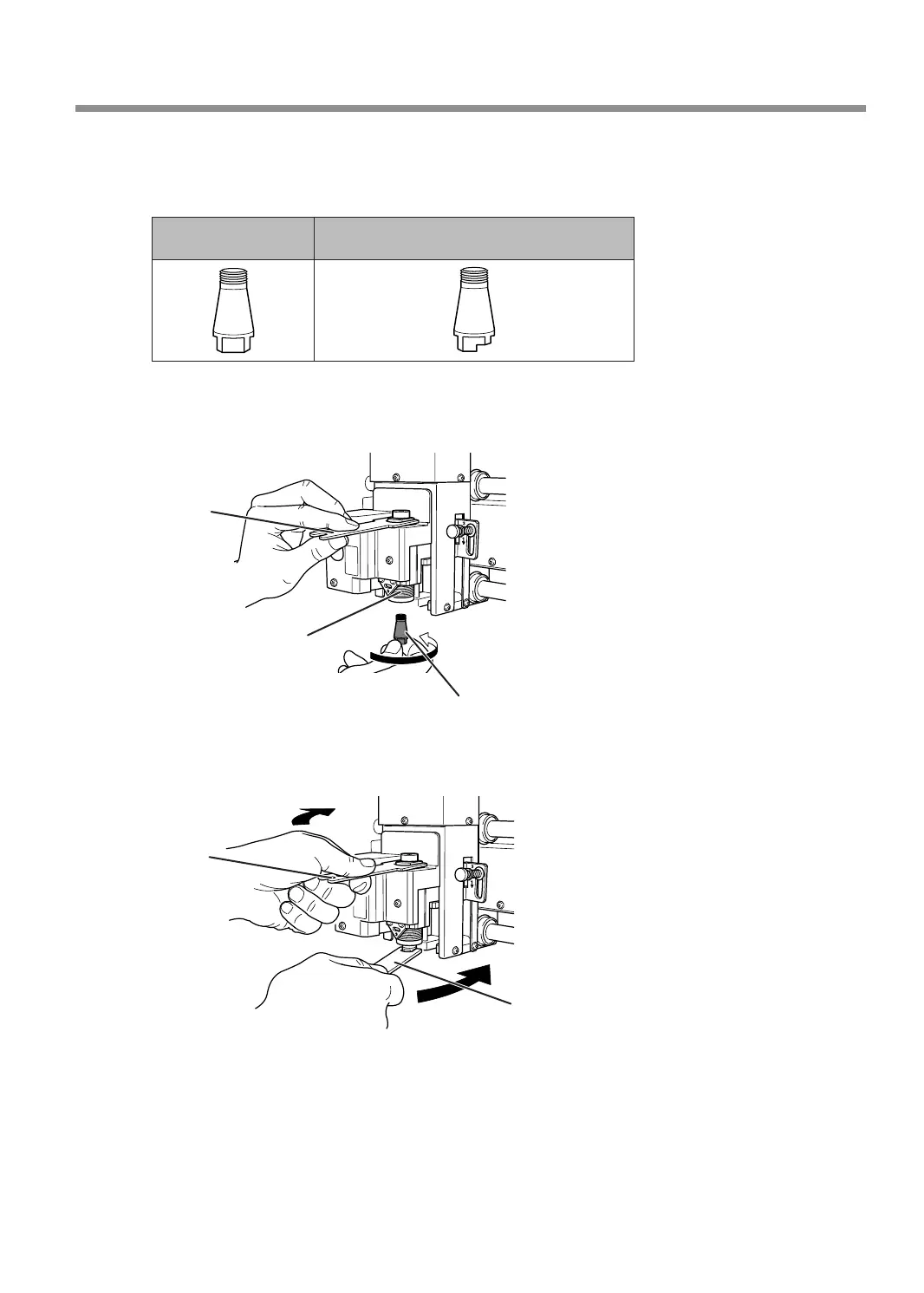

There are two types of solid collets. For ø4.36 mm (0.17 in.) diamond scrapers, use an optionally
available dedicated diamond-scraper collet.
For ø3.175 mm (0.125 in.)
Dedicated for ø4.36 mm (0.17 in.) diamond scraper
(Optional item)
1 Temporarily tighten the solid collet.
Insert the solid collet into the spindle unit from below, then, while holding the spindle unit immobile
with a wrench, tighten temporarily.
Wrench
Spindle unit
Solid collet
2 Fully tighten the solid collet.
Using two wrenches, fully tighten the solid collet.
Wrench
Wrench
