Dieci Pegasus - Cleaning;Replacement of the Mechanical Engine Air Filter Cartridge (Pegasus 38.16)

Mod. E.T. PEGASUS
D/28
Maintenance and adjustment
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
(g.46D)
(g.48/D)
(g.47/D)
1
3
2
4
4
(g.49/D)
7
6
8
Cleaning/replacement of the mechanical engine air lter
cartridge
(Pegasus 38.16)

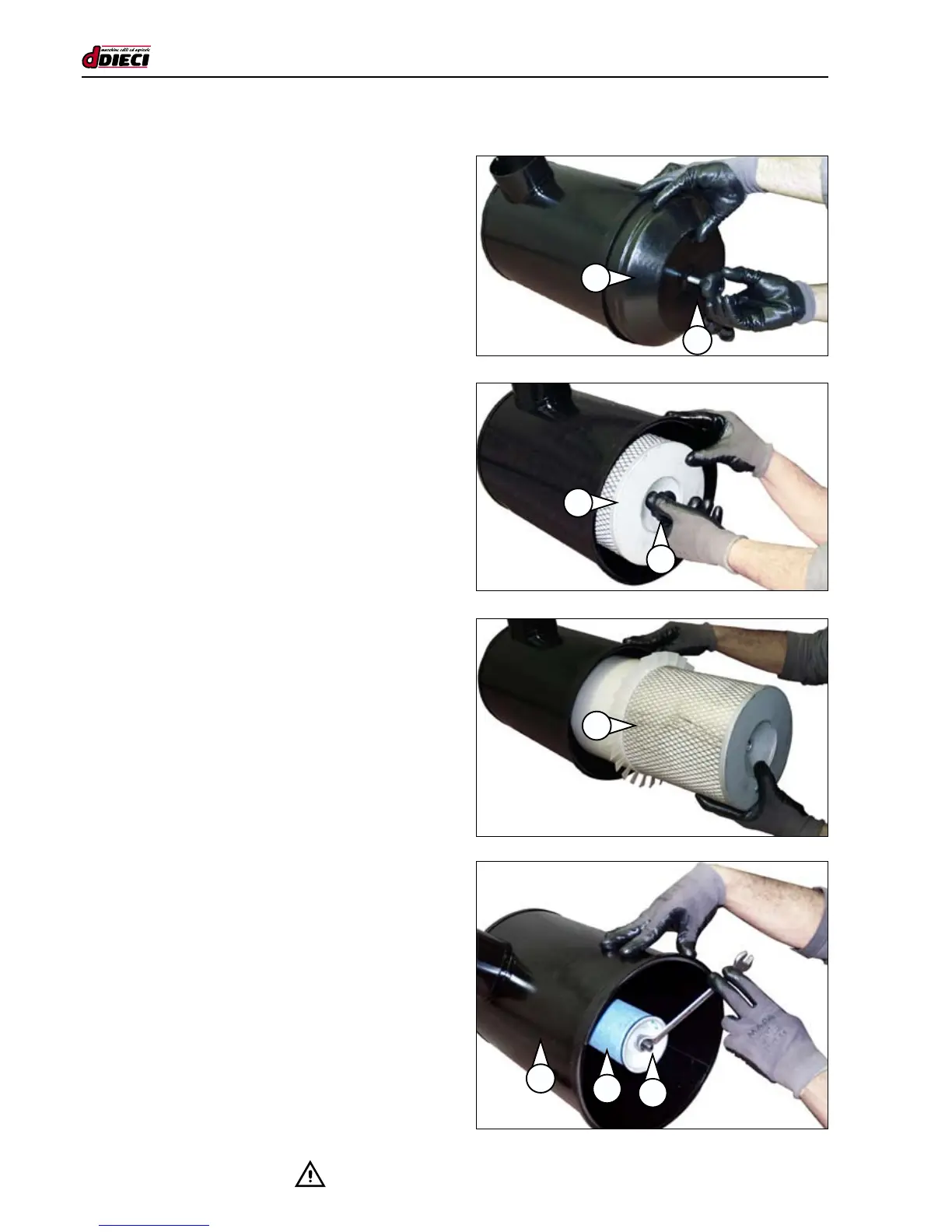

1. Loose the knob “1” (Fig.46/D) anti-clockwise 1. and re-
move the lid “2” (Fig.46/D).
2. Remove the knob “3” (Fig.47/D) by screwing it anti-
clockwise in order to extract the pre-lter ”4” (Fig.47/D).
3. Extract the prelter “4” (Fig.48/D).
4. Disassemble the filter “7” (Fig.49/D) from the body “8”
(g.49/D) loosening the bolt ”6” (Fig.49/D) with a wrench, as
in gure, paying attention not to loose or damage the washer.
