D 20 27

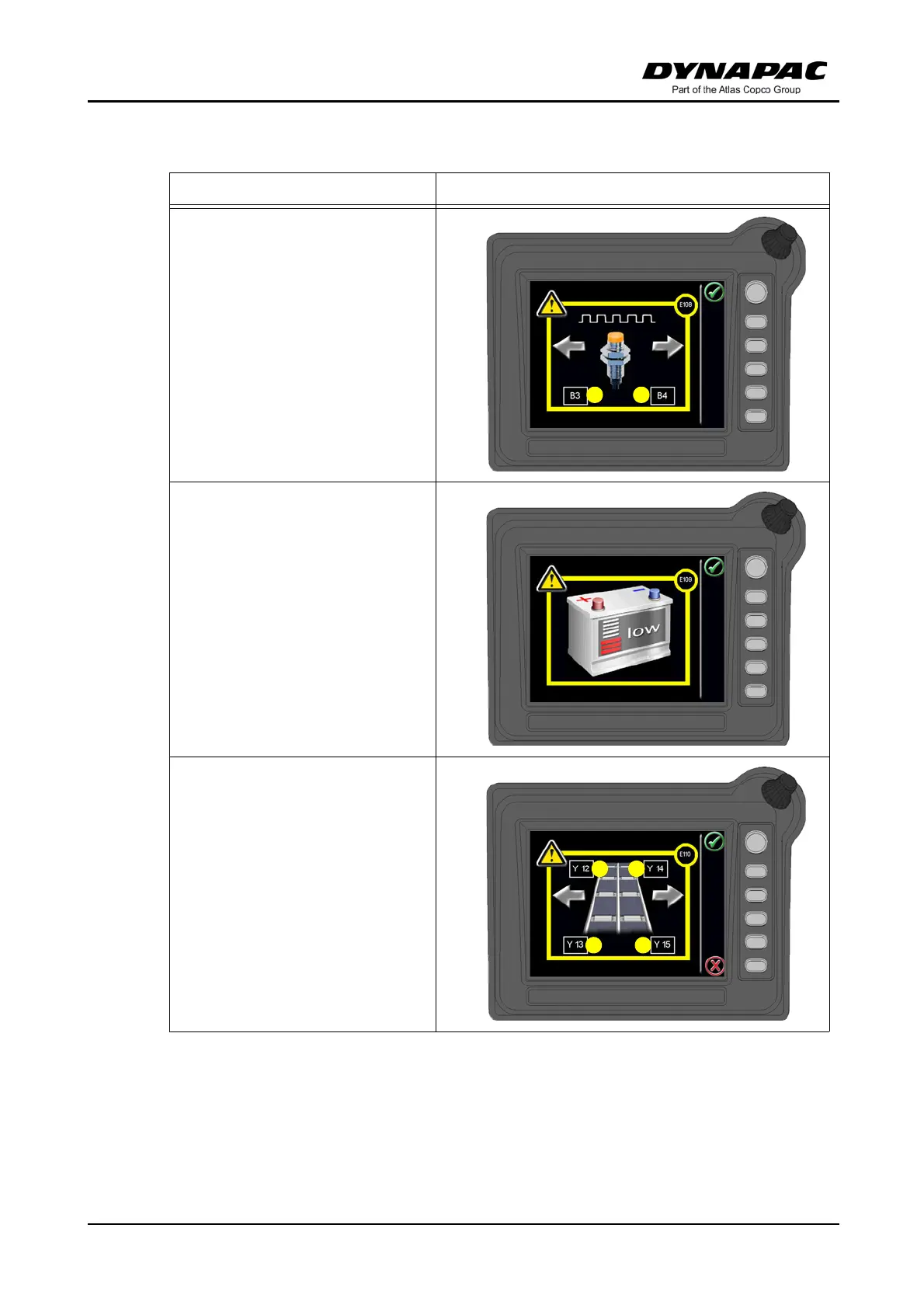

Error No. / meaning Display

Error message 108

- Error - drive unit sensor

Variable:

- left sensor (1)

- right sensor (2)

Error message 109

- Battery voltage too low

Error message 110

- Conveyor drive valves

Variable:

- left conveyor drive (1)

- right conveyor drive (2)

- reverse left

conveyor (3)

- reverse right

conveyor (4)

1 2

3 4

Table of contents3
V Preface13
- 1 General safety instructions14
- 2 CE identification and Declaration of Conformity20
- 3 Guarantee conditions20
- 4 Residual risks21
- 5 Sensibly predictable incorrect usage22
A Correct use and application23
B Vehicle description25
- 1 Application25
- 2 Description of assemblies and functions26
  - 2.1 Vehicle27
    - Construction27
- 3 Danger zones31
- 4 Safety devices32
- 5 Technical data, standard configuration34
- 6 Location of instruction labels and identification plates42
- 7 EN standards54
C 13 Transportation57
- 1 Safety regulations for transportation57
- 2 Transportation on low-bed trailers58
  - 2.1 Preparations58
- 3 Securing the load60
- 4 Securing the load65
- 5 Control panel transport safeguard:68
  - 5.1 After transportation69
- 6 Protective roof (o)70
- 7 Transportation71
  - 7.1 Preparations71
  - 7.2 Driving mode73
- 8 Loading by crane74
- 9 Towing76
- 10 Safely parking the vehicle78
  - 10.1 Lifting the vehicle with hydraulic lifts, lifting points79
D 13 Operation81
- 1 Safety regulations81
- 2 Controls82
  - 2.1 Operating panel82
  - 2.2 Special functions132
    - Reversible conveyor132
- 3 Remote control135
D 20 Operation153
- 1 Operation of the input and display terminal153
- 2 Terminal error messages177
  - 2.1 Drive engine error codes197
  - 2.2 Error codes199
D 31 Operation207
- 1 Operating elements on the paver finisher207
  - 1.1 Control elements on the operator's control station207
D 43 Operation245
- 1 Preparing for operation245
- 2 Malfunctions279
  - 2.1 Problems during paving279
  - 2.2 Malfunctions on the paver finisher or screed281
E 13 Set-up and modification285
- 1 Special notes on safety285
- 2 Optional assemblies286
- 3 Distribution auger287
- 4 Auger extension -Auger Type A-293
- 5 Auger extension -Auger Type B-308
- 6 Offsetting the screed326
- 7 Levelling327
- 8 Limit switch340
  - 8.1 Auger limit switches (left and right) - mounting the PLC version340
- 9 Screed341
- 10 Electrical connections341
  - 10.1 Machine operation without remote control / side board342
F 10 Maintenance343
- 1 Notes regarding safety343
F 24 Maintenance review345
- 1 Maintenance review345
- 2 Optional assemblies346
F 31 Maintenance - conveyor349
- 1 Maintenance - conveyor349
  - 1.1 Maintenance intervals350
  - 1.2 Points of maintenance351
F 40 Maintenance - auger assembly355
- 1 Maintenance - auger assembly355
  - 1.1 Maintenance intervals356
  - 1.2 Points of maintenance358
F 41 Maintenance - auger assembly365
- 1 Maintenance - auger assembly - external drive version365
  - 1.1 Maintenance intervals366
  - 1.2 Points of maintenance367
F 51 Maintenance - engine assembly373
- 1 Maintenance - engine assembly373
  - 1.1 Maintenance intervals374
  - 1.2 Points of maintenance377
F 61 Maintenance - hydraulic system387
- 1 Maintenance - hydraulic system387
  - 1.1 Maintenance intervals388
- 2 Safety instructions for working on the hydraulic system390
  - Sfety instructions hydraulic reservoir390
  - 2.1 Points of maintenance391
F 72 Maintenance - travel drive, steering403
- 1 Maintenance - travel drive, steering403
  - 1.1 Maintenance intervals404
  - 1.2 Points of maintenance406
F 83 Maintenance - electrical system413
- 1 Maintenance - electrical system413
  - 1.1 Maintenance intervals414
  - 1.2 Points of maintenance415
F 90 Maintenance - lubricating points427
- 1 Maintenance - lubricating points427
  - 1.1 Maintenance intervals428
  - 1.2 Points of maintenance429
    - Central lubrication system (1)429
    - Bearing points (2)433
F 100 Tests, stopping ...435
- 1 Tests, checks, cleaning, stopping435
  - 1.1 Maintenance intervals436
- 2 General visual inspection437
- 3 Inspection by an expert437
- 4 Cleaning438
  - 4.1 Cleaning the hopper439
  - 4.2 Cleaning the conveyor and auger439
- 5 Preserving the paver finisher440
- 6 Environmental protection, disposal441
  - 6.1 Environmental protection441
  - 6.2 Disposal441
F 111 Lubricants and operating substances443
- 1 Lubricants and operating substances443
- 2 Optional assemblies444
  - 2.1 Capacities446
- 3 Lubricant specifications447
