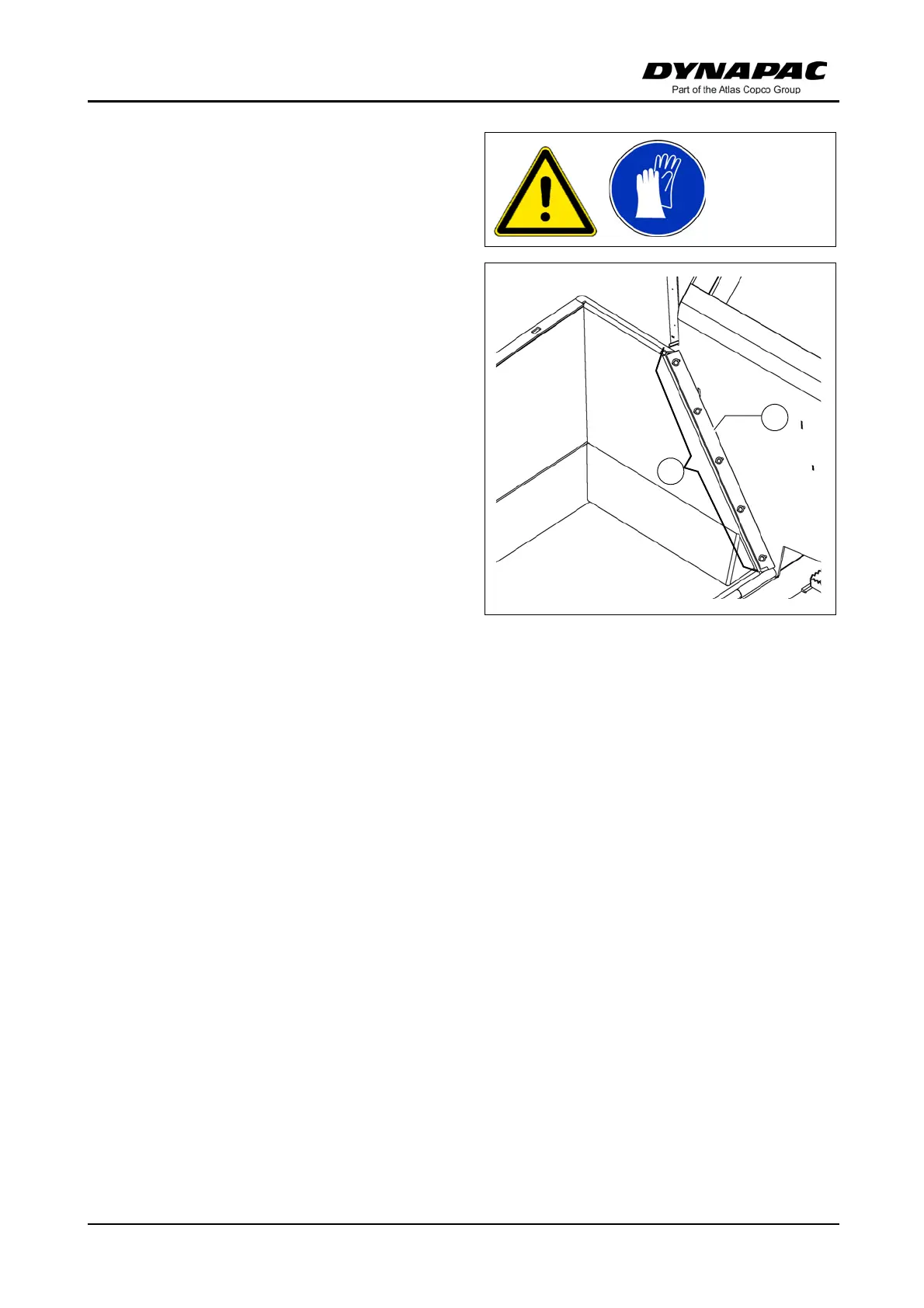

5.6 Hopper scraper

To reduce the gap between hopper and

machine frame, the hopper scrapers (1)

must be adjusted at both hopper halves.

- Loosen the mounting screws (2).

- Adjust a gap of 6 mm across the whole

length of the scraper.

- Retighten the mounting screws (2)

properly.

Risk of injury due to sharp-edged parts!

Wear suitable safety gloves to protect

your hands!
