Replacing/dismantling and installing the wheels
f
The jack must be rated for at least 10t.
f
The jack is only intended to lift a load and not as a support. Work should only be per-
formed to and under raised vehicles when they have been secured and correctly sup-
ported to prevent them tilling over and rolling or sliding away.
f
The jack must only be used on smooth, firm ground.
f
Roller-type jacks must not be moved when under load.
f
Chocks or supporting beams positioned so that they cannot be shifted or tilted must
be adequately dimensioned and be able to take the corresponding weight.
f
There must not be anyone on the machine while it is being lifted.

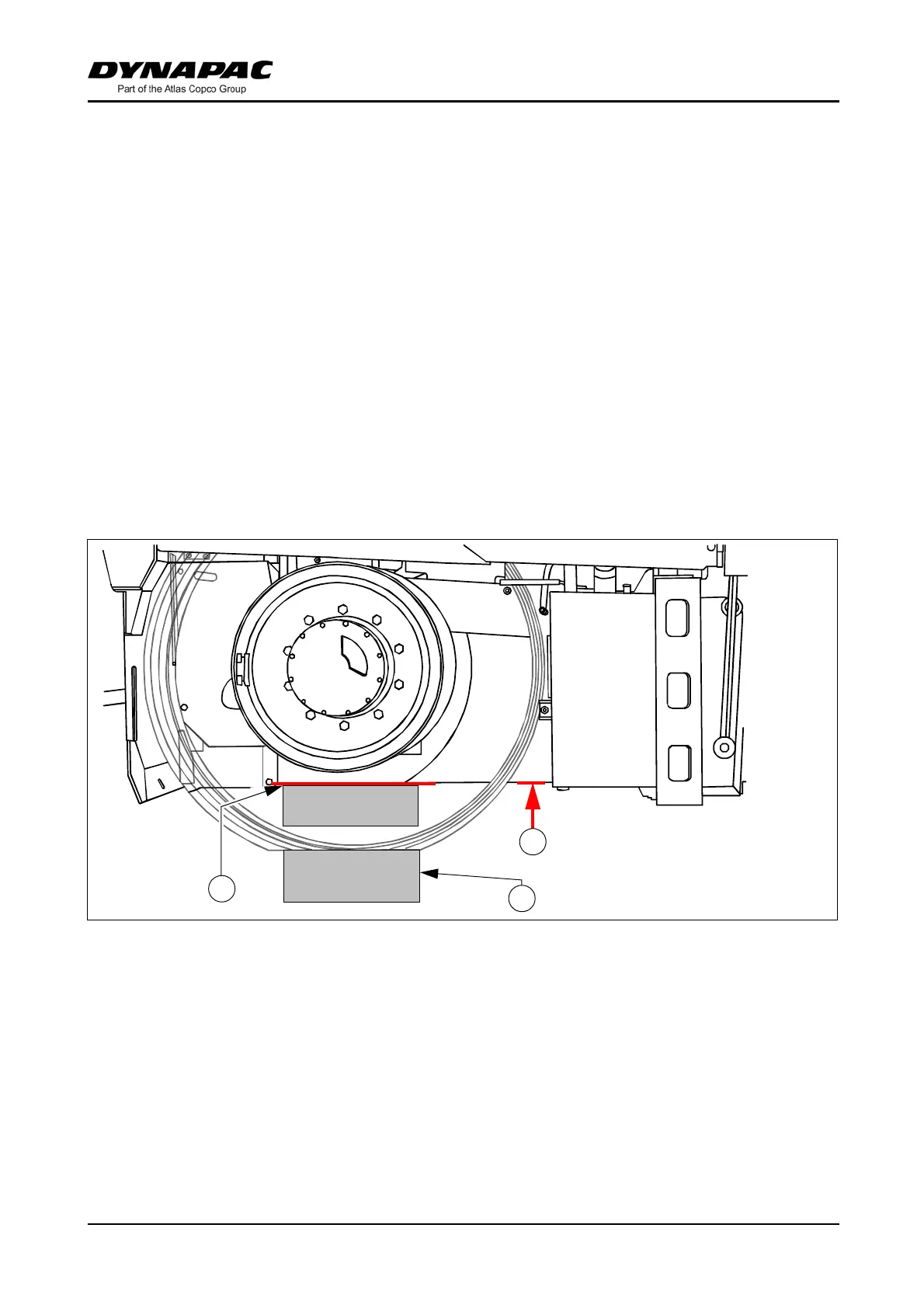

- Dismantle the arm.
- Lift the machine with the jack at the intended position (1) under the machine frame.
- Place the wooden block (2) under the wheel as a safeguard.
- Place another wooden block under the machine frame at point (3).
- Remove the wooden block (2) and gently lower the machine onto the remaining
wooden block (3).
- Dismantle the wheel nuts and remove the wheel.
A
Reassemble in reverse order.
1
3
2
