Lubrication points (3)
A
Manual lubrication does not apply for ve-
hicles with central lubrication system.
King pins
A

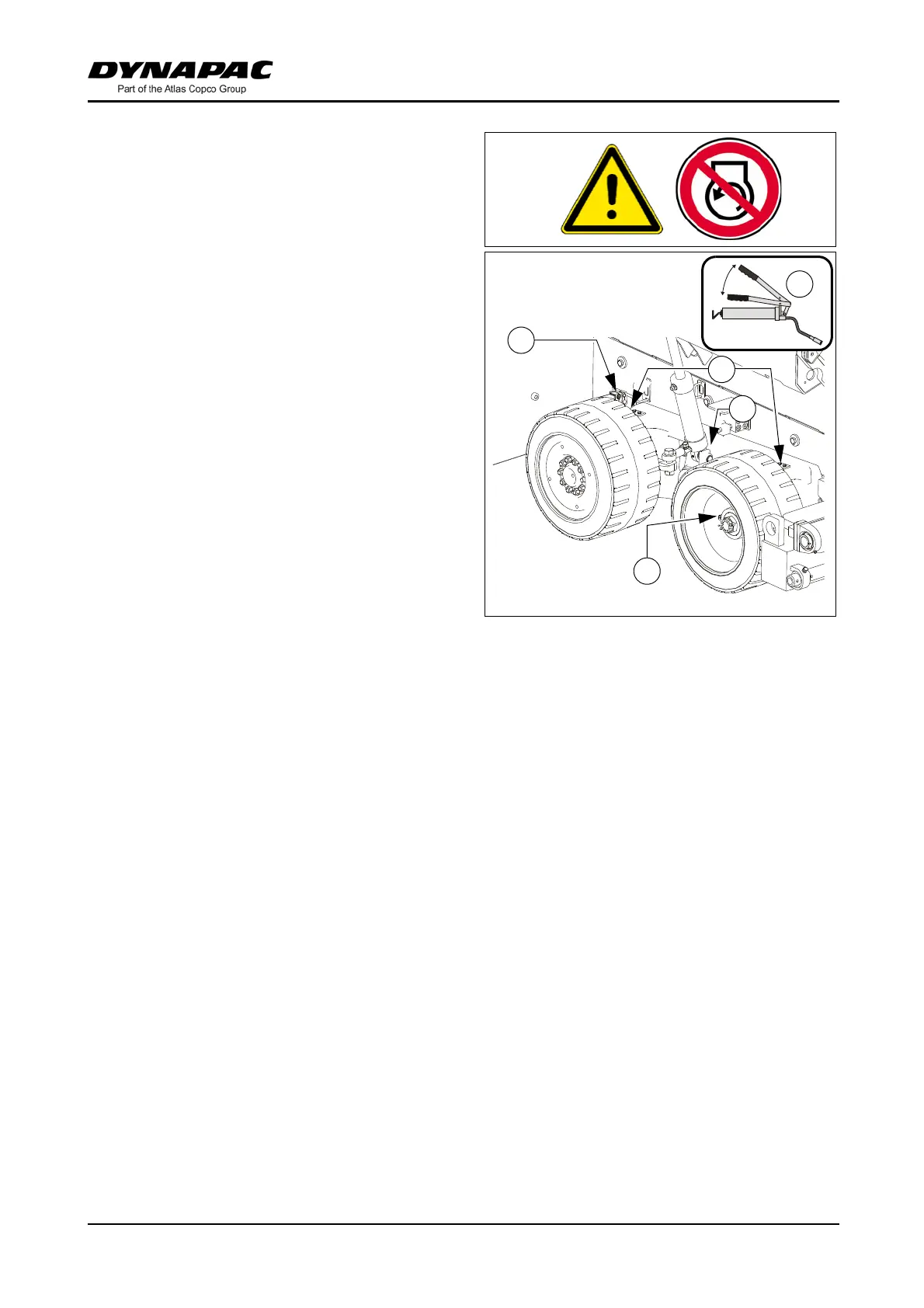

Each of the four king pins is equipped
with one lubricating nipple (A).
Steering
A
The lubricating nipples (B) are on the
rear axle of the main frame and supply
the steering linkage with grease via a lu-
brication line.
Floating axle
A
The lubricating nipples (C) are located
on the left and right of the floating axle's
centre bearing.
Wheel bearings (o)
A
Each of the wheels is equipped with a lubricating nipple (D) on the wheel hub.
In the case of front-wheel drive, the drive wheels have no lubricating nipples.
