C 13 10
4.2 Securing at the rear - screed with side board
m

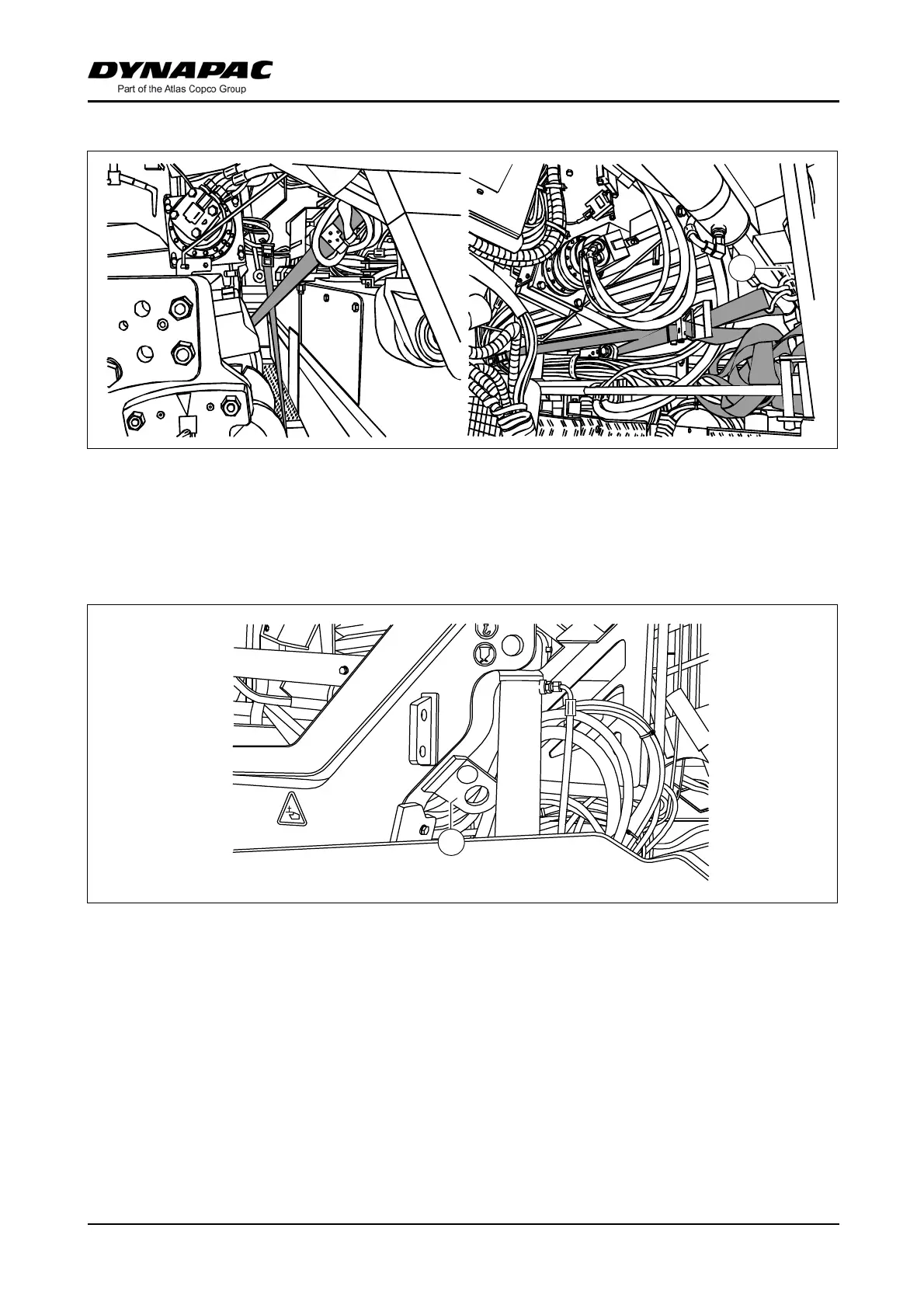

Diagonal lashing secures the paver finisher at the rear, at right angles to the direction
of travel using the lashing points on the paver finisher (eyebolts) and on the low-load
trailer. Fasten the lashing straps as shown.
Screw the supplied eyebolts (7) first of all in the holes provided in the arms.
A
Alternatively, additional lashing points (8) are provided on the chassis at the rear.
These should be used preferably for transports without screed / without arms.
