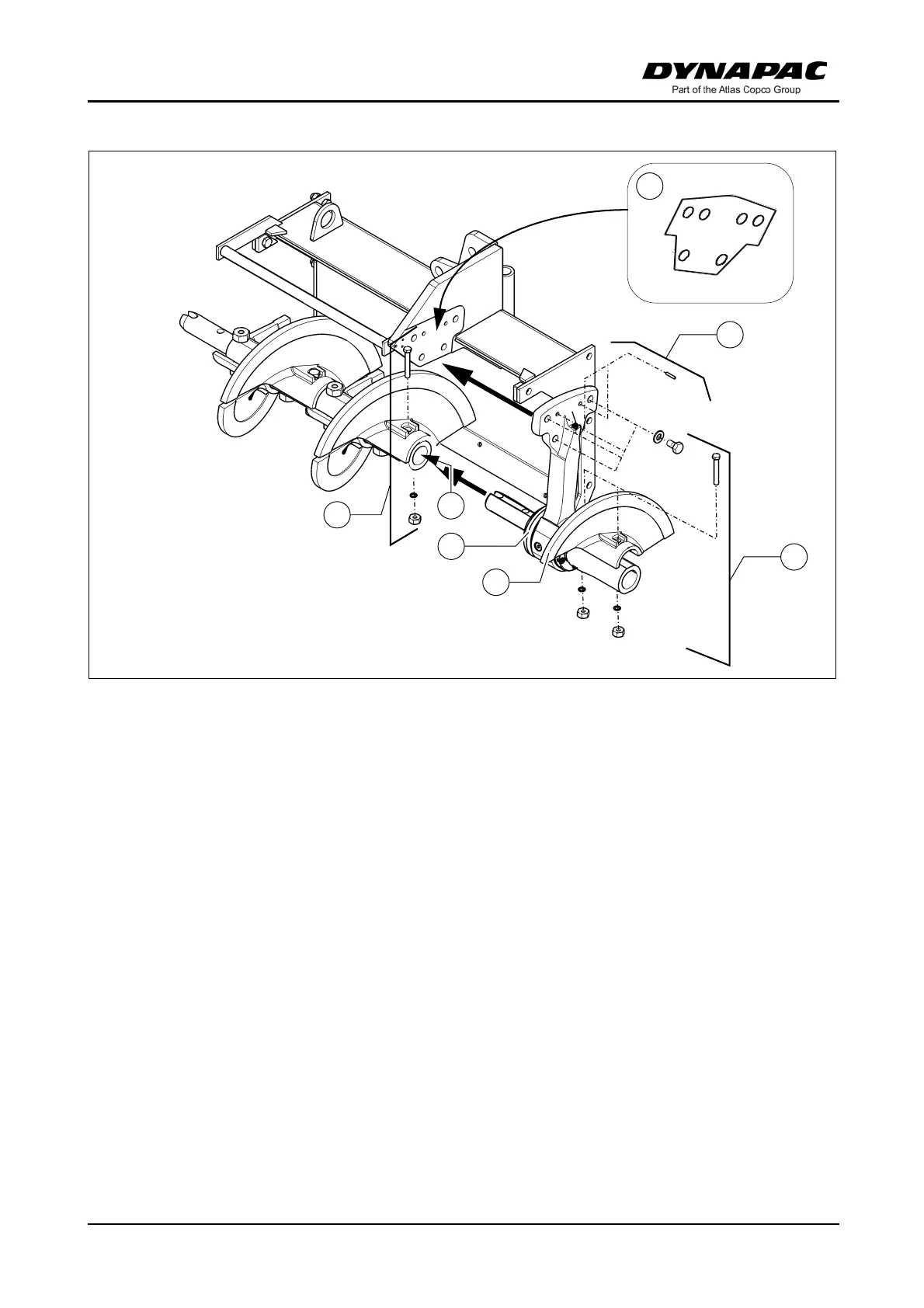

Mounting the outer auger bearing
- Dismantle the assembly parts (1) of the adjacent auger blade, remove plug (2).
- Insert the outer auger bearing (3) into the auger extension.
- Secure the outer auger bearing to the brace shaft with the relevant assembly parts
(4) (bolts, washers, pins).
A
If necessary, insert fitted plates (5)!
- Reinstall the previously removed assembly parts (1) and simultaneously tighten the
auger shaft and bearing shaft bolts.
- Mount the auger half (5) on the outer side of the bearing with the relevant assembly
parts (6) (bolts, washers, nuts).
- Insert the plug (2) at the end of the auger.
