F 41 3

1.2 Points of maintenance

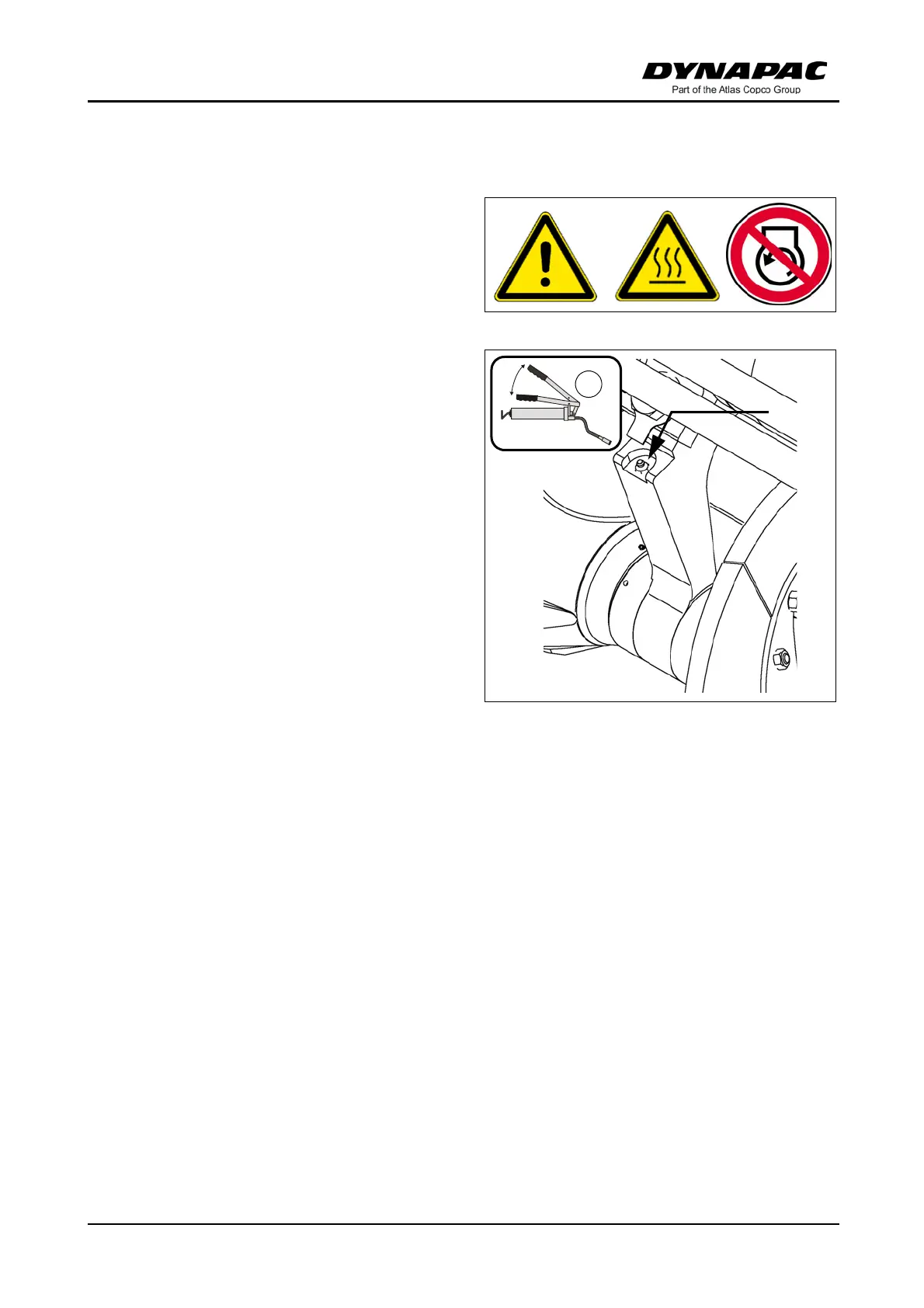

Outer auger bearing (1)

The grease nipples are located on each

side at the top of the outer auger bear-

ings. These nipples must be lubricated

each time work is finished.

Lubricate the outer auger bearing while

they are warm to force out any bitumen

residues.

Manual lubrication no longer applies

when equipped with the optional central

lubrication system.

Table of contents3
V Preface13
- 1 General safety instructions14
- 2 CE identification and Declaration of Conformity20
- 3 Guarantee conditions20
- 4 Residual risks21
- 5 Sensibly predictable incorrect usage22
A Correct use and application23
B Vehicle description25
- 1 Application25
- 2 Description of assemblies and functions26
  - 2.1 Vehicle27
    - Construction27
- 3 Danger zones31
- 4 Safety devices32
- 5 Technical data, standard configuration34
- 6 Location of instruction labels and identification plates42
- 7 EN standards54
C 13 Transportation57
- 1 Safety regulations for transportation57
- 2 Transportation on low-bed trailers58
  - 2.1 Preparations58
- 3 Securing the load60
- 4 Securing the load65
- 5 Control panel transport safeguard:68
  - 5.1 After transportation69
- 6 Protective roof (o)70
- 7 Transportation71
  - 7.1 Preparations71
  - 7.2 Driving mode73
- 8 Loading by crane74
- 9 Towing76
- 10 Safely parking the vehicle78
  - 10.1 Lifting the vehicle with hydraulic lifts, lifting points79
D 13 Operation81
- 1 Safety regulations81
- 2 Controls82
  - 2.1 Operating panel82
  - 2.2 Special functions132
    - Reversible conveyor132
- 3 Remote control135
D 20 Operation153
- 1 Operation of the input and display terminal153
- 2 Terminal error messages177
  - 2.1 Drive engine error codes197
  - 2.2 Error codes199
D 31 Operation207
- 1 Operating elements on the paver finisher207
  - 1.1 Control elements on the operator's control station207
D 43 Operation245
- 1 Preparing for operation245
- 2 Malfunctions279
  - 2.1 Problems during paving279
  - 2.2 Malfunctions on the paver finisher or screed281
E 13 Set-up and modification285
- 1 Special notes on safety285
- 2 Optional assemblies286
- 3 Distribution auger287
- 4 Auger extension -Auger Type A-293
- 5 Auger extension -Auger Type B-308
- 6 Offsetting the screed326
- 7 Levelling327
- 8 Limit switch340
  - 8.1 Auger limit switches (left and right) - mounting the PLC version340
- 9 Screed341
- 10 Electrical connections341
  - 10.1 Machine operation without remote control / side board342
F 10 Maintenance343
- 1 Notes regarding safety343
F 24 Maintenance review345
- 1 Maintenance review345
- 2 Optional assemblies346
F 31 Maintenance - conveyor349
- 1 Maintenance - conveyor349
  - 1.1 Maintenance intervals350
  - 1.2 Points of maintenance351
F 40 Maintenance - auger assembly355
- 1 Maintenance - auger assembly355
  - 1.1 Maintenance intervals356
  - 1.2 Points of maintenance358
F 41 Maintenance - auger assembly365
- 1 Maintenance - auger assembly - external drive version365
  - 1.1 Maintenance intervals366
  - 1.2 Points of maintenance367
F 51 Maintenance - engine assembly373
- 1 Maintenance - engine assembly373
  - 1.1 Maintenance intervals374
  - 1.2 Points of maintenance377
F 61 Maintenance - hydraulic system387
- 1 Maintenance - hydraulic system387
  - 1.1 Maintenance intervals388
- 2 Safety instructions for working on the hydraulic system390
  - Sfety instructions hydraulic reservoir390
  - 2.1 Points of maintenance391
F 72 Maintenance - travel drive, steering403
- 1 Maintenance - travel drive, steering403
  - 1.1 Maintenance intervals404
  - 1.2 Points of maintenance406
F 83 Maintenance - electrical system413
- 1 Maintenance - electrical system413
  - 1.1 Maintenance intervals414
  - 1.2 Points of maintenance415
F 90 Maintenance - lubricating points427
- 1 Maintenance - lubricating points427
  - 1.1 Maintenance intervals428
  - 1.2 Points of maintenance429
    - Central lubrication system (1)429
    - Bearing points (2)433
F 100 Tests, stopping ...435
- 1 Tests, checks, cleaning, stopping435
  - 1.1 Maintenance intervals436
- 2 General visual inspection437
- 3 Inspection by an expert437
- 4 Cleaning438
  - 4.1 Cleaning the hopper439
  - 4.2 Cleaning the conveyor and auger439
- 5 Preserving the paver finisher440
- 6 Environmental protection, disposal441
  - 6.1 Environmental protection441
  - 6.2 Disposal441
F 111 Lubricants and operating substances443
- 1 Lubricants and operating substances443
- 2 Optional assemblies444
  - 2.1 Capacities446
- 3 Lubricant specifications447
