Mounting the big ski bracket on the crossbeam
A
The entire big ski construction is mount-
ed laterally on the crossbeams. To do
so, the two crossbeam brackets must
first be mounted. The crossbeam brack-
et design differs slightly depending on
the paver finisher which is used.
During assembly, it is possible either to
bolt the bracket directly at the existing
bores or, as described in the following, to
secure it to the crossbeam using clamp-
ing plates.
A
The front bracket is mounted directly be-
hind the traction point; the rear bracket is
mounted at approximately the height of
the auger.

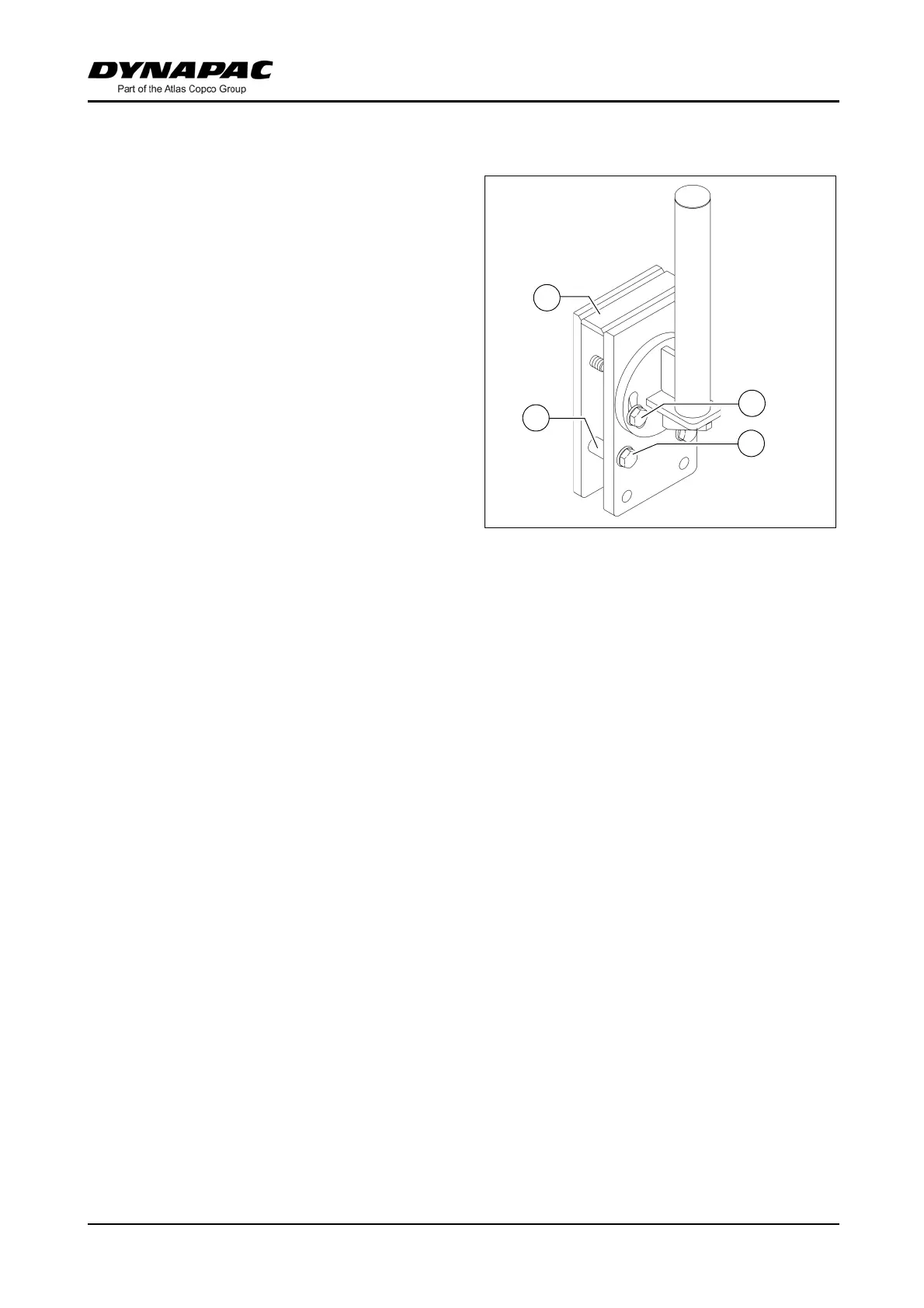

- Place both brackets (1) over the crossbeam at the corresponding point and mount
with bolts (2) and sleeves (3).
A
For different crossbeam thicknesses, use the mounting's corresponding bores.
- The mounting tube is aligned via the two bolts (4).
A
Align the bracket vertically.
