3 Danger zones

m

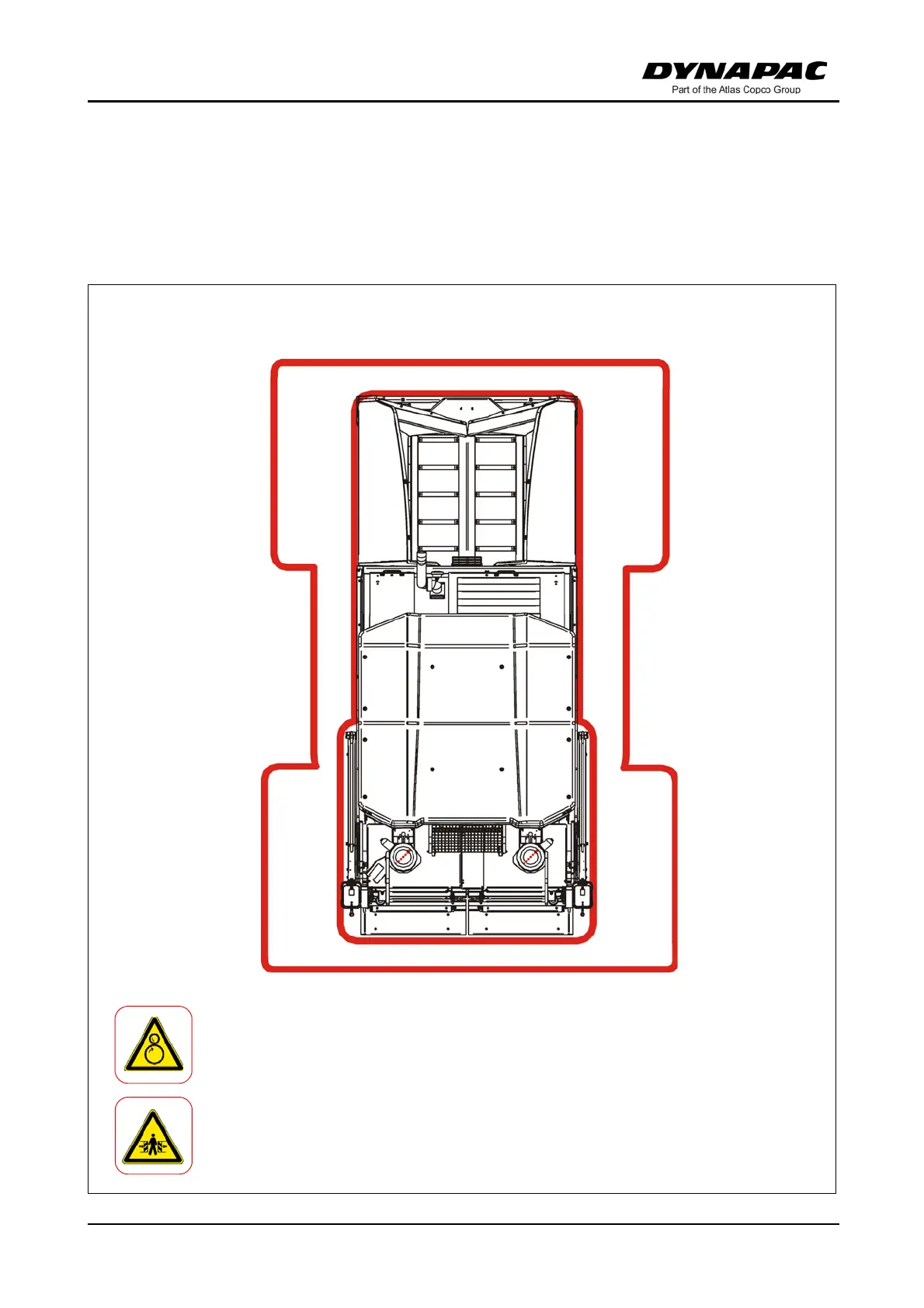

In these vehicle working areas, there may be a risk of drawing in or crushing during

normal operation caused by rotating and conveying elements, or by components in

motion.

Danger of being pulled in!

Danger of crushing!
