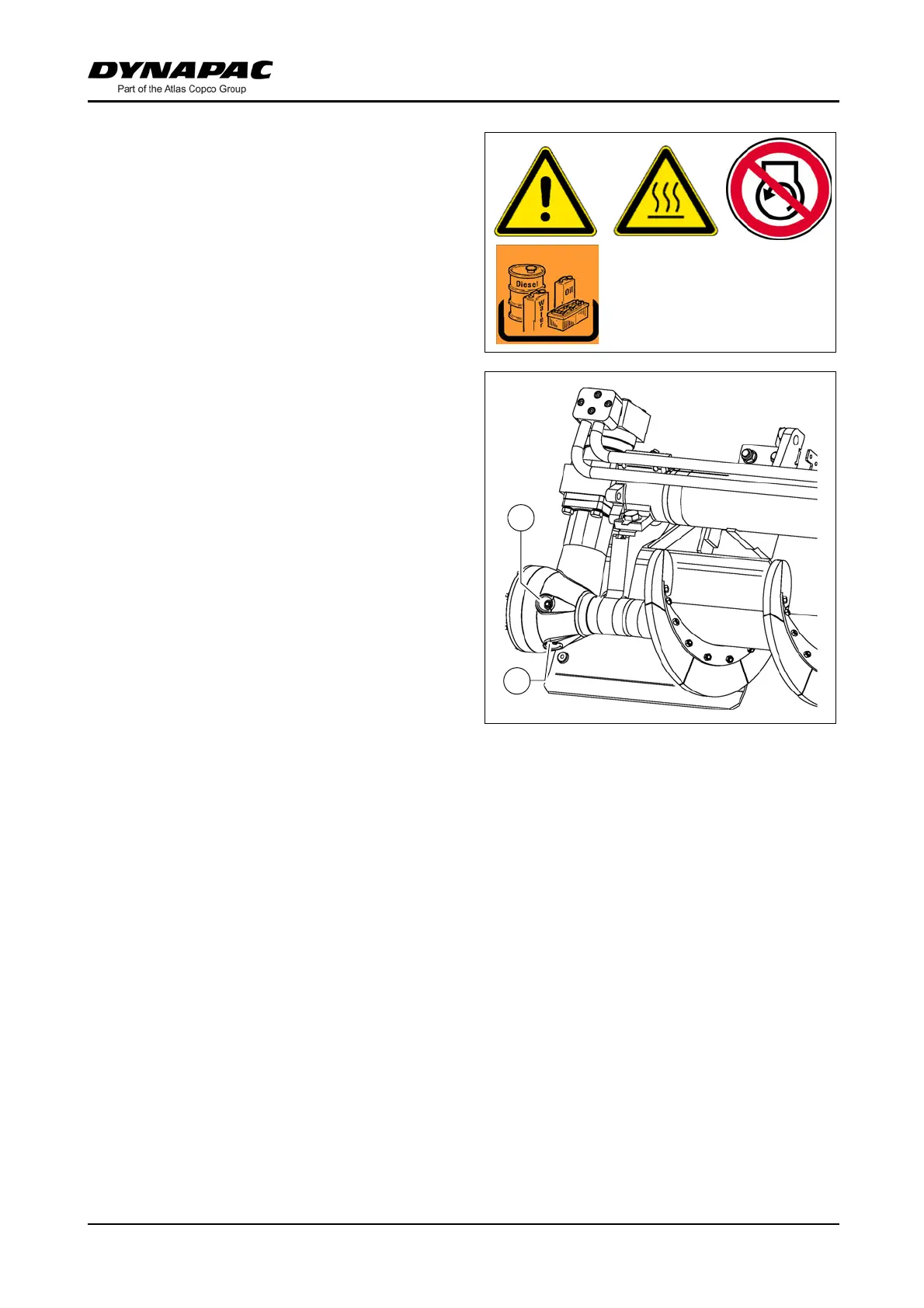

F 41 6
Auger bevel gear
(left/ right) (4)
-For oil level check unscrew and re-
move the inspection bolt/filler screw (A).
A
When oil level is correct, the oil comes
up to the lower edge of the inspection
bore or a small amount of oil escapes
through the aperture.
For filling in the oil:
- Unscrew the inspection bolt/filler
screw (A).
- Fill the specified oil into the filler and
inspection bore (A) until the oil level
has reached the lower edge of the
bore (A).
- Screw the inspection bolt/filler screw
(A) back in.
To change oil:
A
The oil should be changed when at oper-
ating temperature.
- Unscrew and remove the inspection
bolt/filler screw (A) and drain plug (B).
- Drain the oil.
- Tighten the drain plug (B) back in.
- Pour the specified oil into the filler and inspection bore (A) until the oil level has
reached the lower edge of the bore (A).
- Screw the inspection bolt/filler screw (A) back in.
m
Make sure to clean the screw and the vicinity of the drain bore!
A
B
