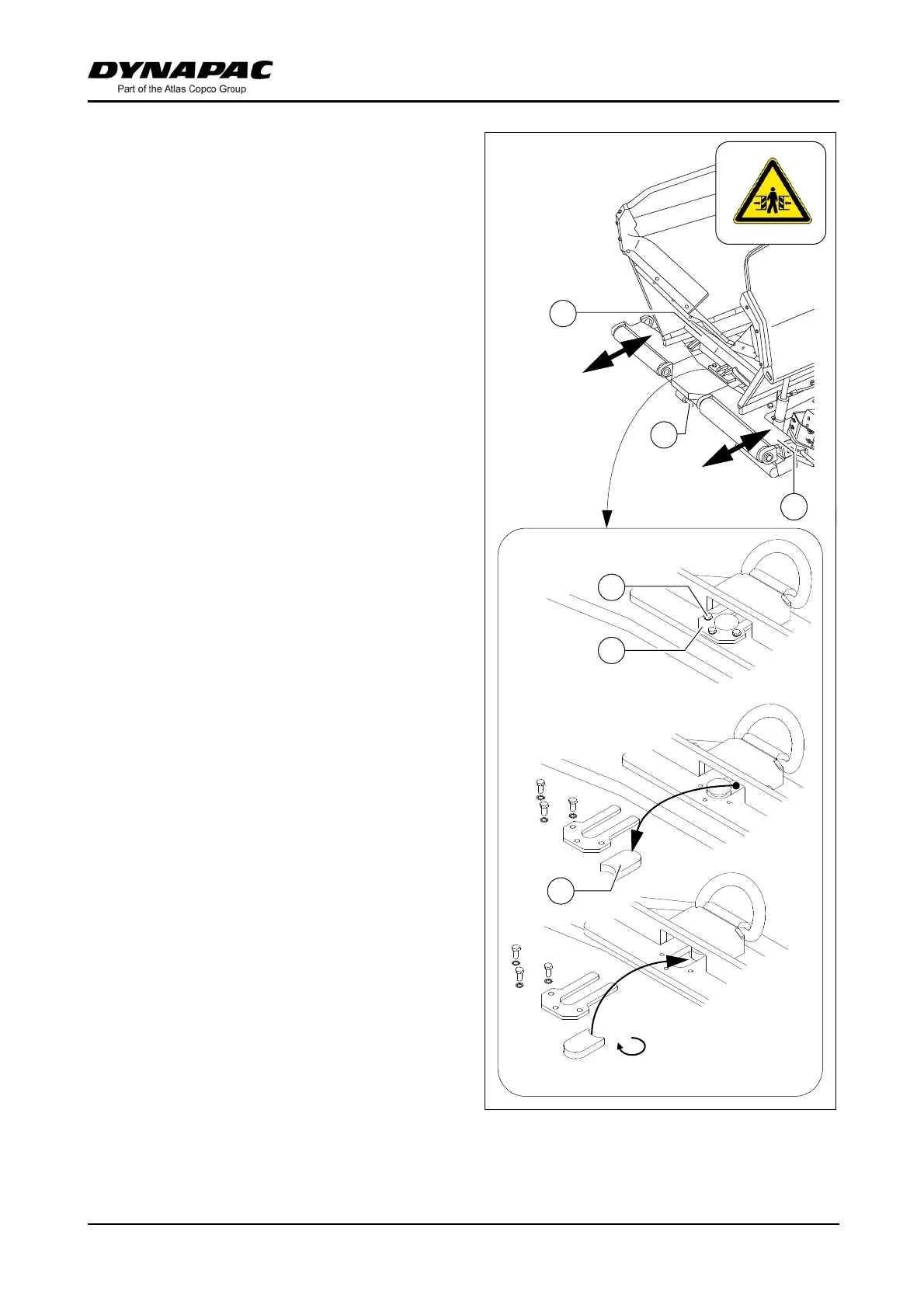

D 31 32
Push roller crossbar,
adjustable
For adaptation to various truck design
types, the push roller crossbar (1) can be
shifted to two positions.
A
The adjustment travel is 90 mm.
- Close the hopper halves to lift the hop-
per flap (2).
- After removing the bolts (4), remove
the locking plate (3) on the lower side
of the crossbar.
- Remove insert plate (5).
- Move the push roller crossbar as far
as it will go to the front / rear position.
A
Shift the push roller crossbar at the tow-
ing eye (6) or use a suitable assembly le-
ver in its guide (left and right) to push it
into the corresponding position.
- Turn the insert plate (5) 180° and rein-
sert into the groove in the front or rear
position.
- Properly reinstall the locking plate (3)
with bolts (4).
2
3
4
1
6
4
3
5
