Dynapac SD2500W - 3.5 Height adjustment for large working widths; with brace -Auger Type B-

E 13 7
3.5 Height adjustment for large working widths / with brace
-Auger Type B-

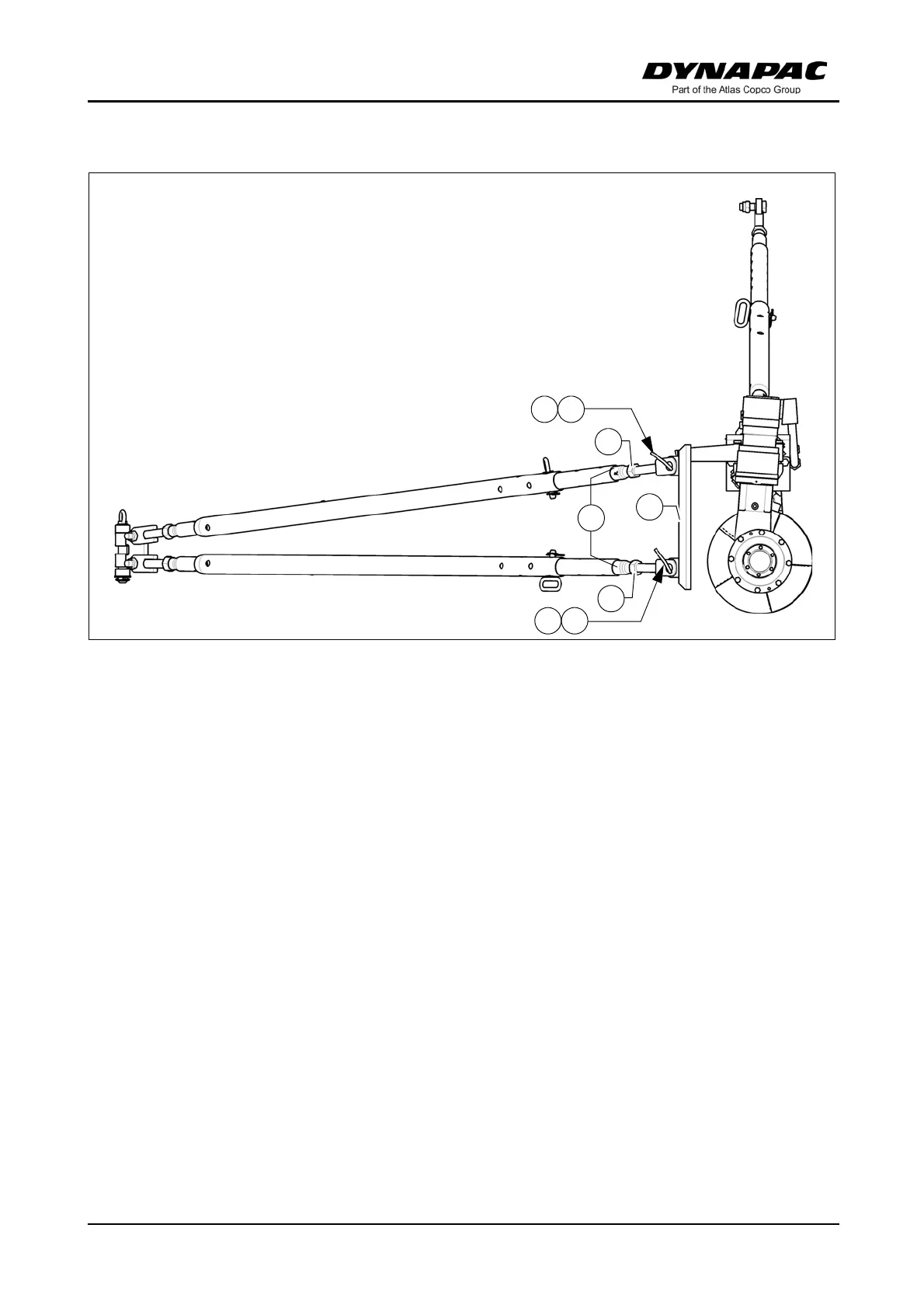

Auger height adjustment for large working widths can be carried out with a hinged
brace:
m
Only adjust the height of the auger with the support retaining pins removed!
- Remove the support (3) split pins (1) and retaining pin (2) on both sides of the ve-
hicle.
- Push the fork heads of the braces from the support shackles.
- Carry out height adjustment.
- Push the fork heads of the braces onto the support shackles.
- Install the split pin (1) and retaining pin (2) again.
A
If the retaining pins (2) cannot be set in the new position, extend or shorten the braces by
turning the adjustment rods until a through hole is available to set the retaining pin (2).
- Loosen lock nuts (4).
A
The adjustment rods (5) are each equipped with a bore. A suitable drift can be used
to adjust the length of the adjustment rod here.
1 2
4
4
3
5
1 2
