F 51 6

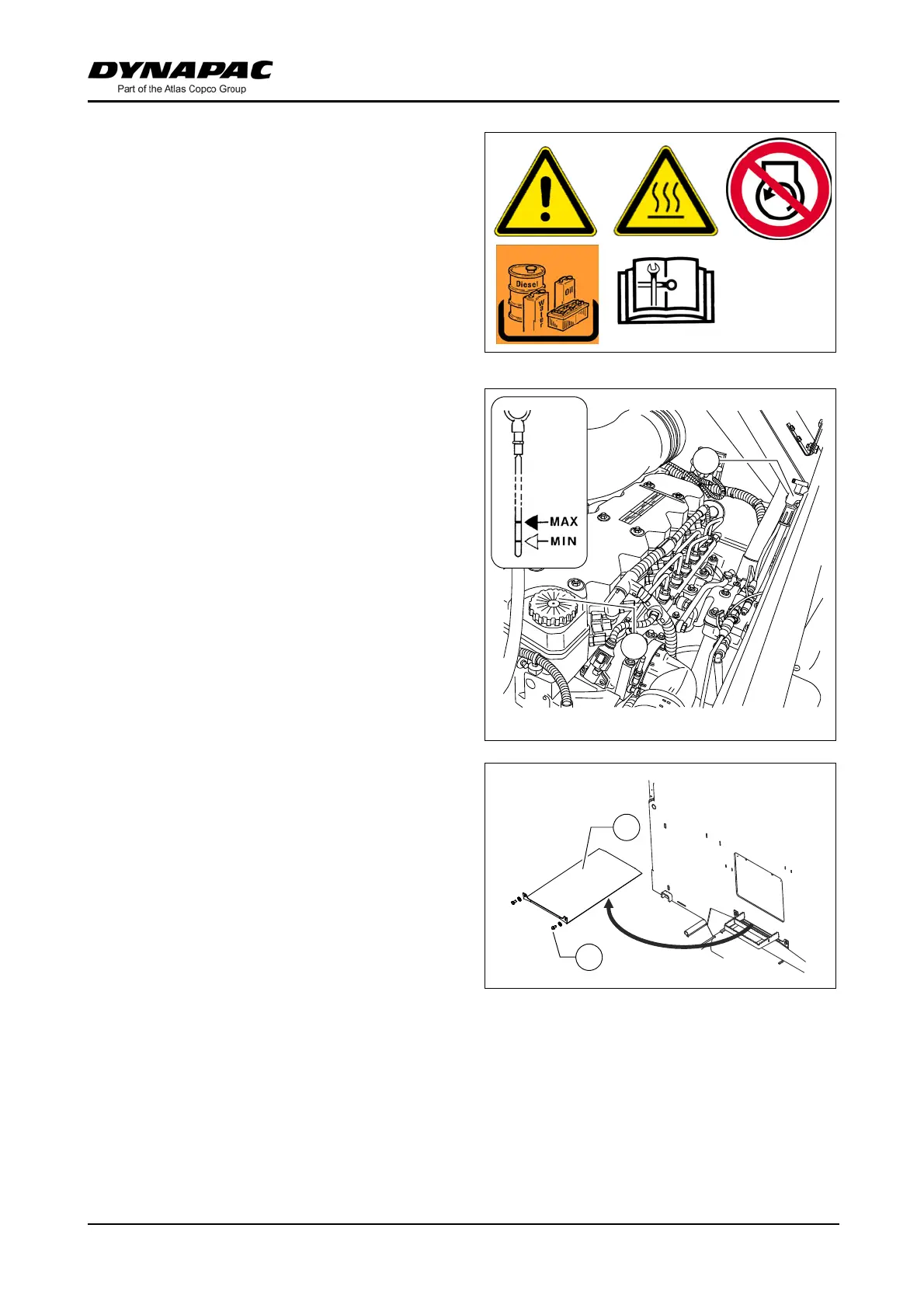

Engine lube oil system (2)
Check oil level
A
In case of correct oil level, the oil is
between the two notches of the
dipstick (A).
A
Only check the oil level when the finisher
is in a horizontal position!
m
Too much oil in engine damages gas-
kets; too little oil results in overheating
and engine destruction.
For filling in the oil:
- Remove cap (B).
- Fill up oil to correct level.
- Return cap (B).
- Use dipstick to check level again.
Oil change:
A
The oil drain screw is accessed via the
cover (C) in the vehicle's material tunnel:
- Remove the bolts (D) from the frame
and pull the cover (C) out in the direc-
tion of travel.
- After completing the maintenance
work, reinstall the cover (C) properly.
A
Change the oil when the engine is at op-
erating temperature
