Dynapac SD2500W - Mount guides, guide extensions and supports

E 13 29

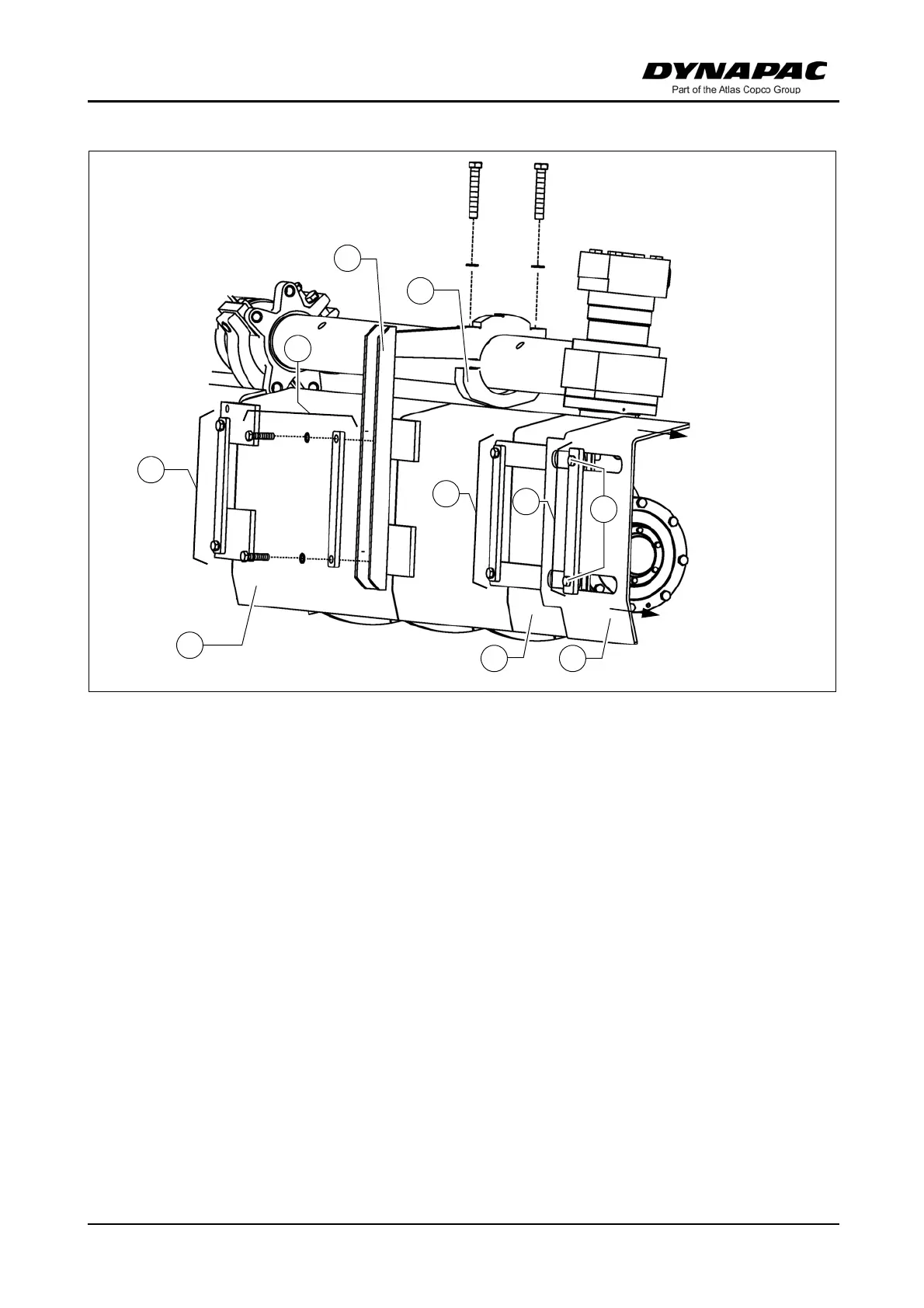

Mount guides, guide extensions and supports
A
To ensure an optimum material flow – especially in the case of large paving widths –
guides (1) must be installed.
- Secure the additional guide (1) to the basic unit or the adjacent guide with the rel-
evant assembly parts (2) (bolts, washers, bearing plates).
- Fasten a guide extension (3) and an end piece (4) to the outermost guide, using the
relevant assembly parts (5).
- After loosening the bolts (6), adjust the end piece to the required width. Then
retighten the bolts (6).
A
For larger working widths, additional supports (7) must be attached to the telescopic
tube to stabilise the guides. Depending on the working width, supports with shackles
may have to be fitted for fastening the braces.
- Dismantle support lower part (8).
- Set the support (7) on the telescopic tube and mount together with the correspond-
ing guide, using the relevant assembly parts (9) (bolts, washers, bearing plate).
- Fit the lower part of the side shield (8) back in position again correctly.
1
2
9
3 4
5
5
6
7
8
