Rotary beacon (o)
m
The function of the rotary beacon must
be checked daily before starting work.

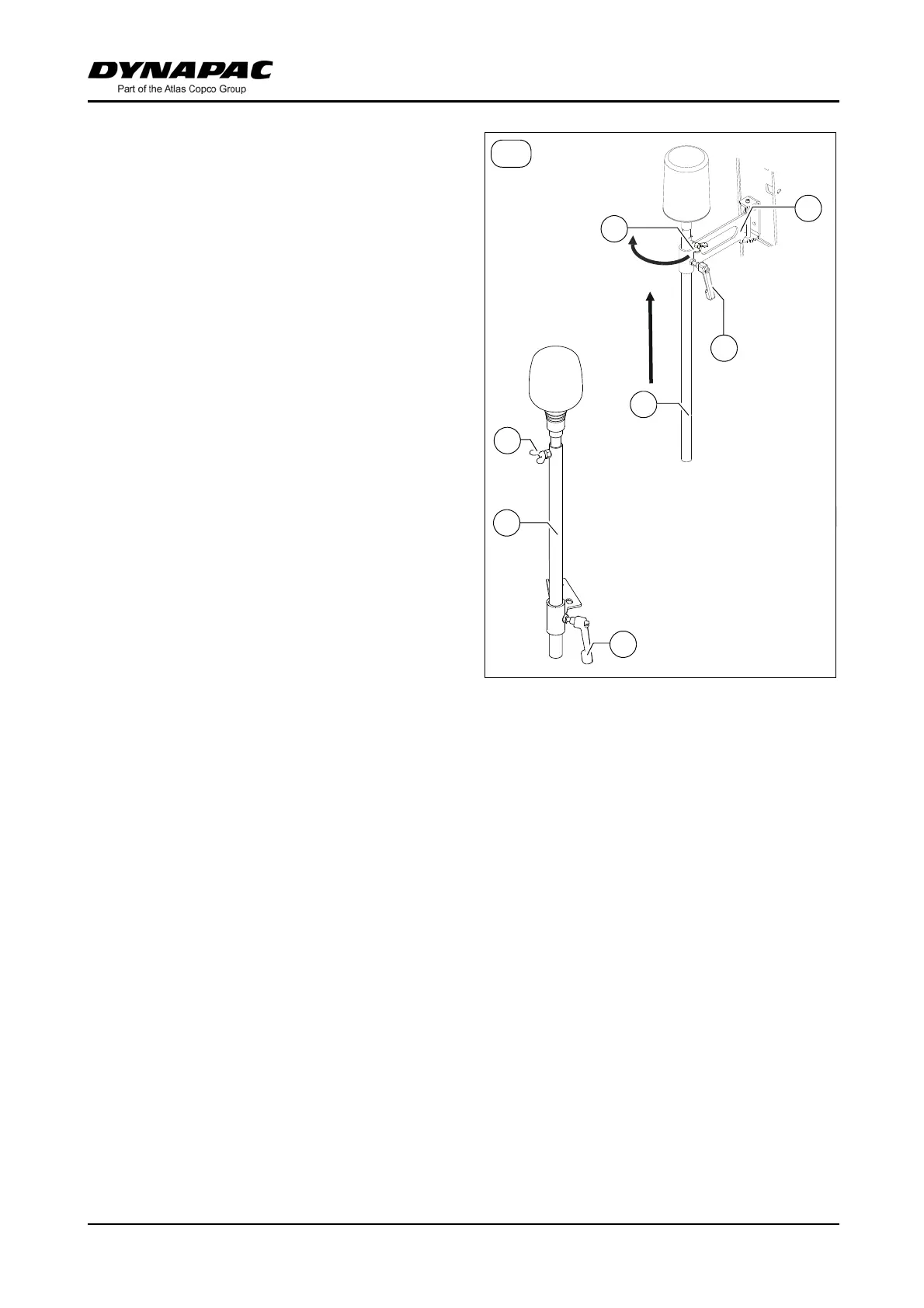

- Place the rotary beacon onto the
plug-in contact and secure with a
wing bolt (1).
- Slide the rotary beacon with the tube
(2) out to the desired height and se-
cure with the clamping bolt (3).
- Vehicle version with protective roof:
Raise the bracket (4), swivel to the
outer position and allow to engage
there.
- Activate the function on the operating
panel as necessary.
A
The rotary beacon is easy to remove and
should be stored securely at the end of
work.
