5 Auger extension

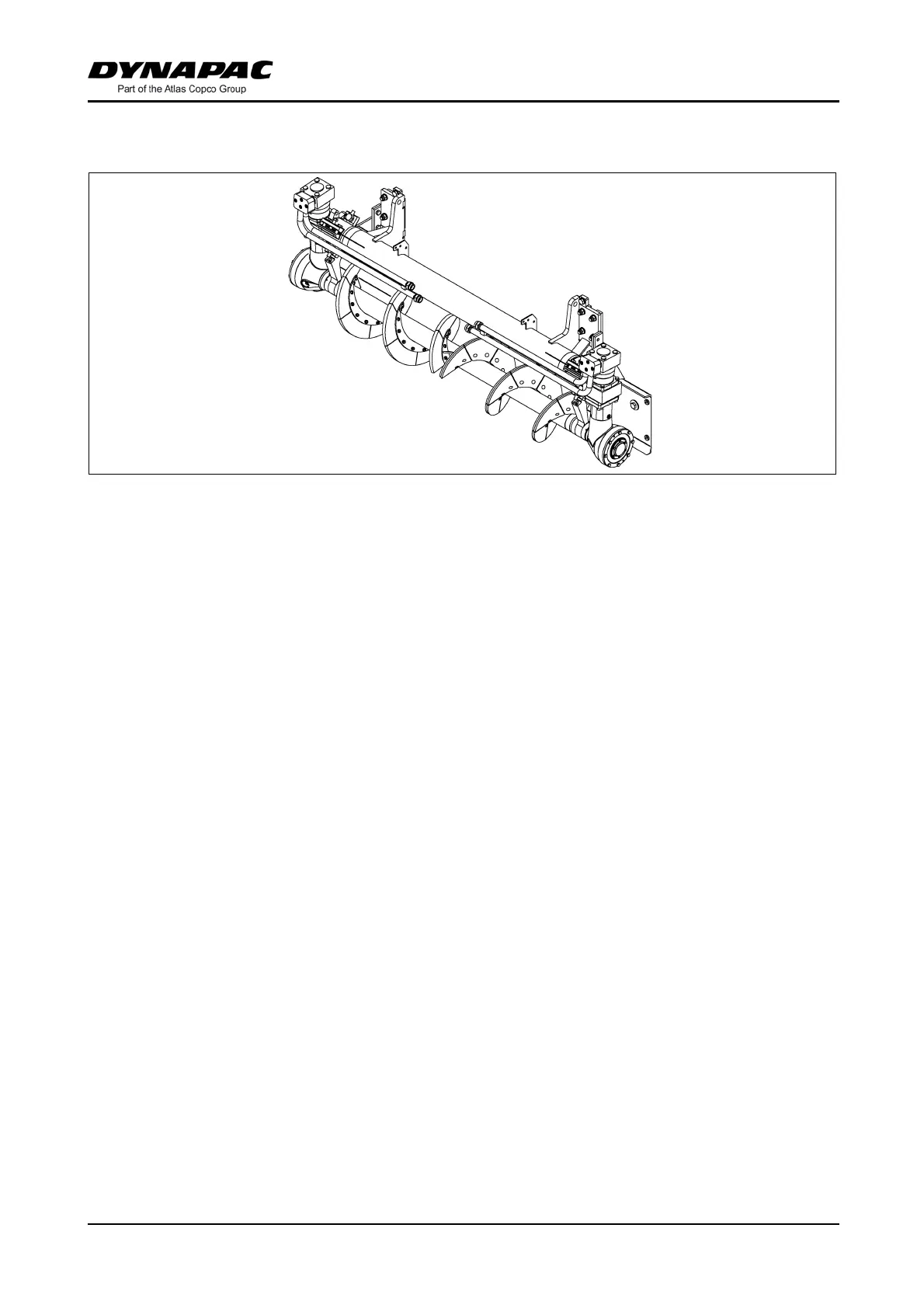

-Auger Type B-
Depending on the type of screed, the most diversified working widths can be reached.
A
Auger and screed extension must match.
Refer to the appropriate chapter "Set-up and modification" in the Operating instruc-
tions for the screed:
– screed extension chart
To obtain the desired working width, the corresponding screed extensions, auger
width extensions, guides or cut-off shoes must be mounted.
A
Refer to the auger extension chart to determine which parts of the conveyor system
are required for the desired paving width in which position.
f
The diesel engine must be switched off whenever work is performed on the auger.
Danger of injuries!
