E 13 44

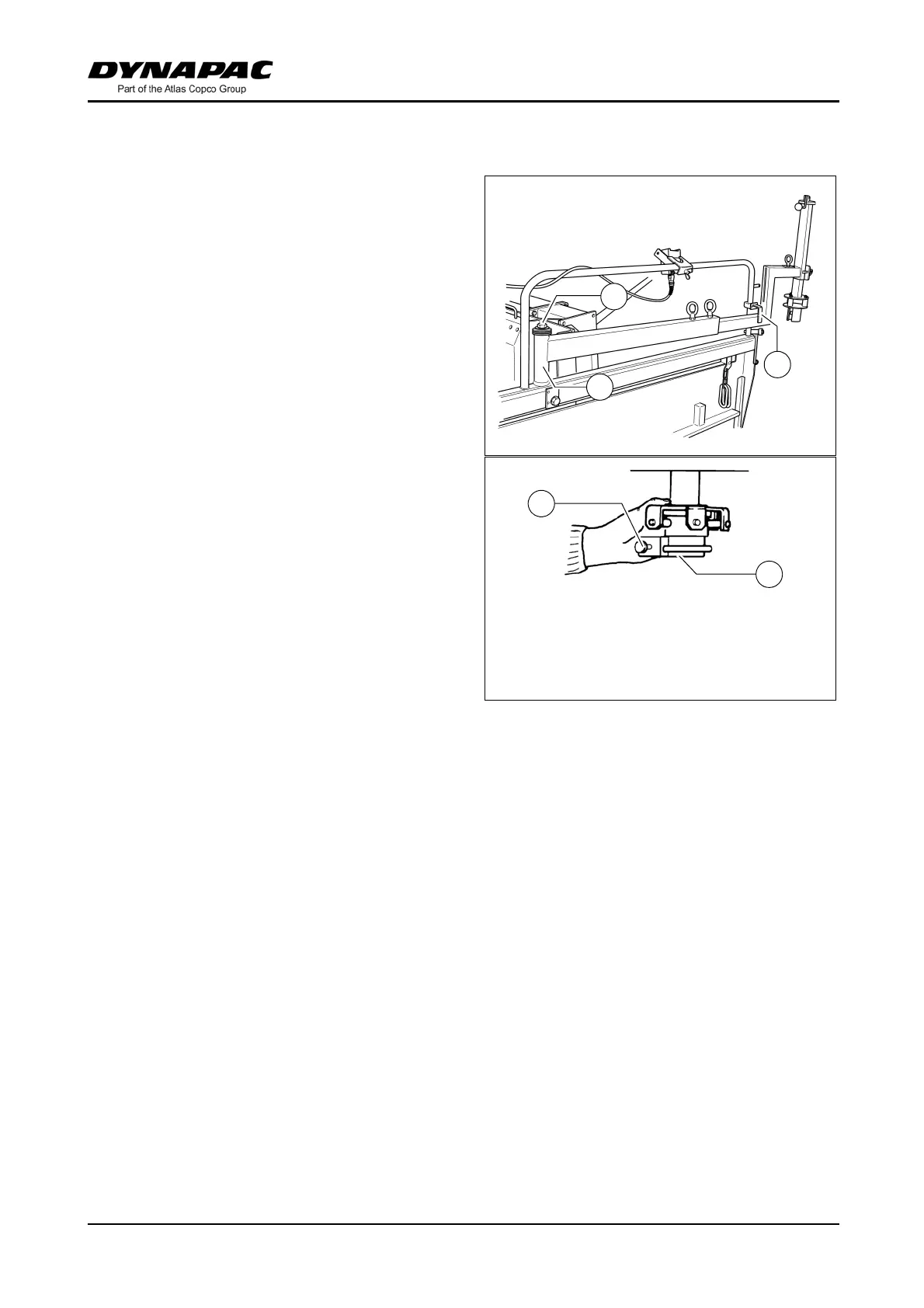

7.2 Mounting the sensor arm
- Position the sensor arm mounting (1)
on the corresponding journal of the
screed side board.
- Tighten the pin (2) so that the sensor
arm is just still able to swivel.
A
The sensor arm can be secured on the
side board with the lock (3).
7.3 Mounting the grade control system
Insert the grade control system into the
clamp bracket (1) and secure with the
clamping bolt (2) to prevent rotation.
Tastarm.wmf
3
2
1
F0258_A1.TIF/
1
2
