F 31 6

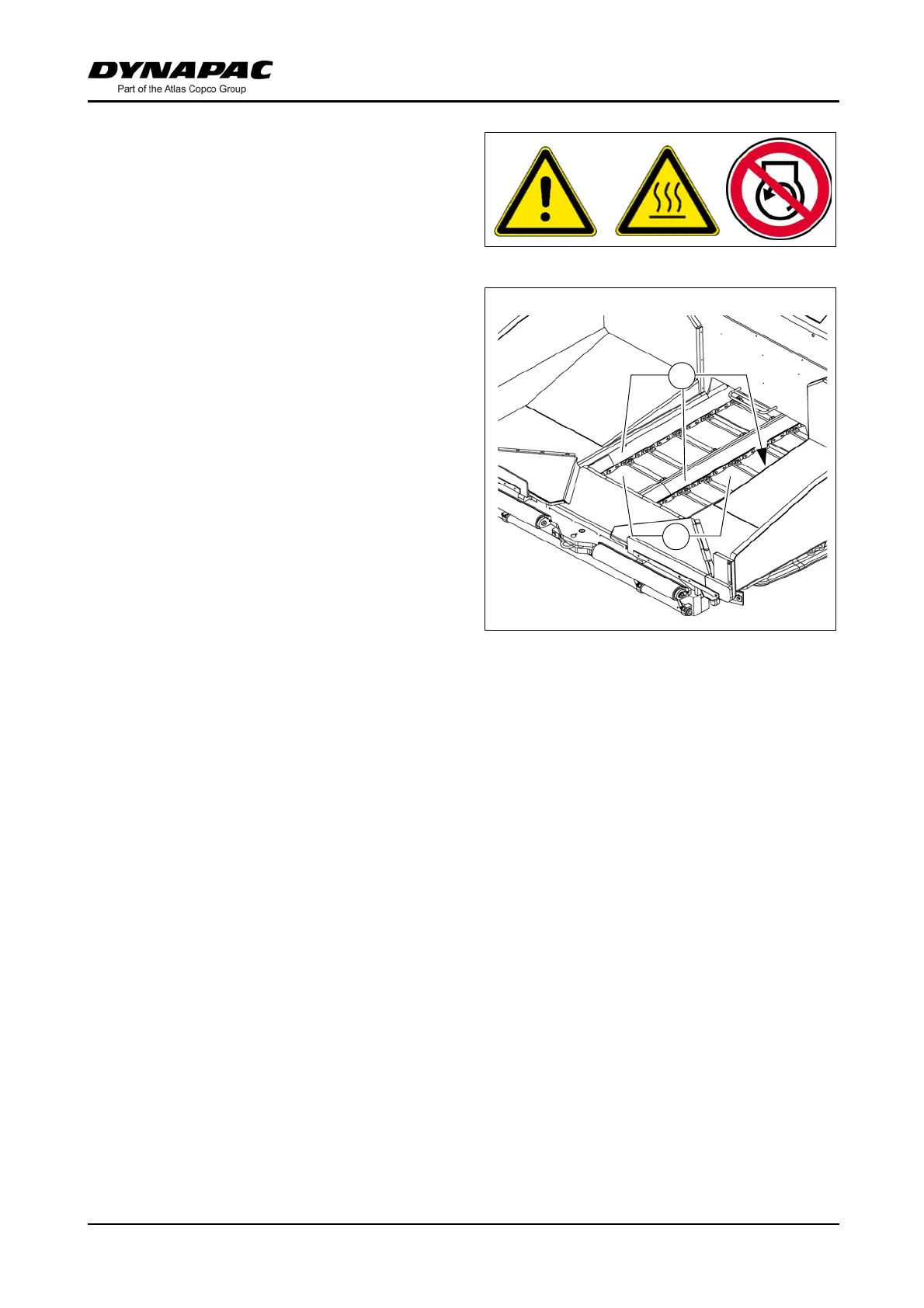

Conveyor deflectors /
conveyor plates (3)
A
At the latest, the conveyor deflectors (A)
must be replaced when their lower edg-
es are worn or reveal holes.
m
The conveyor chain is not offered pro-
tection by worn conveyor deflectors!
- Remove conveyor deflector bolts.
- Remove the conveyor deflectors from
the material tunnel.
- Install new conveyor deflectors with
new bolts.
A
At the latest, the conveyor plates (B)
must be replaced when the wear limit of
5 mm in the rear area beneath the chain
has been reached.
m
If components have to be replaced as a
result of wear, the following components
should always be replaced in sets:
- Conveyor chain
- Conveyor deflectors
- Conveyor plates
- Deflector plates
- Conveyor chain reversing rollers
- Conveyor drive chain sprockets
A
Your Dynapac customer service will be happy to provide support during maintenance,
repair and the replacement of wearing parts!
