Hopper transport safeguard
Before transporting or in order to park
the paver finisher, the hopper halves
must be swung upwards and the trans-
port safeguards for the hopper must be
inserted on both sides of the vehicle.

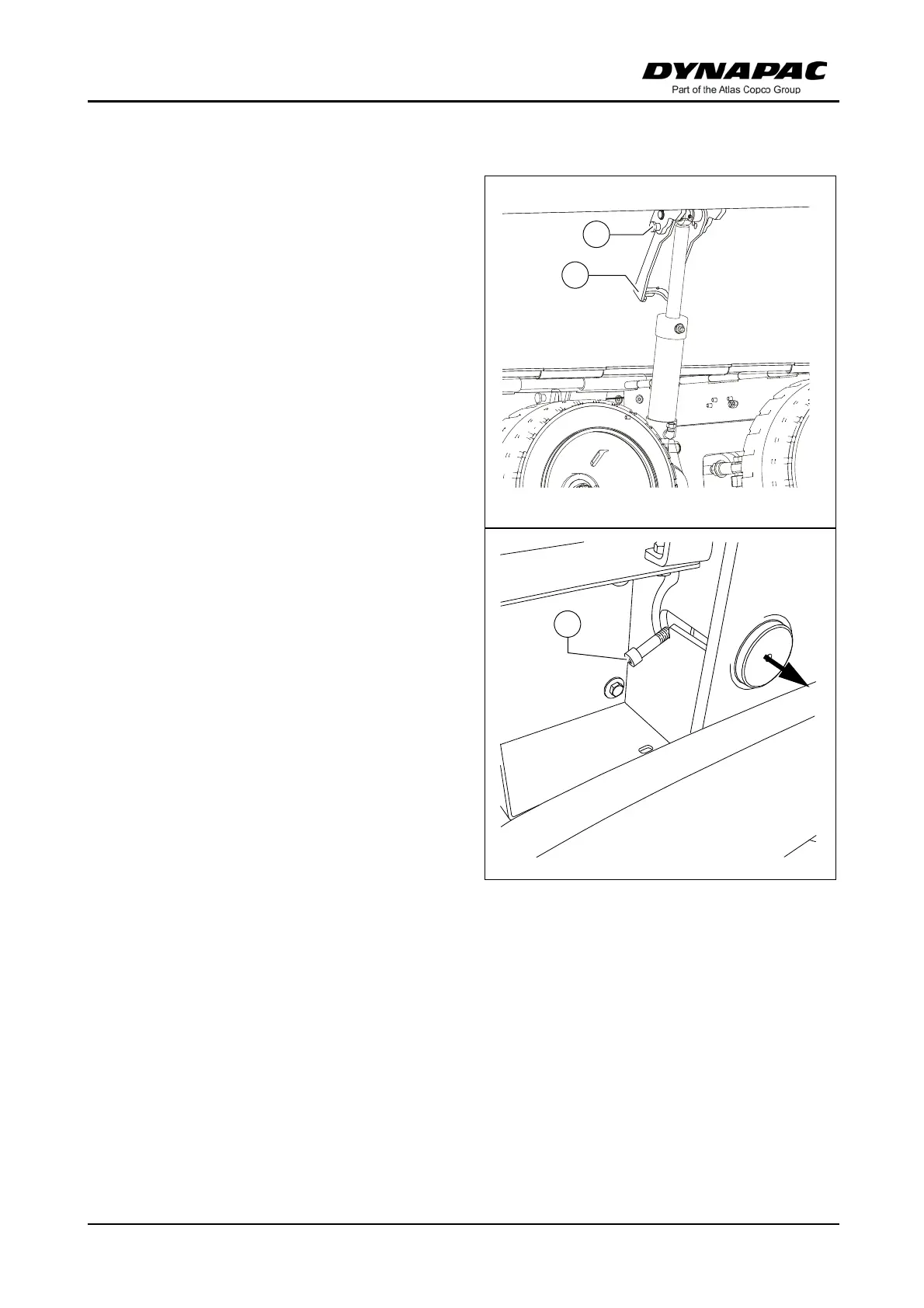

- Pull the locking pin (1) and place the
transport safeguard (2) above the
hopper cylinder's piston rod.
f
Without transport safeguards inserted,
the hopper halves will slowly open; dan-
ger during transportation!
Screed lock, mechanical (o)
A
The screed locks must additionally be
engaged on both sides of the vehicle pri-
or to transportation with the screed lifted.
f
Transportation with an unsecured
screed leads to a risk of accidents!
- Lift the screed.
- On both sides of the paver finisher,
slide the screed lock beneath the
crossbeams using the lever (1); place
the lever in the detent position.
m
ATTENTION!
Insert screed lock only at crown adjust-
ment "zero"!
Screed lock only for transportation!
Do not enter or work under screed only secured with screed lock for transportation!
Danger of accidents!
