Dynapac SD2500W - 4.2 Auger extension chart

E 13 13

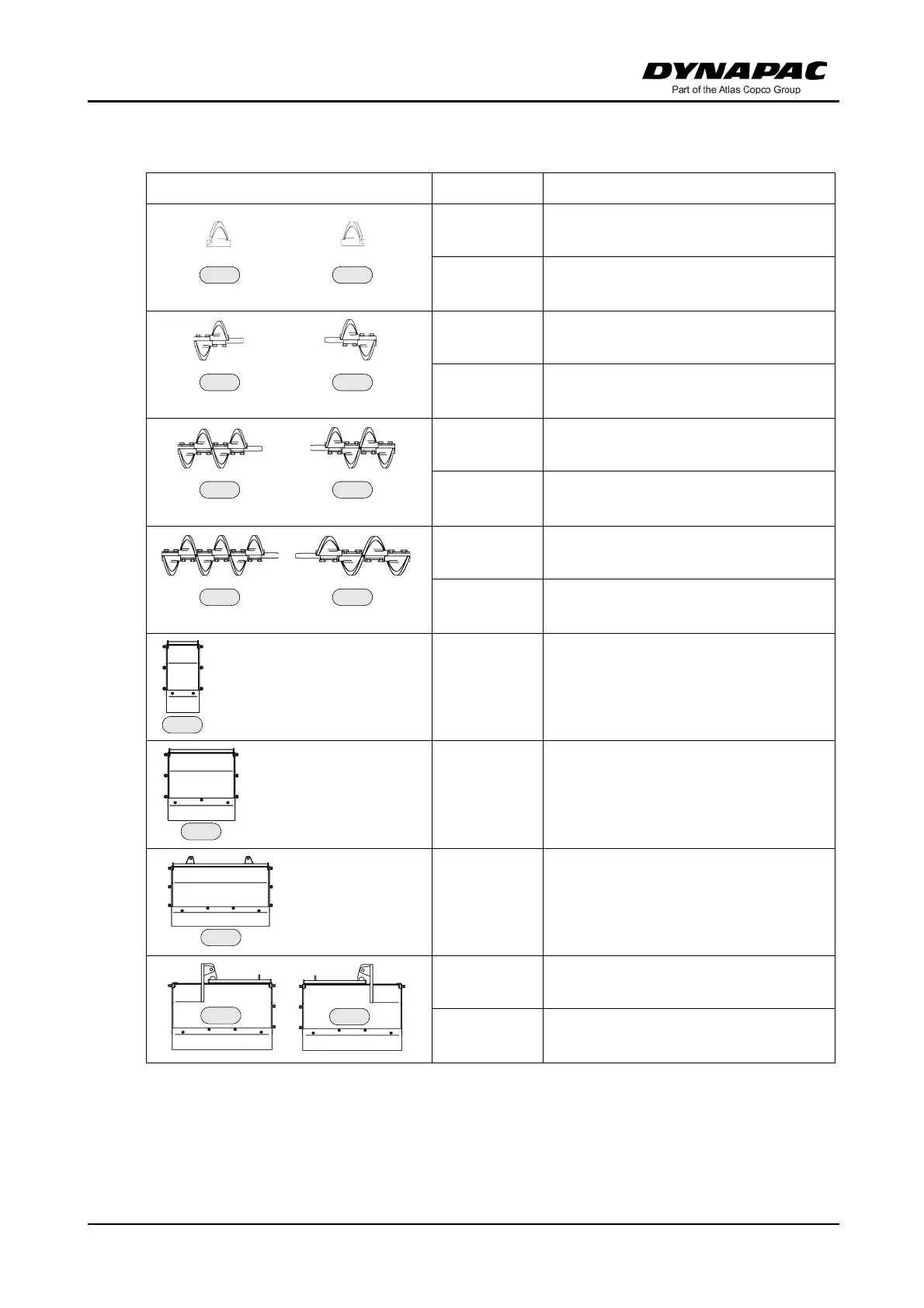

4.2 Auger extension chart
Symbol Meaning
- (160L)
- Auger blade 160 mm
left
- (160R)
- Auger blade 160 mm
right
- (320L)
- Auger extension part 320mm
left
- (320R)
- Auger extension part 320mm
right
- (640L)
- Auger extension part 640mm
right
- (640R)
- Auger extension part 640mm
right
- (960L)
- Auger extension part 960mm
left
- (960R)
- Auger extension part 960mm
right
- (320)
- Material shaft
320mm
- (640)
- Material shaft
640mm
- (960)
- Material shaft
960mm
- (960BL)
- Material shaft 960mm with
brace left
- (960BR)
- Material shaft 960mm with
brace right
160L 160R
320L 320R
640L 640R
960L 960R
320
640
960
960BL
960BR
