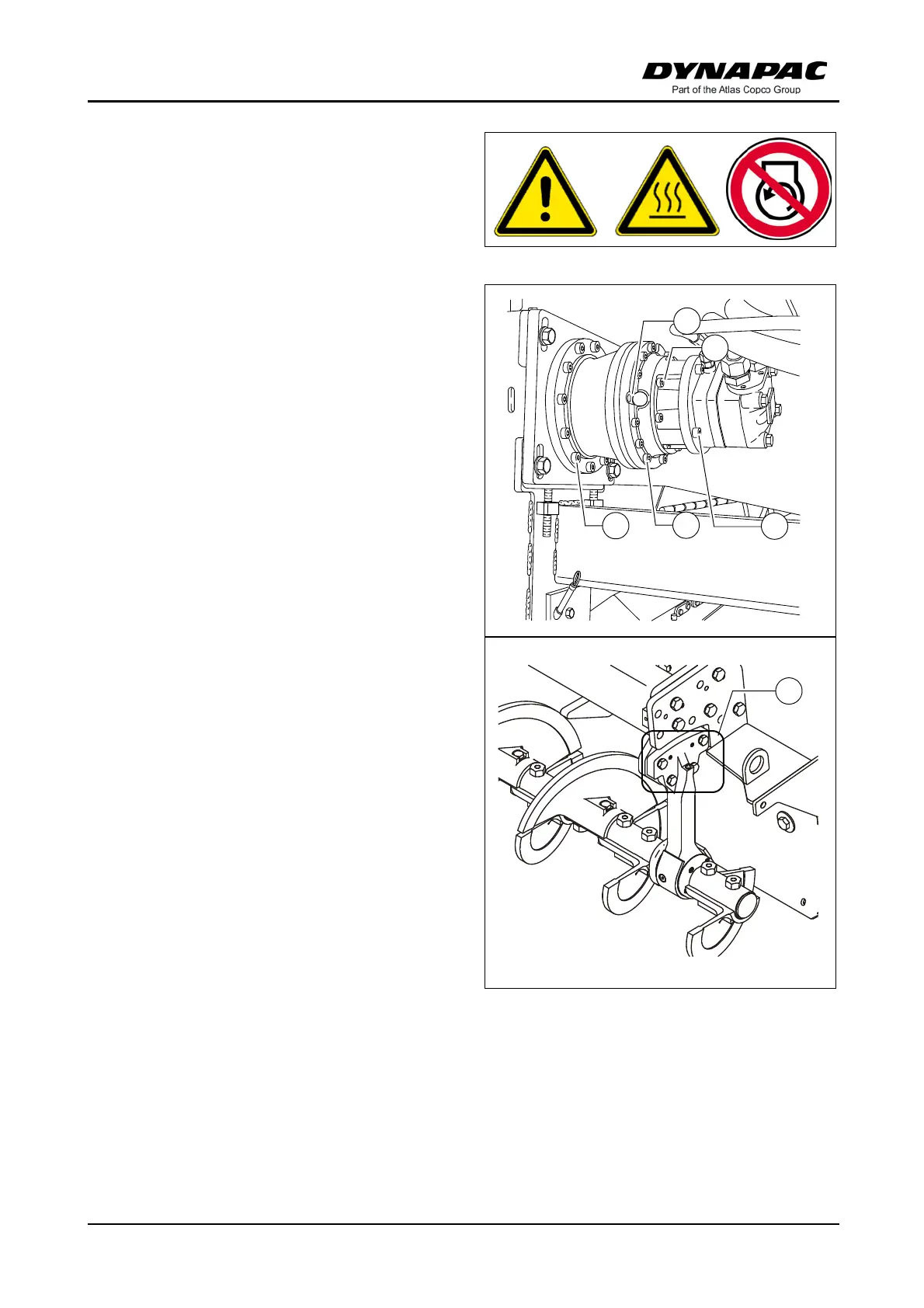

Dynapac SD2500W User Manual

F 40 9
Gearbox bolts
Check tightening (6)
m
Following the running-in period, the
tightening torques of the outer gearbox
bolts must be checked.
- Tighten to the following torques if nec-
essary:
- (A): 86 Nm
- (B): 83 Nm
- (C): 49 Nm
- (D): 49 Nm
- (E): 86 Nm
m
Check that each bolt has attained the full
tightening torque and note the corre-
sponding tightening pattern whilst doing
so!
Mounting screws -
Outer auger bearing
Check tightening (7)
m
Following the running-in period, the
tightening torques of the outer auger
bearing mounting screws must be
checked.
- Tighten to the following torques if nec-
essary:
- (F): 210 Nm
m
If the auger's working width is changed,
the tightening check must be repeated
after the running-in period!
A
E
B
C
D
C
