D 20 31

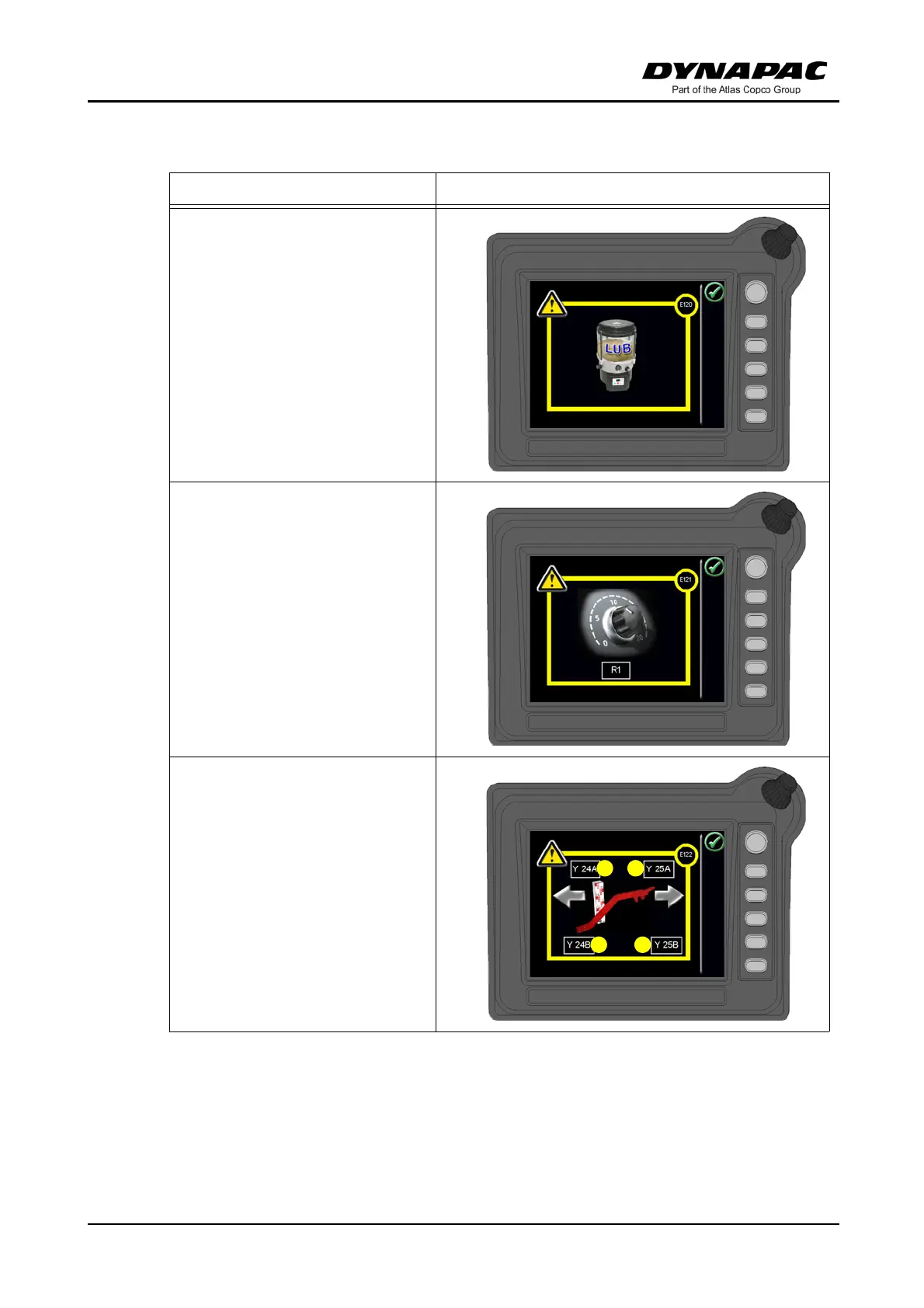

Error No. / meaning Display

Error message 120

- Error - central lubrication

system relay

Error message 121

- Error - road speed potenti-

ometer

Error message 122

- Levelling valves

Variable:

- Levelling

Lift left (1)

- Levelling

Lift right (2)

- Levelling

Lower left (3)

- Levelling

Lower right (4)

1 2

3 4
