Central lubrication system
Check filling level
A
The lubricant tank should always be
filled sufficiently to ensure that the sys-
tem does not "run dry", that adequate lu-
bricating point supply is ensured and
that time-consuming bleeding does not
become necessary.
- Always maintain a fill level above the
"MIN" mark (a) on the tank.
Top up lubricant tank

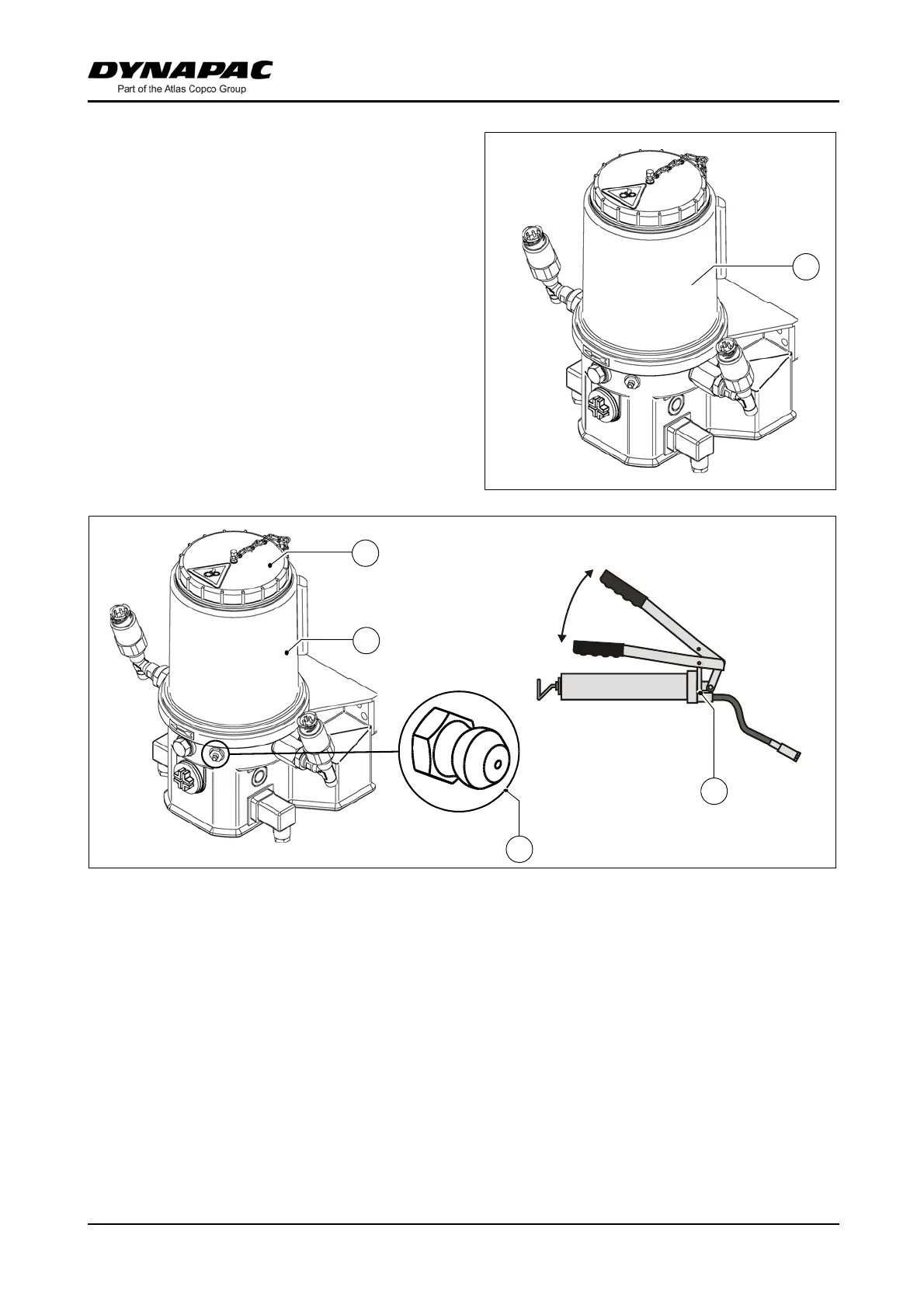

- A lubricating nipple (b) is located on the lubricant tank (a) for filling purposes.
- Connect the grease gun (c) enclosed on delivery to the filling nipple (b) and fill
the lubricant tank (a) up to the MAX mark.
- Alternatively, unscrew cover (d) and fill tank from above.
A
When the lubricant tank is completely empty, the pump may have to run for up to
10 minutes until the full delivery rate is achieved after filling.
