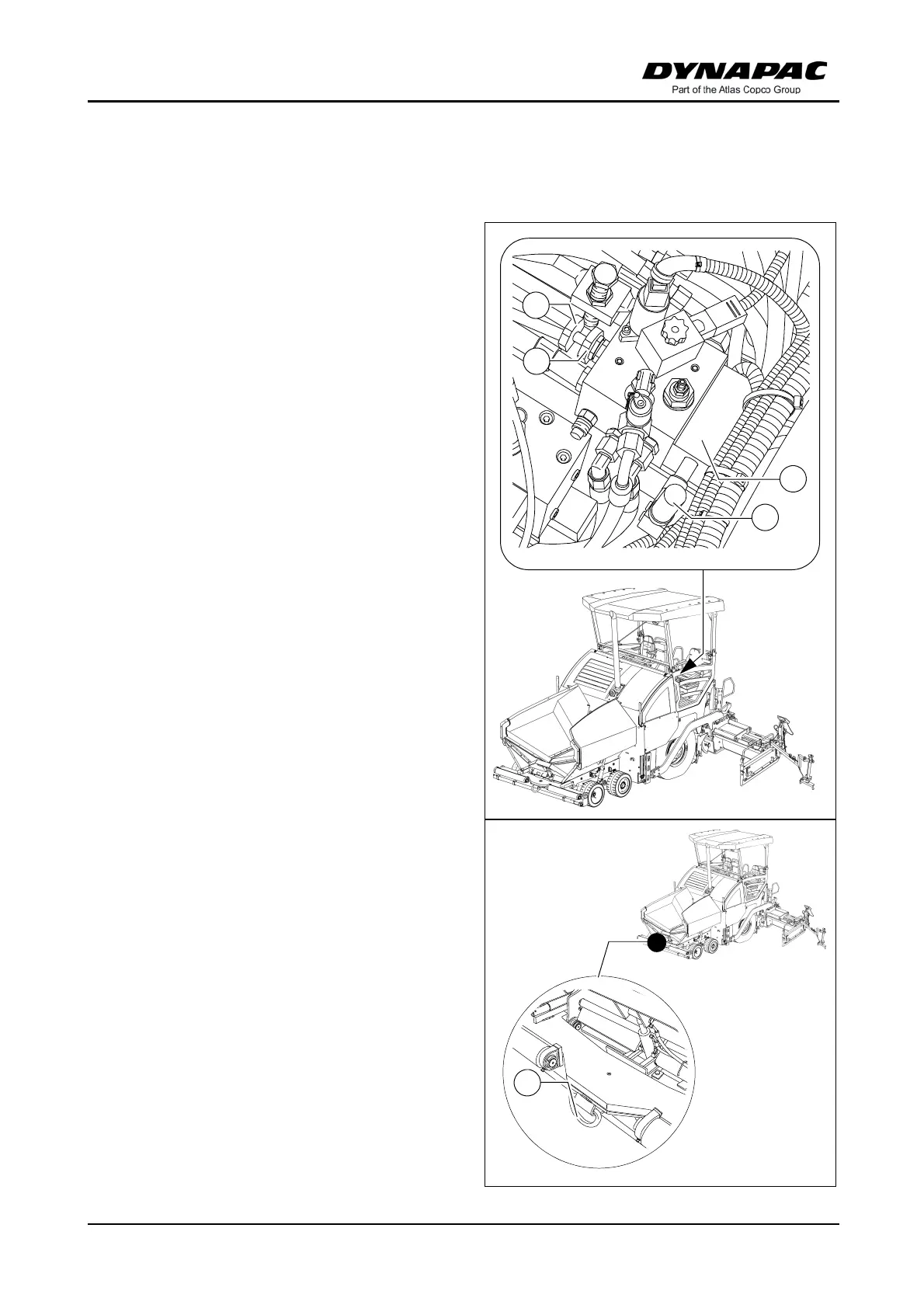

A hand pump (1) is located under the middle floor plate of the control platform; it must
be actuated to be able to tow the machine.
Pressure for releasing the traction system brakes is built up with the hand pump.
- Release lock nut (2), screw threaded
dowel (3) into pump as far as possible
and secure with lock nut.
- Actuate lever (4) of hand pump until
sufficient pressure has been built up
and traction system brakes have been
released.
- Attach the tow bar to the coupling (9)
located in the bumper.
A
Now carefully and slowly tow the paver
finisher out of
the construction area.
m
Only ever tow the shortest distance to
the means of transport or the next park-
ing possibility.
m
The max. permissible towing speed
is 10 m/min!
In hazardous situations, a towing speed
of 15 m/min is only permitted temporari-
ly.
m
The max. permissible towing eye (9)
load is: 200 kN
m
On completion of the towing process, re-
store the initial status.
m
Only release the traction system brakes
when the machine is sufficiently secured
against accidental rolling or is already
properly connected to the towing vehi-
cle.
3
2
4
1
9
