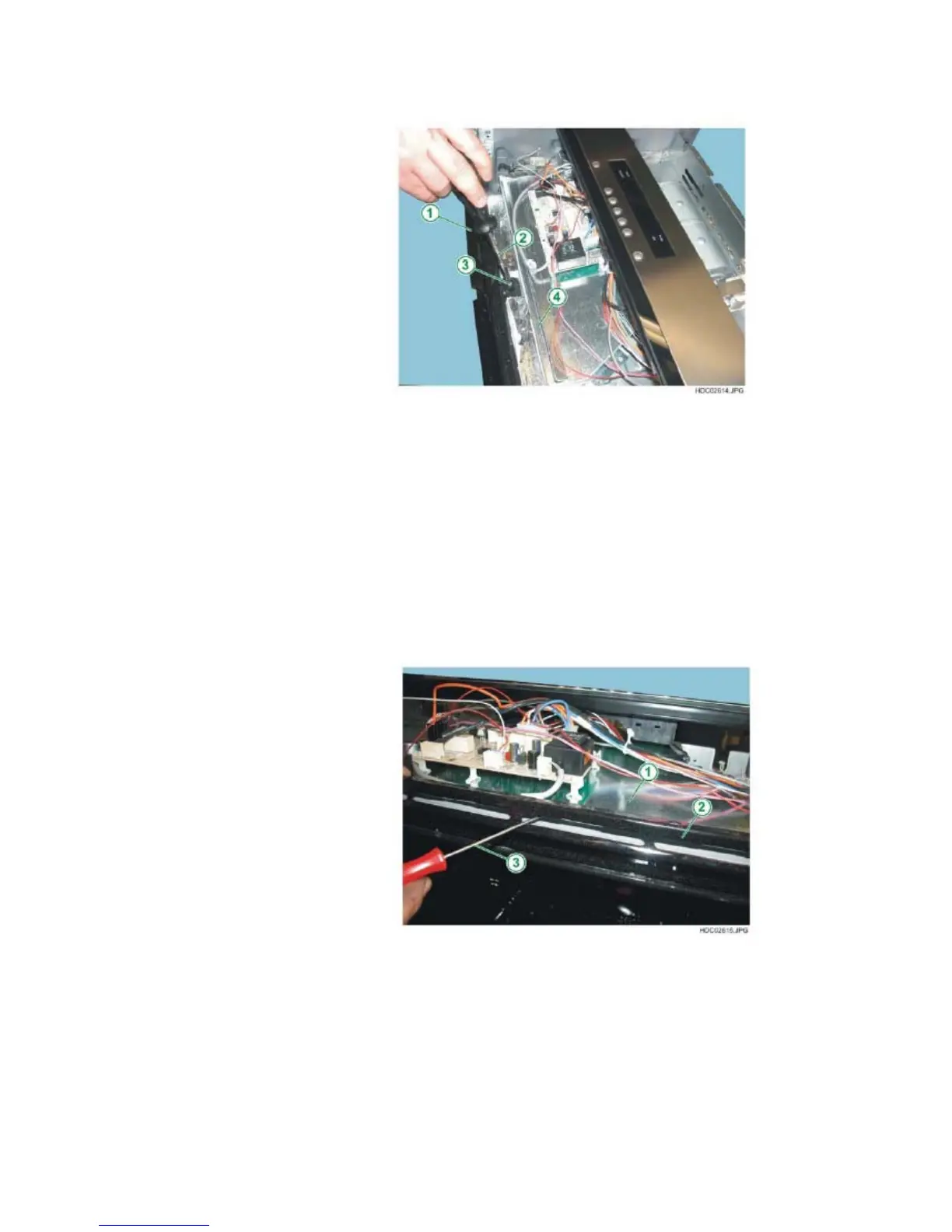

6 - Unfasten the front panel upper fixing screw (see Fig. 222).
Fig. 222
1 - OVEN FRONT PANEL
2 - TORX SCREWDRIVER
3 - UPPER FIXING SCREW
FOR FRONT PANEL
4 - FAN DEFLECTOR
7 - Remove the front panel.
To reposition the front panel:
1 - First position the upper part of the front panel
2 - Then insert the front panel completely
3 - First insert the external casing front fixing screws, followed by the oven liner fixing screws.
4 - Reposition the fan deflector, making sure you insert the front edge of the deflector into the
correct seat, with the aid of a Philips screwdriver if necessary (see Fig. 223).
5 - Replace the fixing screws on the fan deflector
IMPORTANT: Before inserting the fixing screws, move the front panel until the holes are aligned,
and if necessary raise the oven liner slightly.
Fig. 223
1 - FAN DEFLECTOR
2 - OVEN FRONT PANEL
3 - TORX SCREWDRIVER
