Electrolux Built-in ovens - 3 Steam Ovens; Removing the Tank + Steam Generator Assembly

SOI 02.10 FV 119/142 599 70 59-01
3 - STEAM OVENS
3.1 - REMOVING THE TANK + STEAM GENERATOR ASSEMBLY
To remove the tank + steam generator assembly:
1 - Remove the rear panel (see Fig. 246).

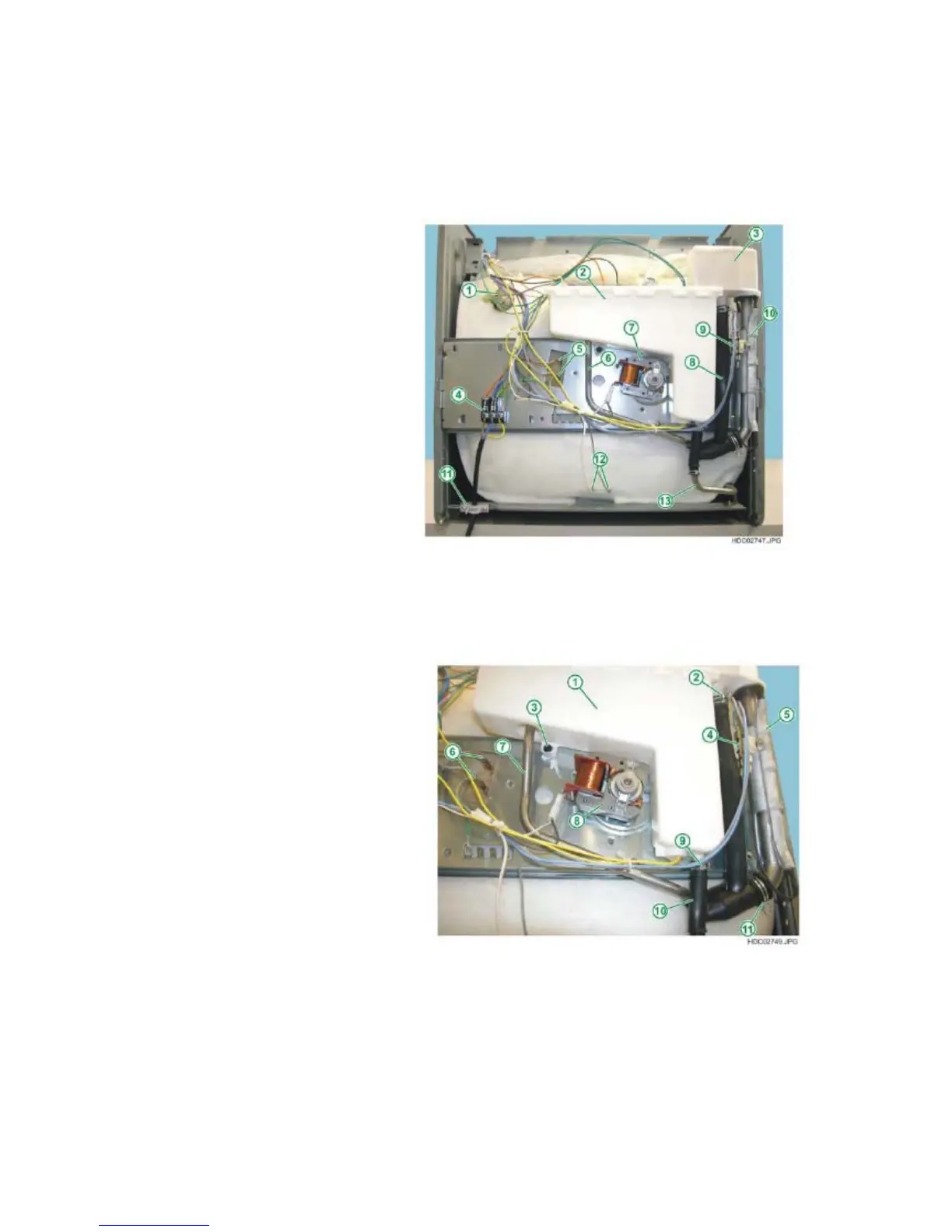

Fig. 246
1 - LAMPHOLDER
2 - WATER TANK
3 - EXPANSION CHAMBER
4 - TERMINAL BOARD
5 - ELECTRICAL CONTACTS
FOR CONVECTION HEATING
ELEMENT
6 - OVERFLOW PIPE
7 - CONVECTION FAN
8 - SILICONE CONNECTION FOR
TANK
9 - THERMOSTAT ASSEMBLY -
STEAM GENERATOR
10 - STEAM GENERATOR
11 - CABLE CLAMP
12 - ELECTRICAL CONTACTS
FOR BOTTOM HEATING
ELEMENT
13 - WATER DRAIN PIPE
2 - Unfasten the 2 tank assembly fixing screws (see Fig. 247 and 248).
Fig. 247
1 - WATER TANK
2 - FIXING CLAMP -
SILICONE CONNECTION -
EXPANSION CHAMBER
3 - TANK FIXING SCREW
4 - THERMOSTAT ASSEMBLY -
STEAM GENERATOR
5 - STEAM GENERATOR
6 - ELECTRICAL CONTACTS
FOR CONVECTION HEATING
ELEMENT
7 - OVERFLOW PIPE
8 - CONVECTION FAN MOTOR
9 - FIXING CLAMP -
SILICONE CONNECTION -
TANK
10 - SILICONE CONNECTION -
11 - FIXING CLAMP -
SILICONE CONNECTION -
STEAM GENERATOR
