2.6.2 - UPPER PANEL (control components and boards)
Once the upper panel has been removed, the following components are accessible:
- In the electromechanical version, the control components (oven thermostat, function
selector, energy regulators, indicator lights, etc.)
- In the electronic version, the electronic boards (Control Unit and power board) and the
control components.
2.6.2.1 - NORMAL ELECTROMECHANICAL VERSION

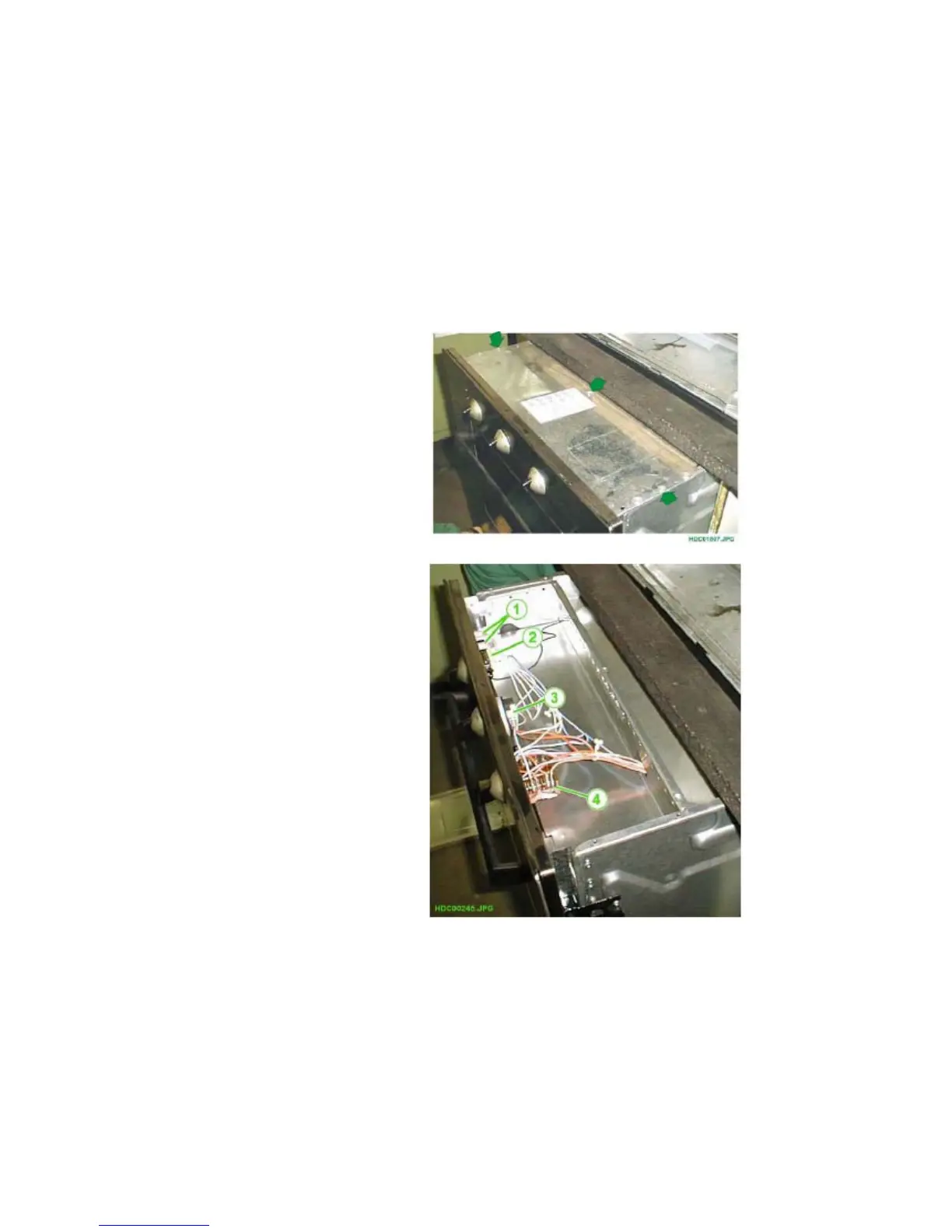

1 - Unfasten the 3 fixing screws on the upper panel
Fig. 81
Upper panel fixing screws
Fig. 82
1 - INDICATOR LIGHTS
2 - OVEN THERMOSTAT
3 - END-OF-COOKING
PROGRAMMER
4 - FUNCTION SELECTOR
N.B.: From January 2010 (serial number 001….) access to the top of the oven
has improved thanks to the progressive introduction of a new one-piece top oven
cover (see chapter 2.6.1).
