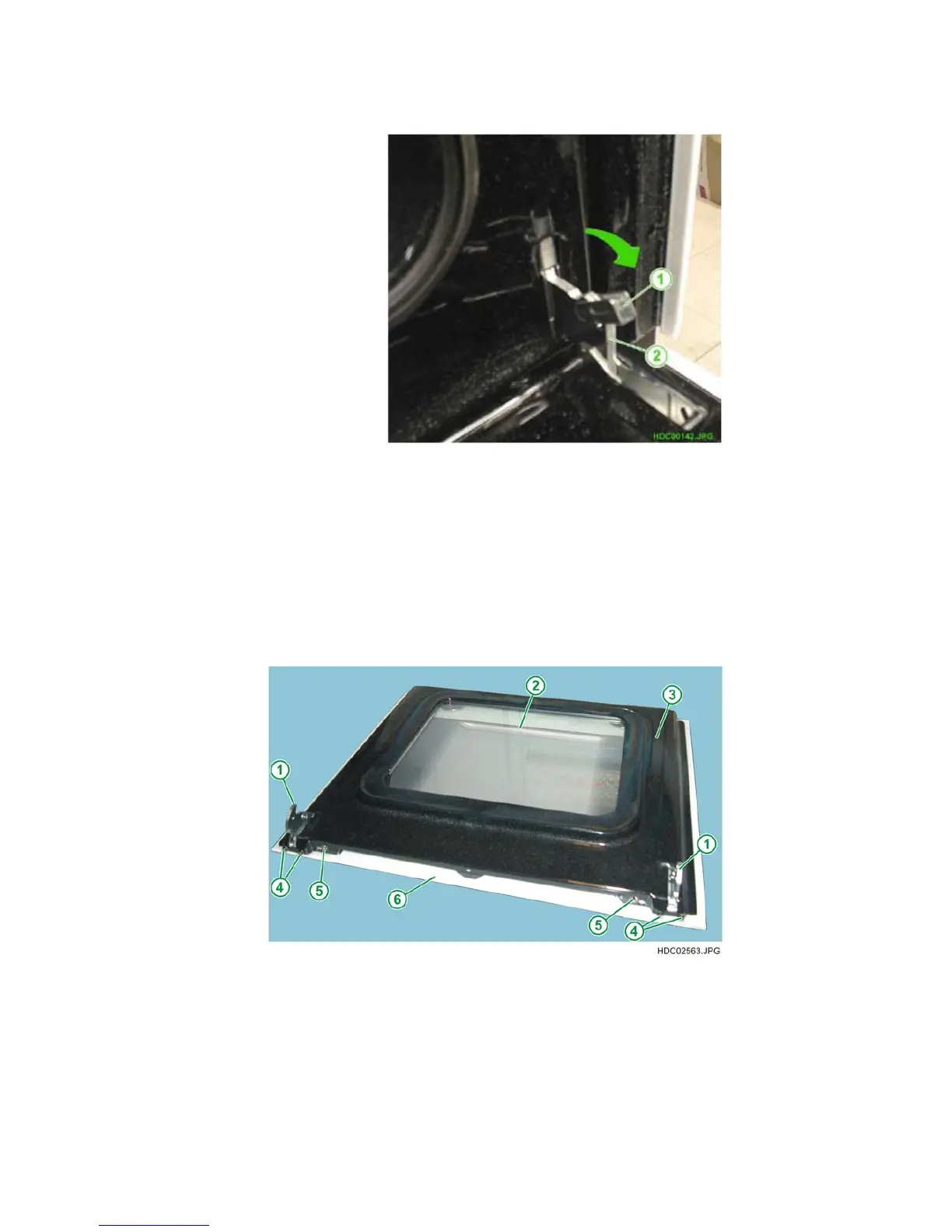

Fig. 148
1 - HINGE RETAINER
FOR HINGE (IN LOCKED
POSITION)
2 - OVEN HINGE
N.B.: When repositioning the door, before you close it, make sure you
raise the hooks completely to their original position (see Fig. 146).
2.9.1 - REMOVING THE "METAL-GLASS" PYRO DOOR EXTERNAL GLASS
Once you have removed the oven door:
1 - Remove the two screws on the lower part of the inner door (see Fig. 149 Pos. 5).
2 - Slide the glass off from the top of the door to release it from the metal fixing
supports.
Fig. 149
1 - OVEN DOOR HINGES
2 - DOOR INTERNAL GLASS
3 - INNER DOOR
4 - HINGE FIXING SCREWS
5 - EXTERNAL GLASS FIXING SCREWS
6 - DOOR EXTERNAL GLASS
