2.6.2.4 - ELECTRONIC PYRO VERSION

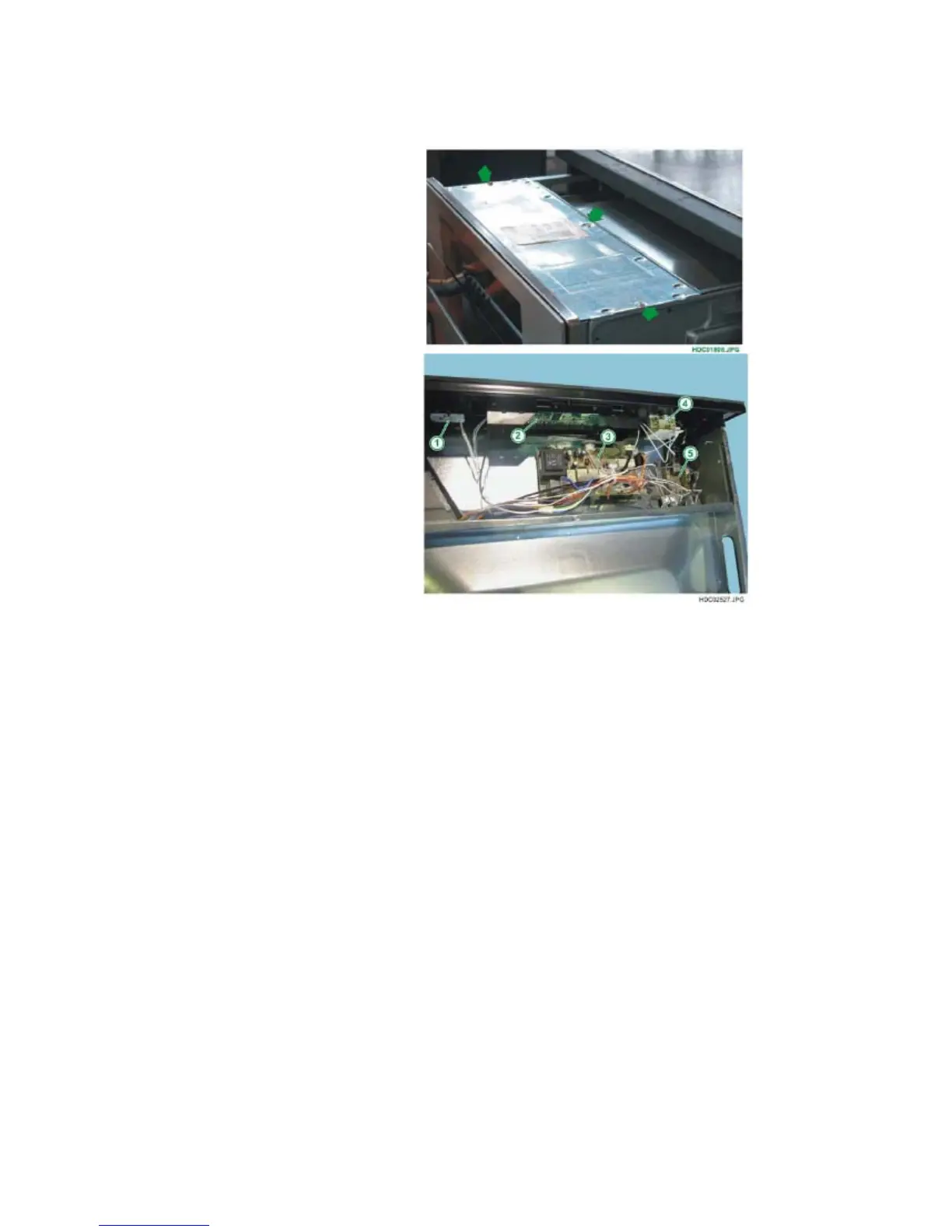

1 - Unfasten the fixing screws on the upper panel
Fig. 88
Upper panel fixing screws
Fig. 89
1 - TEMPERATURE
CONTROL POTENTIOMETER
2 - KRONOS CONTROL
UNIT
3 - OVC1000 POWER BOARD
4 - FUNCTION SELECTOR
5 - DOOR LOCK
When removing an electronic board:
1 - Detach the connection wires, marking their position
2 - Release the board from the plastic supports (see Fig. 87) for the
OVC1000 version, or remove the fixing screws for the OVC2000 version.
3 - Remove the board.
N.B.: From January 2010 (serial number 001….) access to the top of the oven
has improved thanks to the progressive introduction of a new one-piece top oven
cover (see chapter 2.6.1).
