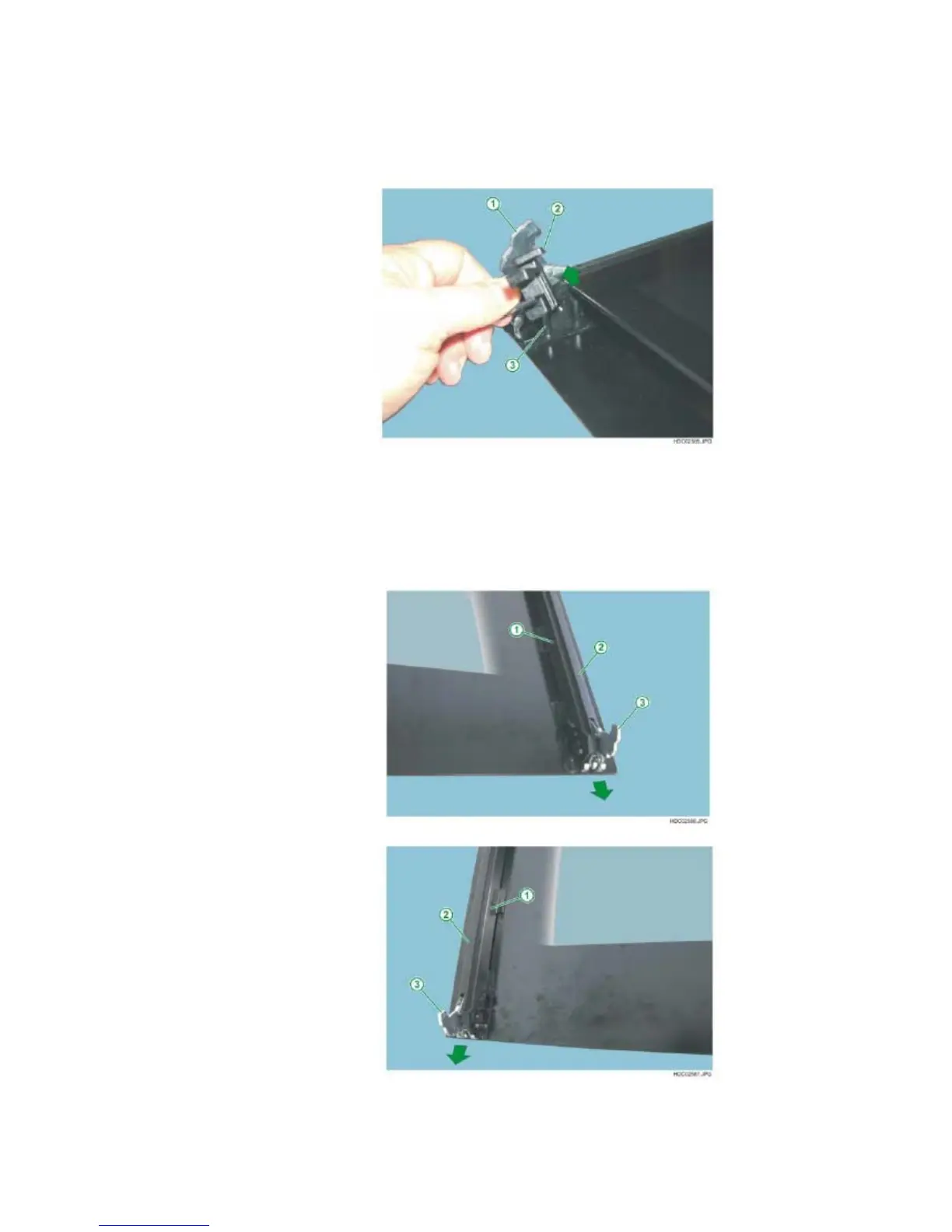

2.10.3 - REMOVING THE GLASS RETAINER HOOKS ON "PLASTIC" OVEN DOOR
To remove the retainer hooks, simply slide them off the related rotation pins (see Fig. 176).
Fig. 176
1 - DOOR HINGE
2 - RETAINER HOOK
3 - ROTATION PIN
FOR HOOK
2.10.4 - REMOVING THE "PLASTIC" OVEN DOOR HINGES
Once you have removed the internal glass from the door, you can access the door hinges.
To remove the door hinges, simply unscrew the respective fixing screws on the inside of the
uprights (see Fig. 177 and 178).
Fig. 177
1 - LEFT HINGE
FIXING SCREW
2 - LEFT UPRIGHT
3 - LEFT HINGE
Fig. 178
1 - RIGHT HINGE
FIXING SCREW
2 - RIGHT UPRIGHT
3 - RIGHT HINGE
