SOI 02.10 FV 118/142 599 70 59-01
2.17.9 - REMOVING THE IGNITION MICRO ASSEMBLY
To remove the ignition micro switch assembly:
1 - Remove the hob assembly from the oven (see Chapter 2.17.7).
2 - Release the various micro switches from the related cock using a Philips screwdriver
(see Fig. 245).
3 - Detach the the connection wires from the micro assembly.

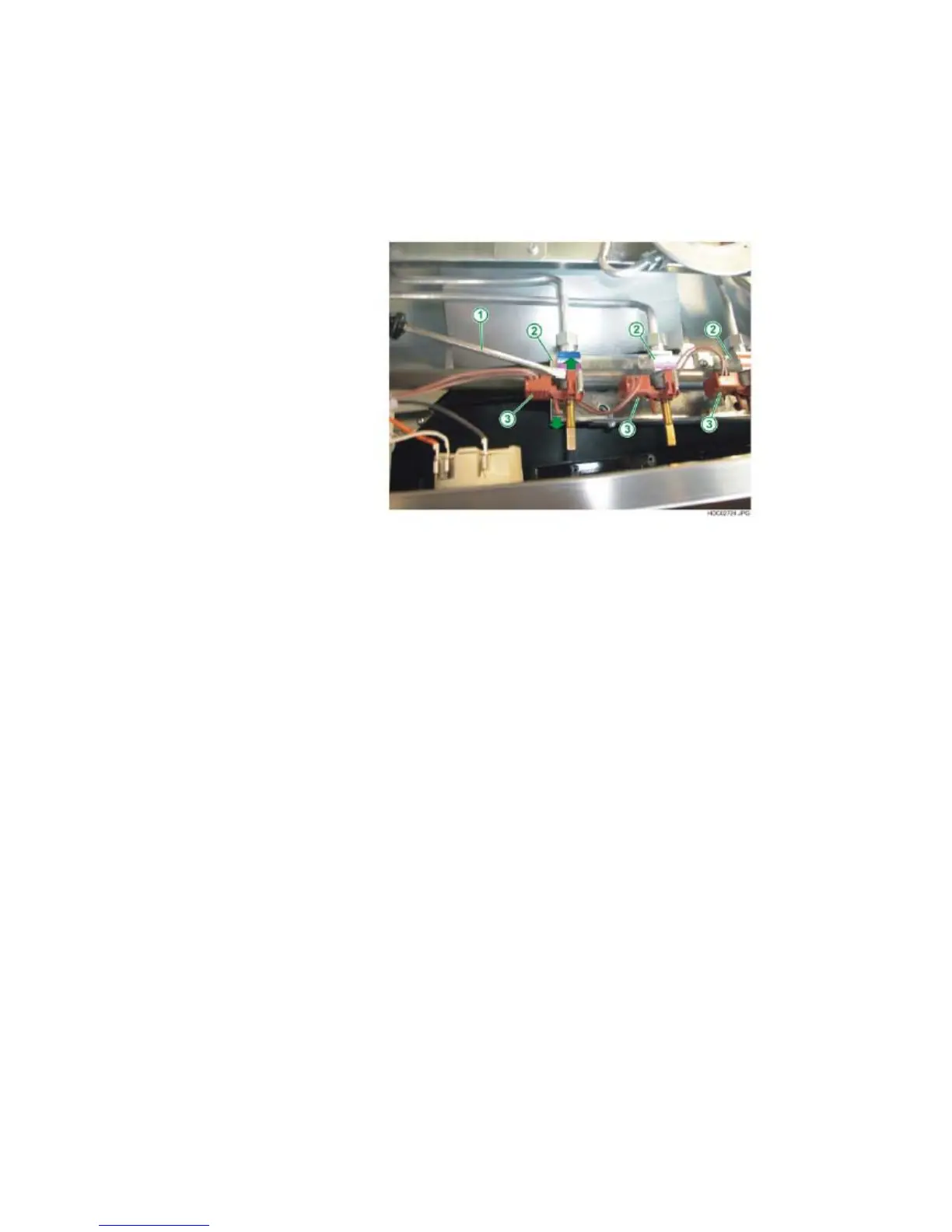

Fig. 245
1 - PHILIPS SCREWDRIVER
2 - COCK
3 - IGNITION MICRO SWITCH
