3.2 - REMOVING THE “REED” LEVEL INDICATOR SWITCHES
To remove the REED switch assembly:
1 - Remove the rear panel to access the "Full" and "Empty" indicator REEDs
(see Fig. 253 and 254).

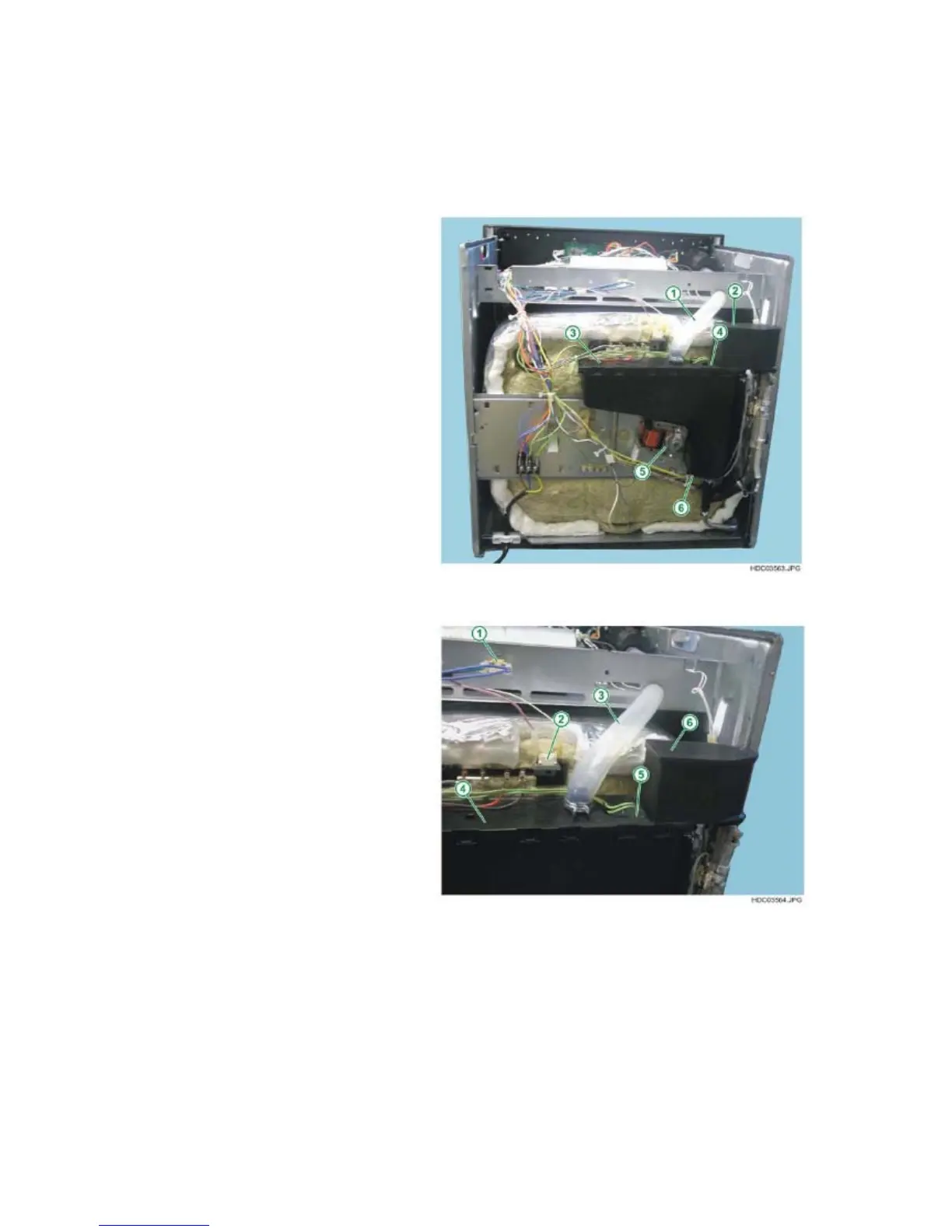

Fig. 253
1 - WATER FILL PIPE
2 - EXPANSION CHAMBER
3 - WATER TANK
4 - “REED” SWITCH
FULL INDICATION
5 - CONVECTION FAN MOTOR
6 - “REED” SWITCH EMPTY
INDICATION
Fig. 254
1 - DOOR LOCK THERMOSTAT (*)
2 - FAN THERMOSTAT (*)
3 - WATER FILL PIPE
4 - WATER TANK
5 - “REED” SWITCH FULL
INDICATION
6 - EXPANSION CHAMBER
(*) N.B.: ONLY FEATURED IN
PYROLYTIC MODELS
